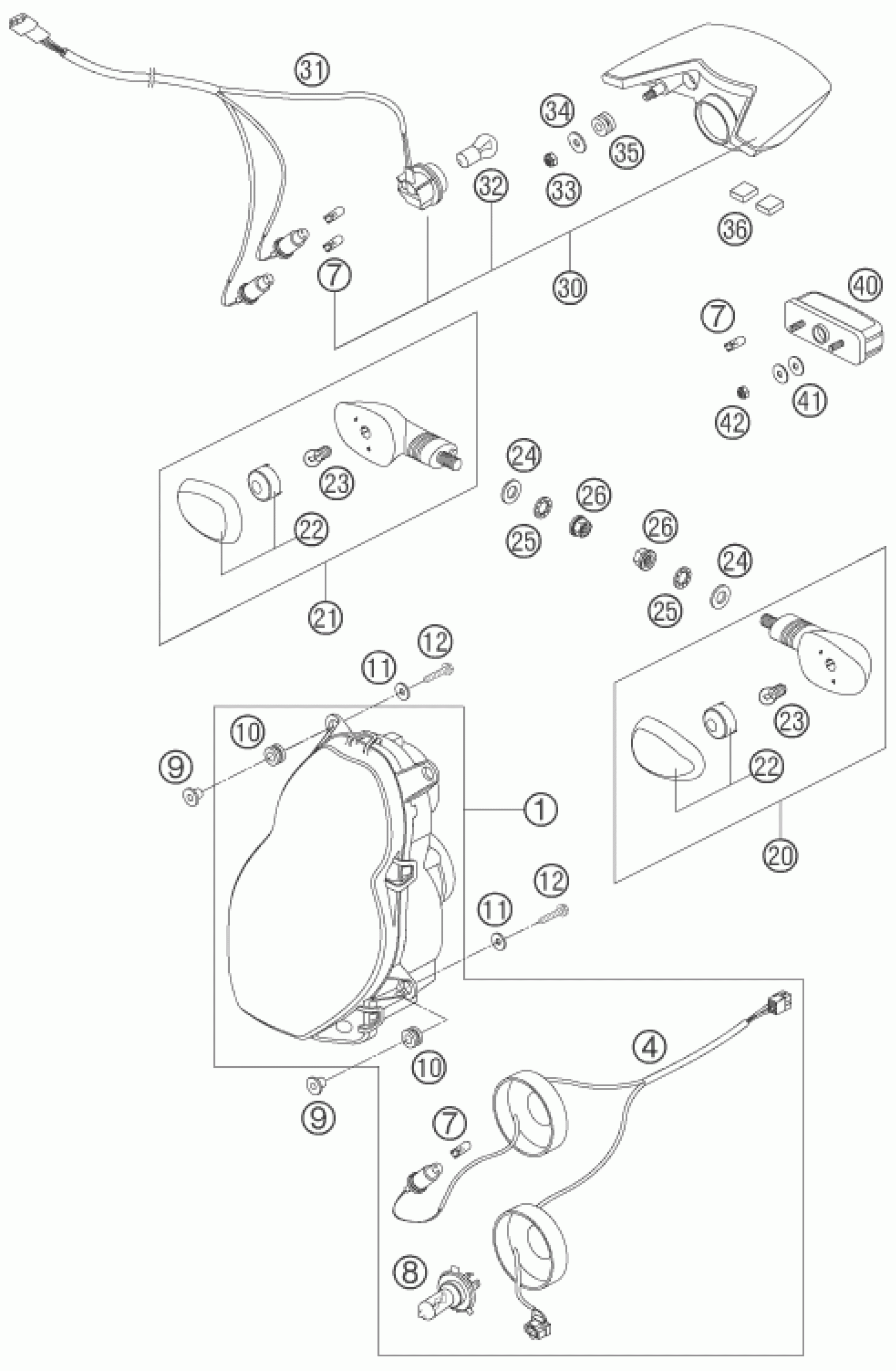

KTM 950 ADVENTURE BLACK 2006 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT RIGHT TR. USA 03

60014801000

$241.41

4

HEAD LIGHT WIRING HARN. USA

60014801050

$40.48

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

8

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

9

SPACER BUSHING HEAD LIGHT 03

60014007000

$3.08

10

RUBBER GROMMIT BLACK

31008008000

$2.05

11

washer DIN 9021 A - 5.3

0021050003

$1.49

12

SCREW FOR PLASTIC 03

0016050253

$1.49

20

FLASHER CPL.FRONT L/S REAR R/S

58414025100

$29.30

21

FLASHER CPL.FRONT R/S REAR L/S

58414026100

$29.03

22

FLASHER LENS L/S & R/S 02

58414028100

$6.63

23

BULB 12V 10W (BA15S)

44111015100

$3.08

24

washer DIN 125 A 10.5

0125100003

$2.05

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

30

REAR LIGHT CPL. 03

60014040000

$126.78

31

WIRING HARNESS REAR LIGHT 05

60011077000

$28.31

32

BULB 12V 21W

60014048000

$5.23

33

Self lock. nut DIN985-M6-A2

0985060003

$2.05

34

Washer DIN9021-A 6.4

0021060003

$2.05

35

rubber grommet 16x10.8x3

58214069051

$5.23

36

BUMP RUBBER 20X20X6 MM 03

60014040050

$3.08

40

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

41

washer DIN 9021 A - 5.3

0021050003

$1.49

42

Self locking nut DIN 985 M5

0985050003

$2.05
