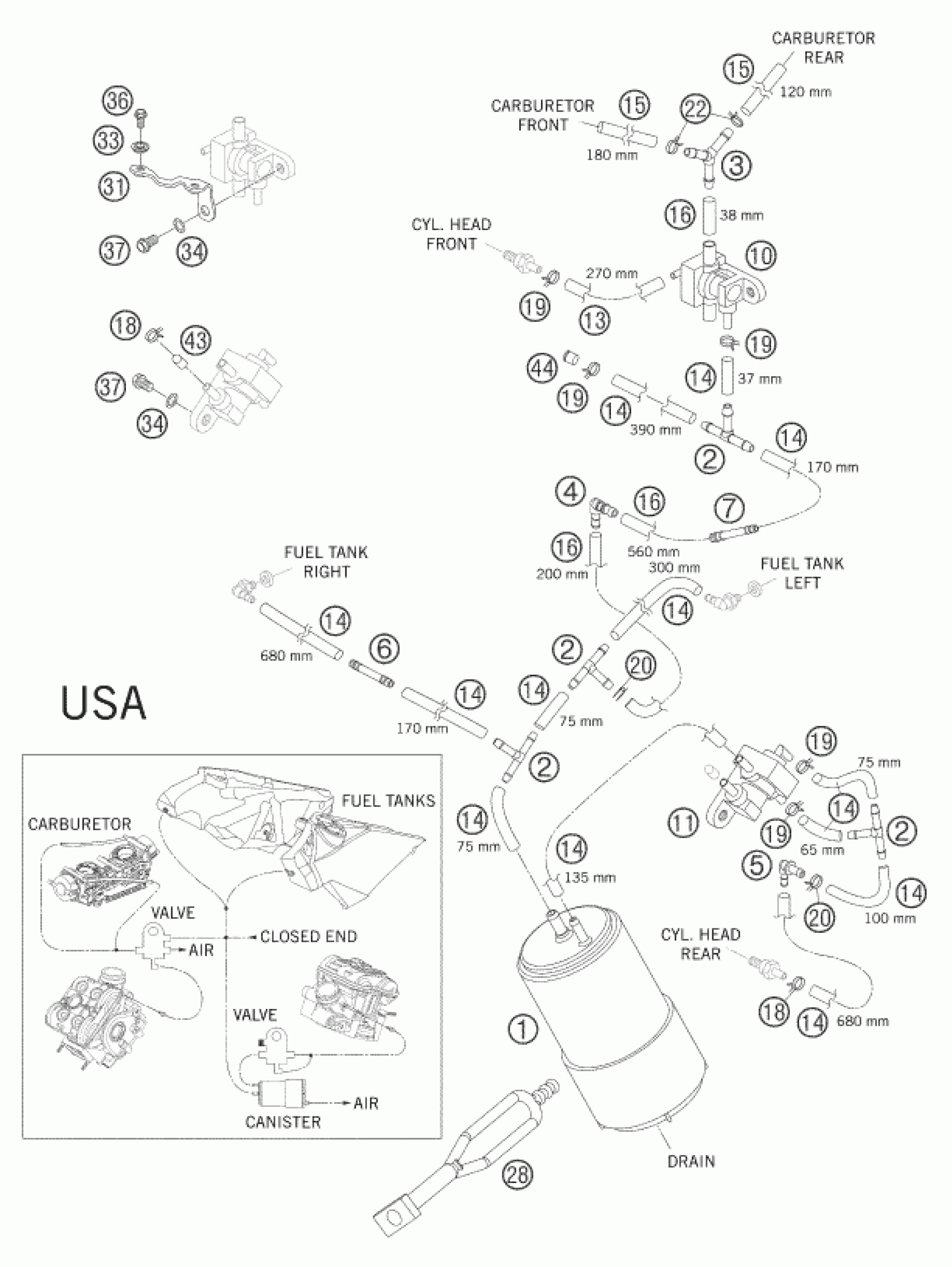

KTM 950 ADVENTURE BLACK 2006 EVAPORATIVE CANISTER Diagram

#

Description
Price

22

CLAMP YDNAC 10128 12MM

58031005000

$3.08

19

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

28

RUBBER L=145MM

50303018000

$6.44

31

BRACKET FOR EVAP-VALVE

60015011000

Unavailable

33

BUSHING EVAP-VALVE 04

60015013000

Unavailable

34

LOCK WASHER 8MM

36003014000

$2.05

1

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

2

T-connector TS-6 03

60015022000

$5.98

3

Y-CONNECTING PIECE YS 6-8-6 04

60015025000

$5.30

4

ANGLE CONNECTION WS8 04

60015024000

$12.33

5

Angle piece, reservoir

60035068000

$3.08

18

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49

6

HOSE CONNECTOR GS6 03

60015021000

$5.23

7

REDUCTION CONNECTION GRS8-6 04

60015023000

$11.68

10

VALVE MIKUNI CI-41-04

60015030000

$132.93

11

VALVE MIKUNI CI-41-05

60015031000

$134.78

13

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

14

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

20

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

36

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

37

HH COLLAR SCREW M 8X10 WS=10

0015080103

$3.08

43

COVER CAP EVAP.CANIST.VALVE 04

60015033000

$1.49

44

PLUG FOR EVAP.CANISTER SYST.04

60015034000

Unavailable

15

HOSE 6X12 PER METER

60007116001

Unavailable

16

HOSE NBR 7X11 PER METER

60015019001

Unavailable
