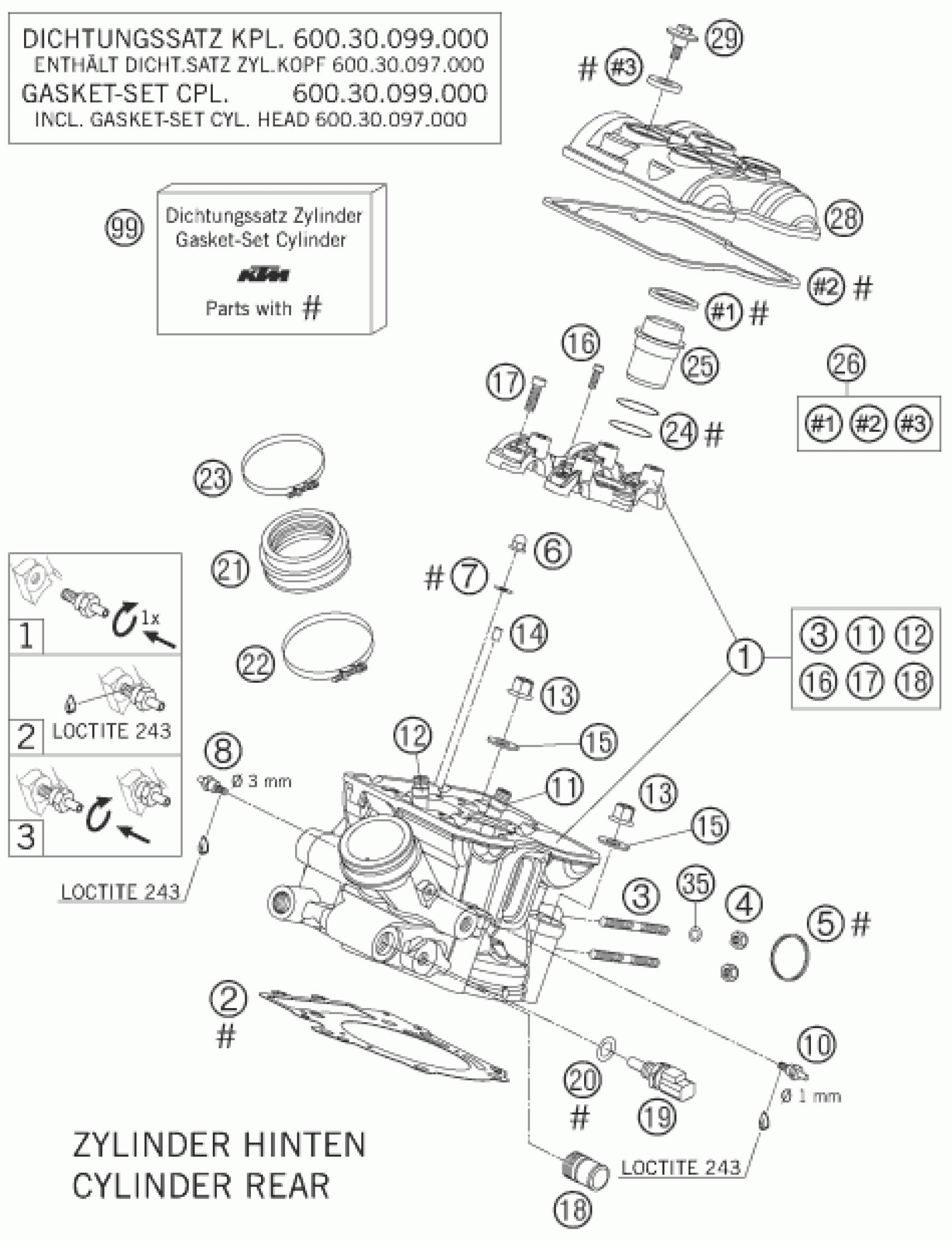

KTM 950 ADVENTURE BLACK 2006 CYLINDER HEAD REAR Diagram

#

Description
Price

3

STUD M 8X16 10.9

0835080165

$3.08

4

self-locking nut M8 Cu

51010086100

$3.08

1

CYLIDNER HEAD CPL. REAR 03

60036120044

$605.76

2

CYLINDER HEAD GASKET 0,5 101MM

60030036000

$53.57

6

CAP NUT M6 DIN1587 02

0587060000

$2.05

5

GASKET 03

60005005000

$8.41

7

WASHER DIN0125-A 6,4

0125060003

$1.49

8

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

10

VACUUM CONECT. M6/1MM M-GROOVE

60036023000

$21.32

11

VALVE GUIDE EXHAUST 03

60036026000

$29.07

12

VALVE GUIDE INTAKE 03

60036025000

$11.40

13

hex collar nut M10 WS13

60036078200

$3.08

14

needle roller DIN 5402 5x9.8

0402050980

$1.49

15

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

16

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

17

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

18

HOSE CONNECTOR M20X1,5 SPLICE

58030010100

$8.87

19

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

20

o-ring 10.00x2.00 silicone

0770100020

$2.05

21

INTAKE BOOT 03

60036044000

$41.60

22

HOSE CLAMP GEMI 62 MM 03

60036047100

$10.46

23

HOSE CLAMP GEMI 56MM 03

59030061100

$5.51

24

O-RING 29,87X1,78 VITON

0770298178

$2.05

25

INSERT SPARK-PLUG SHAFT LC8 03

60036075000

$21.03

26

VALVE COVER GASKET SET FR+RR

60036099000

$32.44

28

VALVE COVER REAR 03

60036152000

Unavailable

29

collar screw M 6 WS=10 03

60036052020

$3.08

35

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

99

GASKET SET CYL. HEAD KPL. 03

60030097000

$283.20
