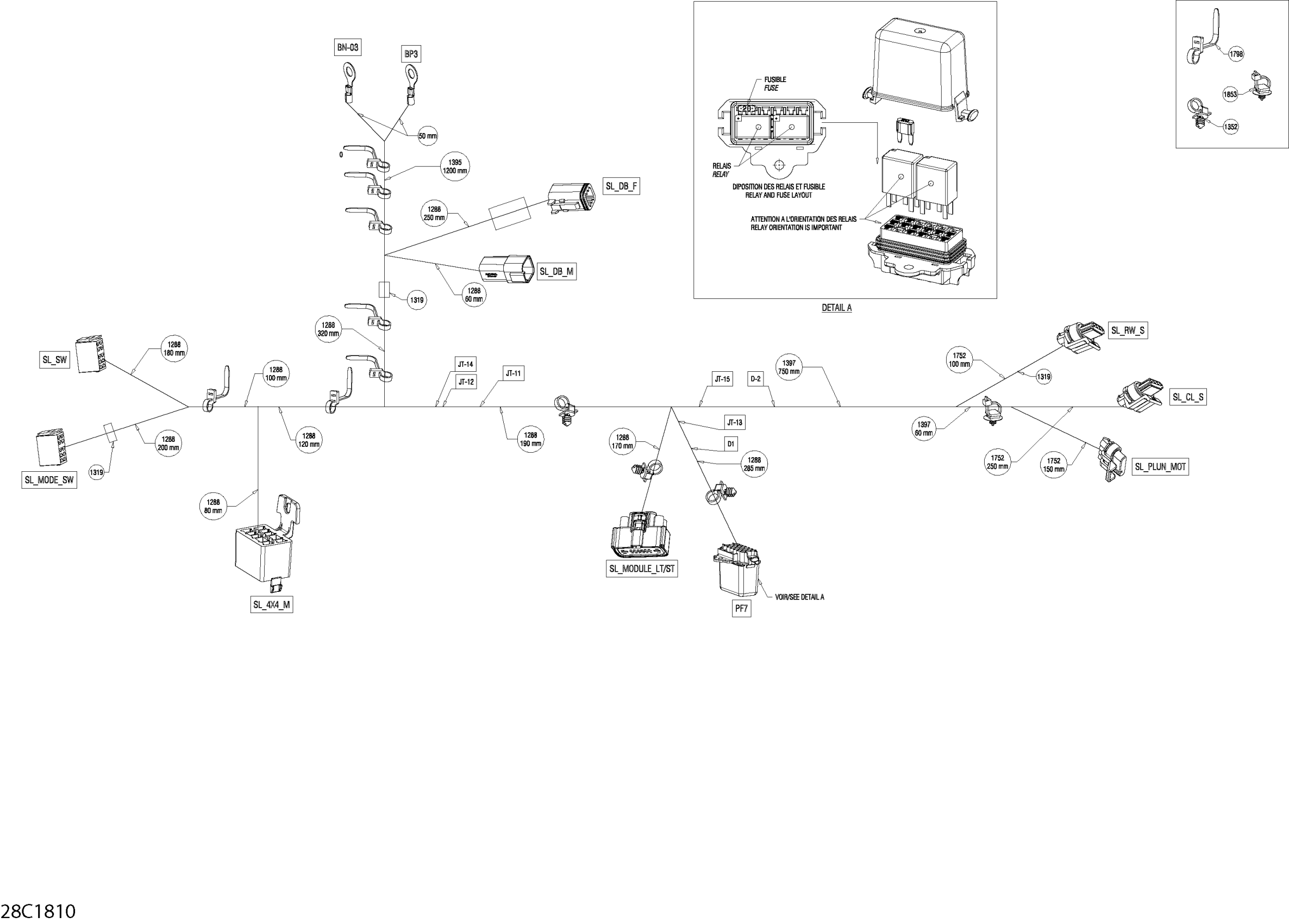

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Main Harness - 710005778 - Maverick X3 Diagram

Description

Price

315

Diff Harness | Includes 315 to 315b

710005778

$203.05

BN-03

Open Barrel

278000992

$1.79

BP3

Open Barrel

278000992

$1.79

D-1

Diode

409012700

$10.83

PF7

Fuse Box Cover

278002286

$22.72

PF7

Fuse Box Ass'y

278002285

$23.37

PF7

Wire Seal

278000216

$2.55

PF7

Wire Seal

278000218

$3.48

PF7

Wire Seal

710001427

$1.83

PF7

Female Terminal

278002578

$0.86

PF7

Female Terminal

710000890

$3.73

PF7

Female Terminal

710000918

$5.10

PF7-F19

Little Fuse, 20 Amperes

710000746

$6.77

PF7-R1

Relay, 30 AMP

515176774

$19.20

PF7-R2

Relay, 30 AMP

515176774

$19.20

SL_4X4_M

Switch's Connector

710005713

$6.15

SL_4X4_M

Male Terminal

710005763

$2.98

SL_CL_S

Female Terminal Housing, 3 Circuits

278003442

$8.29

SL_CL_S

Lock

710005868

$3.68

SL_CL_S

Housing Cap

710005775

$3.98

SL_CL_S

Wire Seal

710001163

$5.10

SL_CL_S

Female Terminal

710001164

$5.92

SL_DB_F

Female Housing 6 Circuits

710002706

$16.22

SL_DB_F

Lock

710002705

$3.61

SL_DB_F

Female Terminal

710005438

$4.00

SL_DB_F

Female Terminal

710005439

$4.28

SL_DB_M

HOUSING - Call your local BRP dealership

710002710

$9.48

SL_DB_M

Lock

710002709

$3.68

SL_DB_M

Terminal

710005749

$3.68

SL_DB_M

Terminal

710005748

$2.72

SL_MOD_SW

Housing

710002000

$5.86

SL_MOD_SW

Terminal

710003047

$3.68

SL_MODULE_LT

Seal

278003046

$0.74

SL_MODULE_LT

Terminal

710005584

$1.83

SL_MODULE_ST

Female Housing ,16 Circuits

278003484

$14.27

SL_MODULE_ST

Sealing Cap

278002860

$1.42

SL_MODULE_ST

Sealing Cap

278002860

$1.42

SL_PLUN_MOT

Housing-Female

710005392

$4.62

SL_PLUN_MOT

Lock

710005394

$3.68

SL_PLUN_MOT

Housing Cap

710005774

$3.98

SL_PLUN_MOT

Seal

710000643

$4.12

SL_PLUN_MOT

Female Terminal

278001481

$3.02

SL_RW_S

Female Terminal Housing, 3 Circuits

278003442

$8.29

SL_RW_S

Lock

710005868

$3.68

SL_RW_S

Housing Cap

710005775

$3.98

SL_RW_S

Wire Seal

710001163

$5.10

SL_RW_S

Female Terminal

710001164

$5.92

SL_SW

Housing

710002000

$5.86

SL_SW

Terminal

710003047

$3.68
