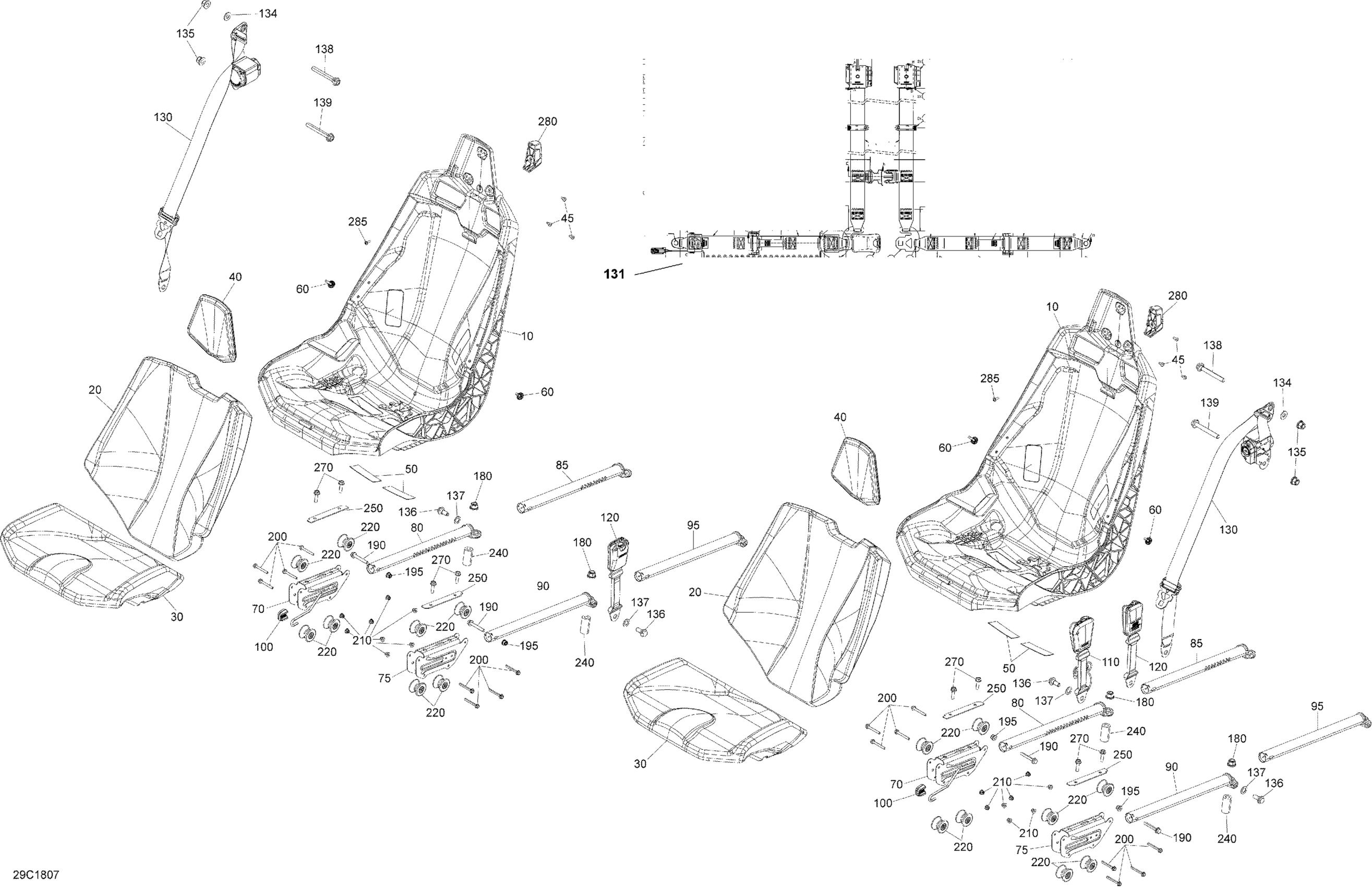

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Seat Maverick X3 MAX -SML Diagram

Description

Price

Seat Shell Kit

708002065

$249.99

BACKREST ASS'Y - Call your local BRP dealership | Model Gold

708002380

$319.99

Seat Base Cushion | Model Gold

708002382

$226.12

Stopper

708002670

$3.98

Headrest

708002131

$96.89

Torx Screw K50 X 16

250000720

$1.39

Velcro Tape

708002535

$4.98

Button Head Tie Rap

708002533

$2.31

Adjustable Trolley Kit

703500997

$54.58

Trolley

708002298

$16.89

Seat Rail

708003061

$50.74

Rail

708002578

$50.74

Seat Rail

708003064

$50.74

Rail

708002575

$50.74

100

Adjustment Handle

708002655

$15.22

130

Safety Belt Passenger

708002654

$267.66

130

Driver Side Safety Belt

708002811

$267.66

131

Safety Belt 4 Points | Package XRSDPS

708002918

$324.58

131

LH Front Safety Belt 4 Points

708002917

$253.82

135

Elastic Flange Nut M12

233221416

$2.33

136

Safety Belt screw

708002504

$5.52

137

Position Washer

708000891

$1.15

180

Elastic Flange Nut M12

233221416

$2.33

190

Hex. Flange Screw M8 X 55

207685544

$4.41

195

Elastic Flange Nut M8

233281464

$0.83

200

Hex. Flange Screw M6 X 50

207665044

$3.38

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

Wheel

708002134

$15.35

240

Rear Bushing

708002299

$10.14

250

Plate | Includes 250 to 250a

708003680

$2.03

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68
