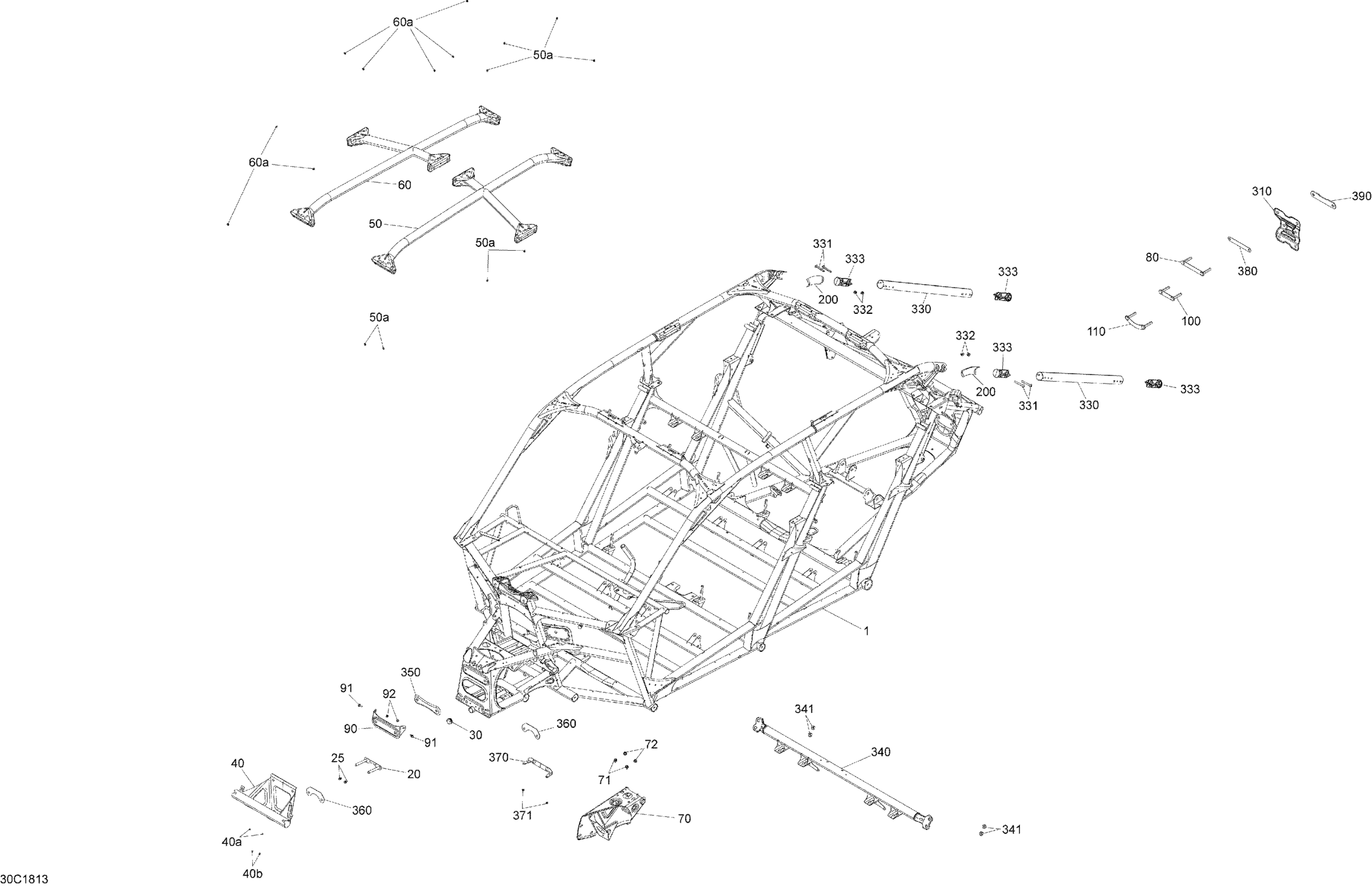

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Frame Maverick X3 MAX Diagram

#

Description
Price

1>1a

Red Frame Kit | XRSDPS Package, Liquid Gold

715004376

Unavailable

1>1a

Black Frame Kit | Except XRSDPS Package, Liquid Gold

715004377

Unavailable

1a

Red Max Cage Kit | XRSDPS Package, Liquid Gold Upper section Only

715004370

Unavailable

1a

Black Cage Kit | Except XRSDPS Package, Liquid Gold. Upper Section Only

715004371

Unavailable

20

Front Plate

705207424

$18.43

25

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40>40b

Deep Black, Front Bumper | Except Model Gold

705210400

$101.51

40>40b

PAINTED FRONT BUMPER - Call your local BRP dealership | Model Gold

705205747

$99.97

40a

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

40b

Pop Rivet 3/16"

390402200

$0.26

50>50a

LH Added Cage | Except XRSDPS Package, Liquid Gold

705206251

$91.99

50>50a

Can-Am Red, LH Cage Reinforcement | XRSDPS Package, Liquid Gold

705210215

$91.99

50a

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

60>60a

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

60>60a

Can-Am Red, RH Cage Reinforcement | XRSDPS Package, Liquid Gold

705210216

$91.99

60a

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

70

DPS Support

705206924

$66.12

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Flange Elastic Nut M8

233281414

$1.14

80

Rear Upper Plate

705206852

$19.20

90

Stifner Plate

705206877

$28.43

91

Hex. Flange Screw M6 X 16

207661654

$1.74

92

Hex. Flange Elastic Nut M6

233261494

$1.26

100

Rear Central Plate

705211558

$17.66

110

Rear Plate

705206854

$19.20

200

Black, LH Link Plate | Except Model Gold

705205926

$23.82

200

PLATE_CONNECTING B-101 PAINTED - Call your local BRP dealership | Model Gold

705205929

Unavailable

210

BLACK DART - Call your local BRP dealership

293730076

$0.91

310

Rear Plate

705205750

$23.82

330

Deep Black, Rear Pillar

705210066

$24.99

330

Red- Rear Mount | Model Gold

705205752

$23.49

331

Torx Truss M8 X 65

250000901

$1.56

332

Elastic Flange Nut M8

250100025

$1.25

333

Sleeve

705210648

$9.29

340

Belt Bar

705205268

$119.97

341

Elastic Stop Nut M12

232521416

$1.40

350

Upper Link Arm

705205294

$10.98

360

Retaining Plate

705210249

$4.86

370

Support

706203122

$11.00

371

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

380

Front Upper Plate

705206069

$13.49

390

Rear Upper Plate | Model XRSDPS

705206511

$13.49

1501

Elastic Flange Nut M12

233221466

$2.15

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.48

1530

Deep Black, LH Cage Reinforcement

705211746

$54.58

1540

Deep Black, RH Cage Reinforcement

705211747

$54.58

1550

Torx Head Screw M6 X 16

250000717

$1.74

1560

Hex. Flange Elastic Nut M6

233261466

$1.66
