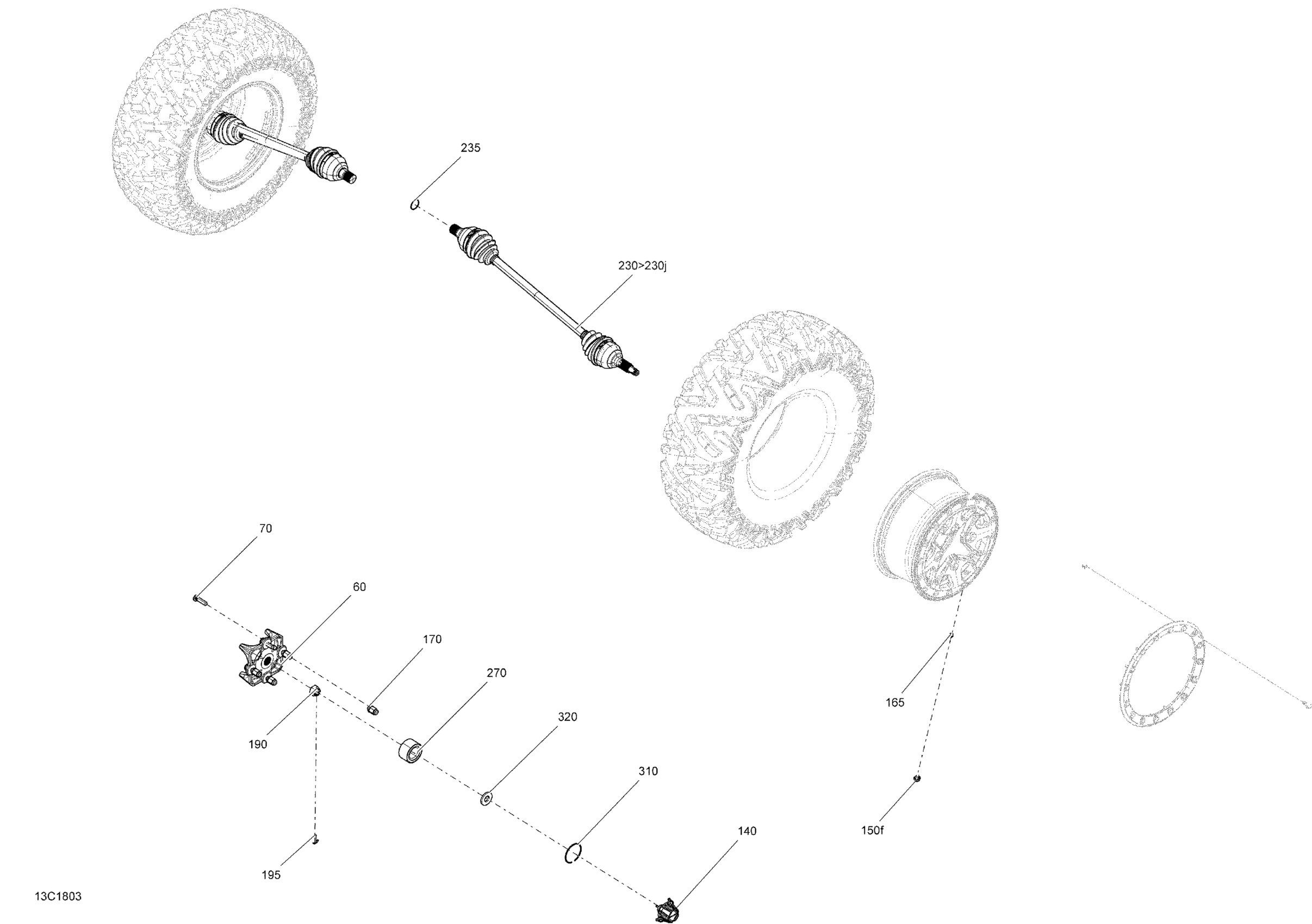

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Rear Drive - All Models Diagram

Description

Price

Wheel Hub

705502122

$115.35

Wheel Stud M12X1.5

250300625

$3.85

140

Wheel Cap

705401841

$11.06

165

Valve Cap

293000110

$1.18

170

Black, Wheel Nut M12 X 1.50

250100196

$2.79

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

230>230j

Performance CV Axle - Rear | Includes 230 to 230d2

705502154

$261.24

230>230j

Performance CV Axle - Rear | Includes 230 to 230d2

705502154

$261.24

230>230j

Performance CV Axle - Rear | Includes 230 to 230d2

705502362

$261.24

230>230j

Performance CV Axle - Rear | Includes 230 to 230d2

705502362

$261.24

230>230j

Performance CV Axle - Rear | Includes 230 to 230d2

705502362

$261.24

230a

CV Joint

715900447

$253.82

230b

Plunging Joint

715900448

Unavailable

230c

Circlip Joint

715900449

$5.52

230d

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$41.51

230e

Oetiker Clamp, Large

715900455

$8.62

230f

Oetiker Clamp, Small

715900456

$4.82

230g

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$41.51

230h

Oetiker Clamp, Large

715900455

$8.62

230j

Oetiker Clamp, Small

715900456

$4.82

235

O-Ring

293300196

$2.31

270

Bearing_Ball

293350141

$69.74

310

Circlip

293370102

$3.98

320

Conical Spring Washer M20

250200170

$11.00
