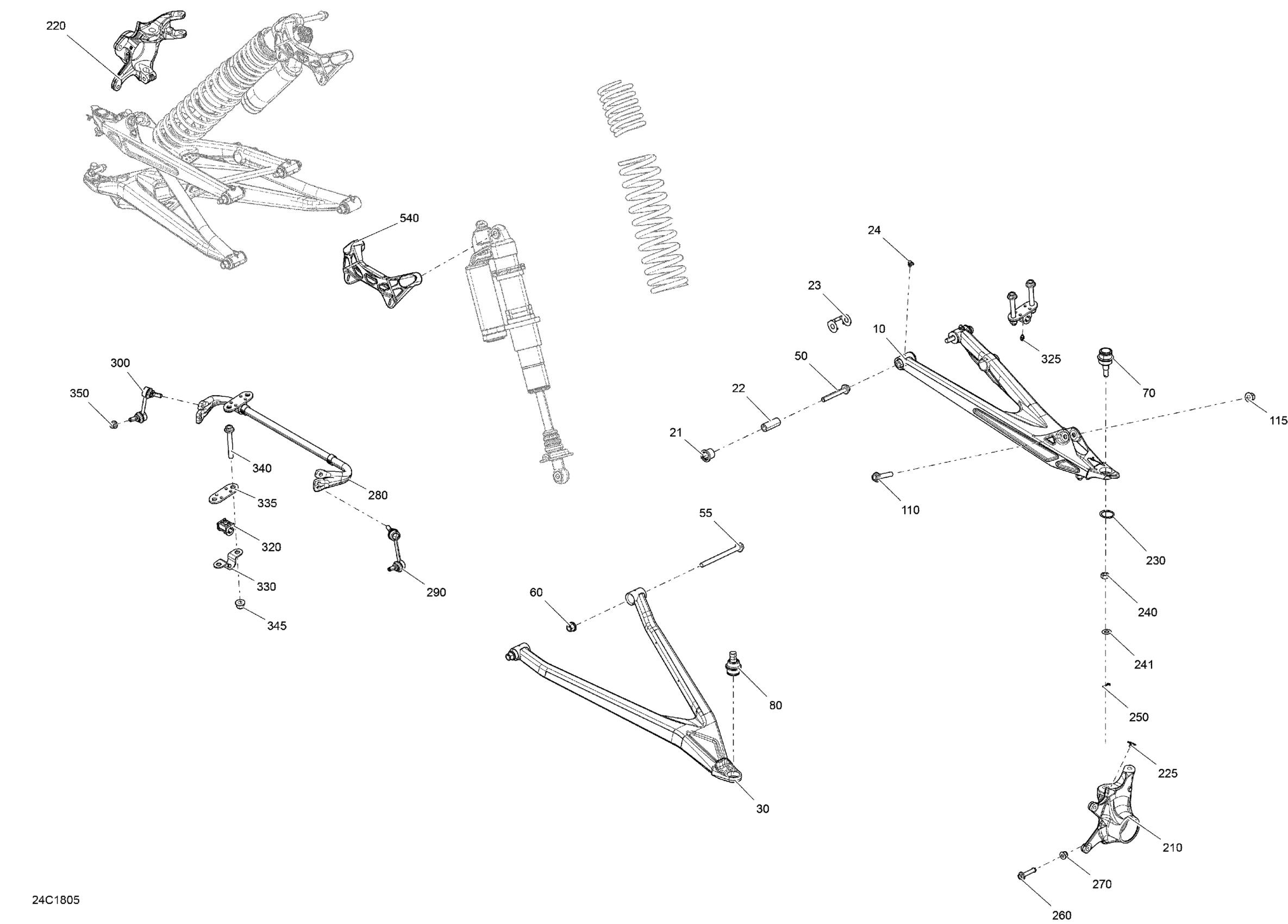

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Front Suspension Maverick X3 Diagram

#

Description
Price

10

Red Upper Suspension Arm LH | Model X3 Xrs Gold

706203074

$201.49

10

Deep Black, LH Upper Suspension Arm | Model X3 Xrs Black

703501053

$201.49

10

Deep Black, LH Upper Suspension Arm | Model X3 Xrs Black

703501053

$201.49

10

Kit Arm Suspension Up L B-354 Painted | Package STD Hyper Silver Models

703501048

$201.49

10

Deep Black, LH Upper Suspension Arm

703501047

$201.49

10

Deep Black, LH Upper Suspension Arm

703501047

$201.49

10

Deep Black, LH Upper Suspension Arm

703501047

$201.49

10

Can-Am Red, RH Upper Suspension Arm | Model X3 Xrs Gold

703501163

$222.49

10

Deep Black, RH Upper Suspension Arm | Model X3 Xrs Black

703501056

$222.49

10

Deep Black, RH Upper Suspension Arm | Model X3 Xrs Black

703501056

$222.49

10

Kit Arm Suspension Up R B-354 Painted | Package STD Hyper Silver Models

703501051

$201.49

10

Deep Black, RH Upper Suspension Arm

703501050

$201.49

10

Deep Black, RH Upper Suspension Arm

703501050

$201.49

10

Deep Black, RH Upper Suspension Arm

703501050

$201.49

21

Suspension Arm Bushing

706204409

$9.10

22

Interior Bushing

706202257

$9.79

23

Wear Plate

706202300

$2.29

24

Grease Fitting 90°

293550056

$1.15

30

Black, LH Lower Arm | Model X3 Xrs

706202706

$201.49

30

Deep Black, LH Front Suspension Arm Ass'y With Balljoint This part replaces 706202919.

715010612

$269.99

30

Deep Black, LH Front Suspension Arm Ass'y With Balljoint This part replaces 706202919.

715010612

$269.99

30

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$289.99

30

Deep Black, RH Front Suspension Arm Ass'y With Balljoint This part replaces 706202920.

715010611

$269.99

30

Deep Black, RH Front Suspension Arm Ass'y With Balljoint This part replaces 706202920.

715010611

$269.99

50

Flange Screw M12 X 85

250000859

$4.76

55

Flange Screw M12 X 145

250000861

$6.67

60

Elastic Flange Nut M12

233221466

$2.89

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

233221466

$2.89

210

LH Front Knuckle

706204785

$201.49

220

RH Front Knuckle

706204786

$148.49

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605044

$5.29

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Stabilizer Bar Ass'y

703501043

$121.99

290

Link Stabilizer Bar LH

706202764

$57.99

300

Link Stabilizer Bar RH

706202765

$57.99

320

Bushing_Stabilizer Bar

706204565

$3.61

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706202460

$6.89

335

Support Plate

706202551

$5.09

340

Hex. Flange Screw M12 X 95

250000876

$6.77

345

Elastic Flange Nut M12

233221466

$2.89

350

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Conical Spring Washer 10 mm

234201474

$1.69

540

Black, Link

706202708

$55.99

540

Red Link | Model X3 Xrs Gold

706202709

$49.99
