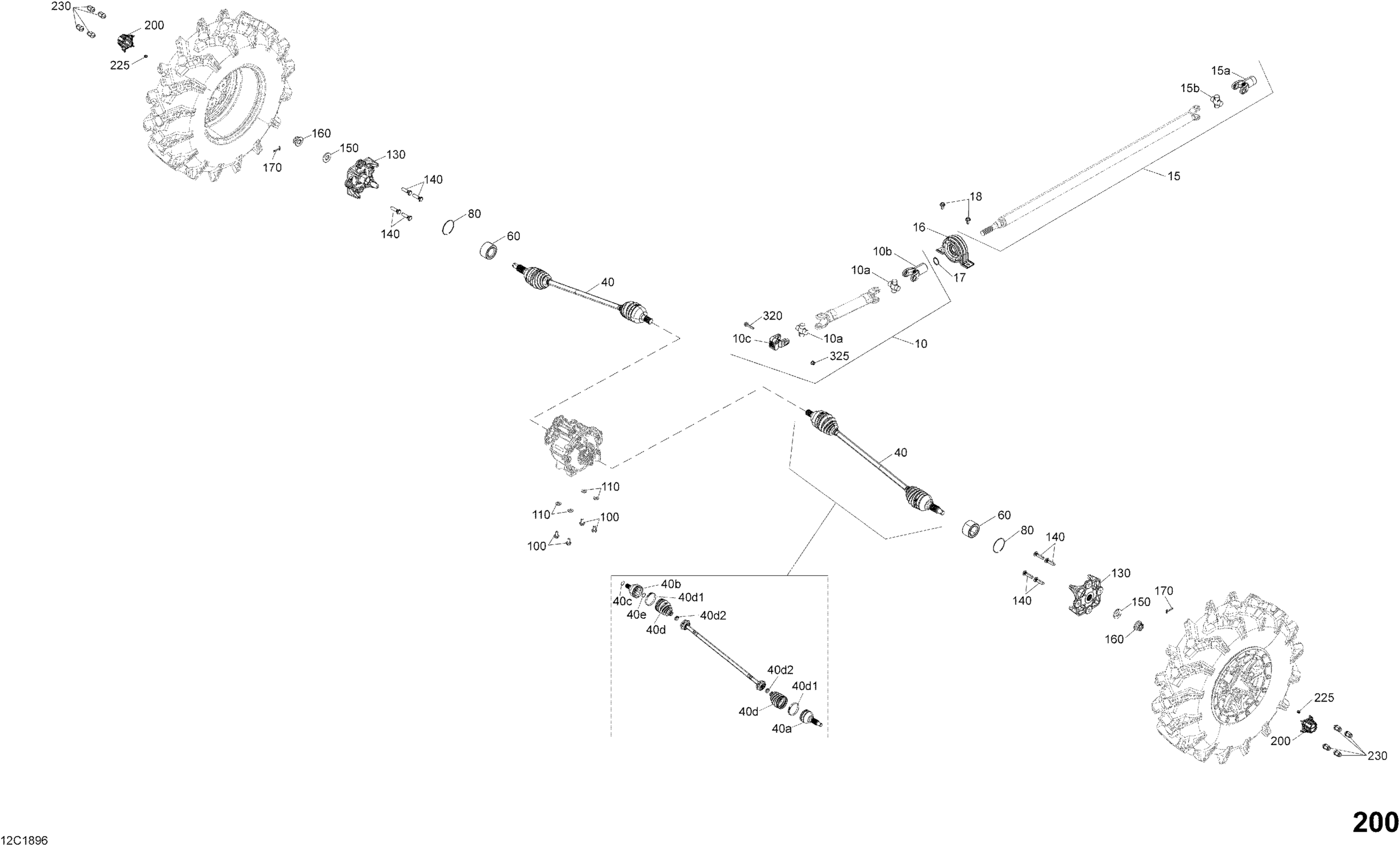

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Front Drive - Main Parts - XRS DPS - SML Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705402187

$253.82

10a

J-Joint Cross Kit

715900402

$87.66

10b

Fixed Yoke Joint

715900524

$59.97

10c

Yoke

715900401

$36.89

Drive Shaft Ass'y | Includes 15 to 15b

705402026

$299.97

15a

Yoke

715900401

$36.89

15b

J-Joint Cross Kit

715900402

$87.66

Ball Bearing Ass'y

705403522

$46.12

Snap Ring

293370098

$3.11

Hex. Flange Screw M10 X 20

207502046

$1.74

Performance CV Axle | Includes 40 to 40f

705402048

$261.24

40a

CV Joint

715900574

$253.82

40b

Plunging Joint

715900575

$249.20

40c

Circlip

715900569

$5.52

40d

Boot Kit, Wheel Side

705401354

$41.51

40d1

Oetiker Clamp, Large

715900260

$7.84

40d2

Oetiker Clamp, Small

715900261

$4.39

40e

O-ring

715900580

$2.31

Bearing_Ball

293350141

$69.74

Circlip

293370102

$3.98

100

Hex. Flange Screw M10 X 20

207502046

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

130

Wheel Hub

705502122

$115.35

140

Wheel Stud M12X1.5

250300625

$3.85

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

200

Wheel Cap

705401841

$11.06

225

Valve Cap

293000110

$1.18

230

Black, Wheel Nut M12 X 1.50

250100196

$2.79

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
