Description

Price

1

O-Ring

420450431

$5.29

2

O-Ring

420450520

$3.19

3

CVT Air Guide

420212605

$254.99

4

Gasket

420450405

$31.99

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212508

$190.49

7

Cap

420441820

$11.63

8

O-Ring

420250057

$4.23

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280725

$379.99

11

Slider Shoe Set

420281296

$65.49

12

O-Ring

420230456

$2.09

13

Roller Axle

417223257

$6.99

14

Roller Thrust

420229991

$19.99

15

Outer Half Ass'y

420280608

$296.99

15

Outer Half Ass'y | Version With Intercooler

420280461

$296.99

16>19

Centrifugal Lever Kit

420248658

$340.49

16>19

Centrifugal Lever Kit | Includes no. 18-21

420248661

$370.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Bearing Cover

420280616

$69.99

20

Bearing Cover | Version With Intercooler

420280617

$65.49

21

Torx Flange Screw M6 X 25

420841549

$2.00

22

Spring

420638111

$37.99

23

Spring Retainer

420427211

$46.49

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280596

$339.99

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Sliding Pulley Ass'y

420280636

$349.99

30

Drive Belt

422280652

$239.99

30

Drive Belt

422280652

$239.99

31

Outer Half Pulley Ass'y

420280626

$349.99

32

Pulley Roller

417127016

$24.49

33

Thrust Washer

420227946

$2.51

34

Bearing Pin

420629192

$16.34

35

Torx Screw M4 X 20

420841531

$2.09

36

Spring Support

420427805

$11.17

37

Spring

420638126

$37.99

37

Compression Spring

420638124

$37.99

38

Cam 37/50 Ass'y

420280706

$217.49

39

Torx Flange Screw M10 X 40

420841711

$2.09

40

Collar Washer

420427243

$16.40

41

Hexagonal Screw M10X 61

420441990

$19.49

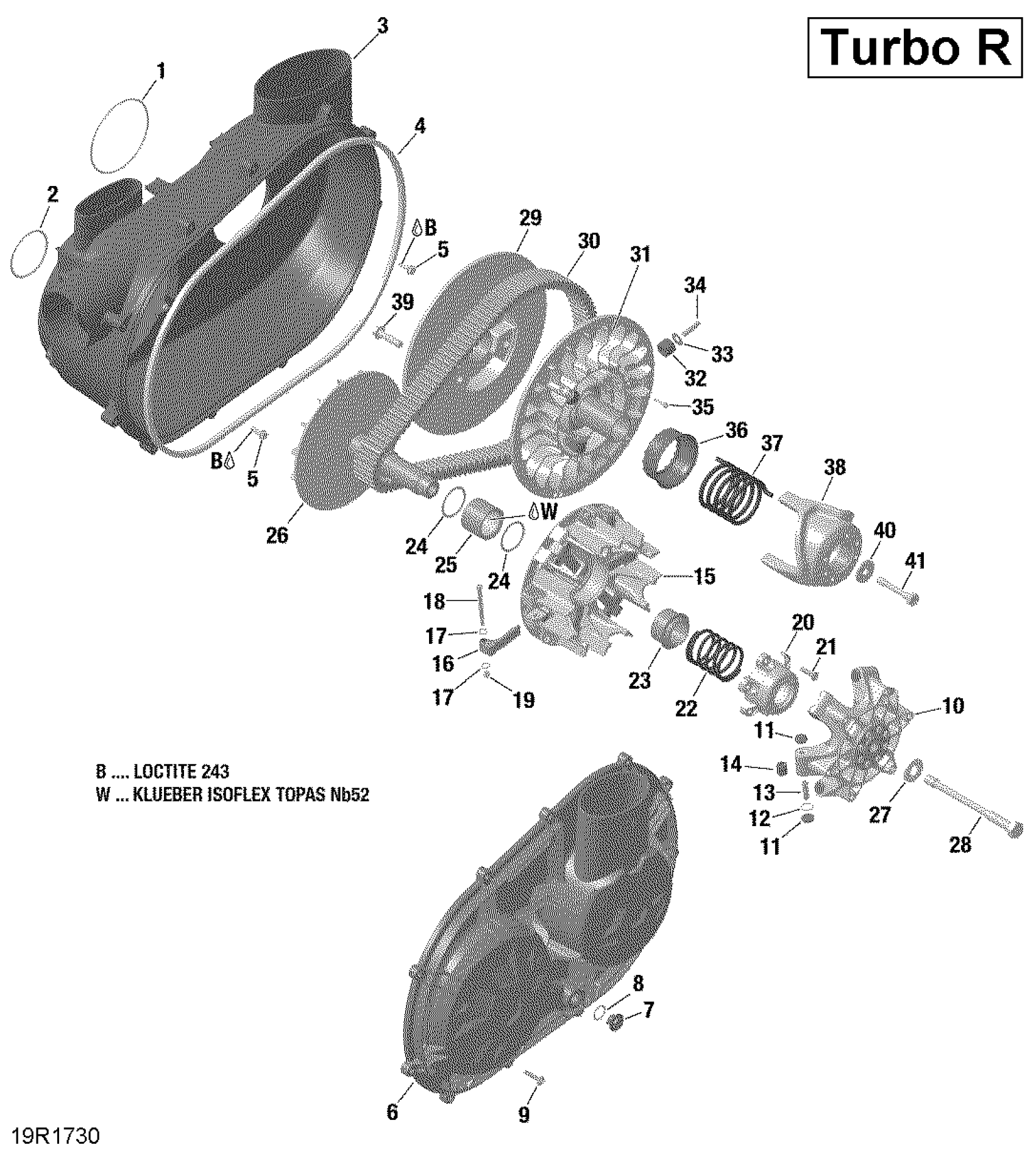

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Transmission Diagram

O-Ring

O-Ring

CVT Air Guide

Gasket

Hex.Screw M6 X 20

Variator Cover

Cap

O-Ring

Torx Screw 6X30

Governor Cup Ass'y

Slider Shoe Set

O-Ring

Roller Axle

Roller Thrust

Outer Half Ass'y

Outer Half Ass'y | Version With Intercooler

Centrifugal Lever Kit

Centrifugal Lever Kit | Includes no. 18-21

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Bearing Cover

Bearing Cover | Version With Intercooler

Torx Flange Screw M6 X 25

Spring

Spring Retainer

Washer

Needle Roller Bearing With Sleeves

Inner Half Ass'y

Washer

Hexagonal Screw M14X 165

Sliding Pulley Ass'y

Drive Belt

Drive Belt

Outer Half Pulley Ass'y

Pulley Roller

Thrust Washer

Bearing Pin

Torx Screw M4 X 20

Spring Support

Spring

Compression Spring

Cam 37/50 Ass'y

Torx Flange Screw M10 X 40

Collar Washer

Hexagonal Screw M10X 61
