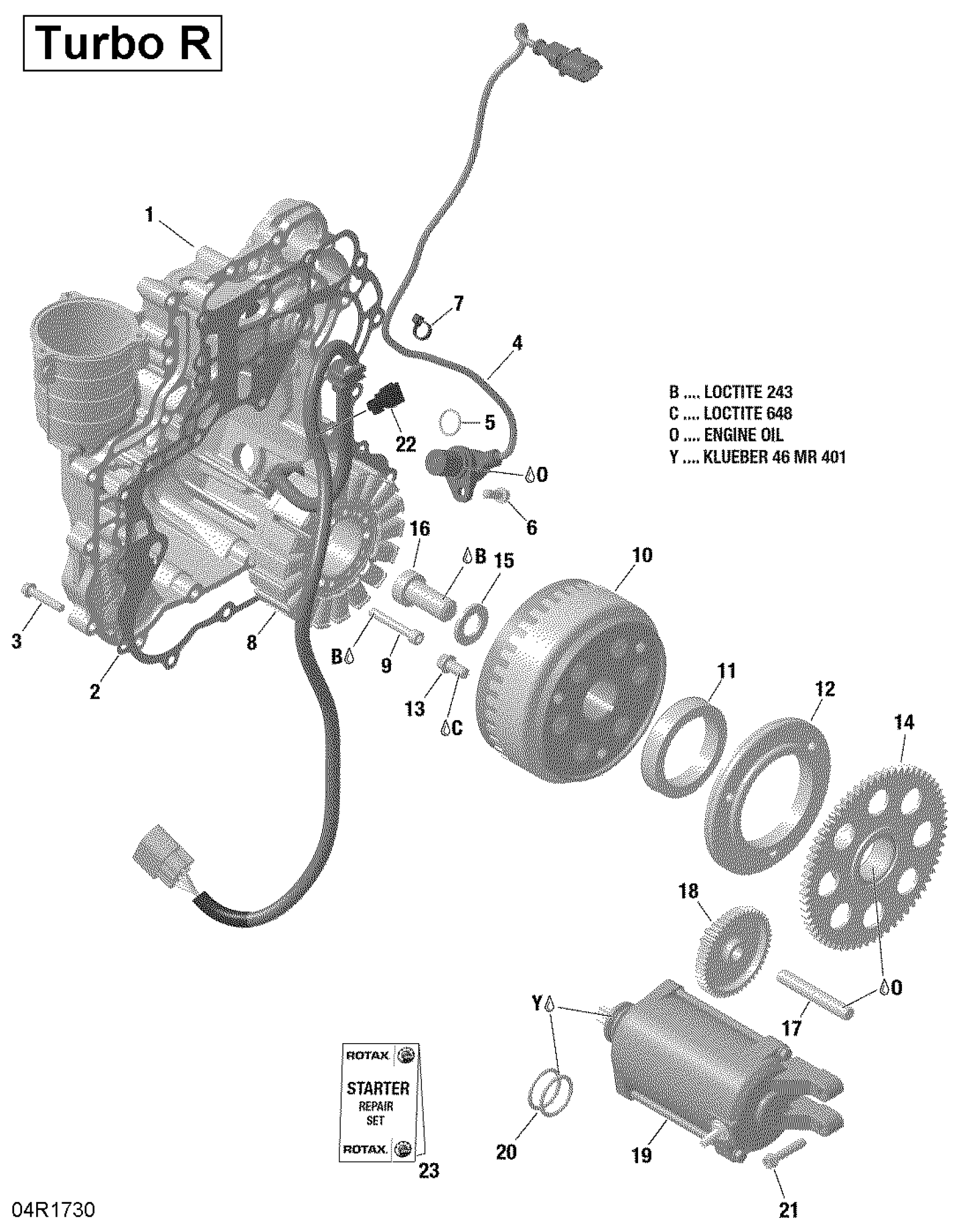

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Magneto And Electric Starter Diagram

#

Description
Price

1

Ignition Cover

420911055

$179.99

2

Gasket

420431640

$30.49

3

Torx Flange Screw M6 X 30

420440647

$2.00

4>5

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

5

O-Ring

420431580

$14.83

6

Torx Flange Screw M6 X 16

420440162

$3.17

7

Tie Rap

420866714

$1.90

8

Stator Plate 650W

420685635

$319.49

9

Allen Screw M6 X 40

420241956

$3.17

10

Flywheel Ass'y 650W

420686192

$558.99

11

Sprag Clutch

420659113

$259.99

12

Sparg Clutch Housing

420659263

$154.99

13

Torx Flange Screw M8 X 16

420440854

$4.44

14

Free Wheel Gear, 64 Teeth

420434238

$114.99

15

Shim

420627270

$4.12

16

Socket Head Screw M16 X 35

420241549

$8.57

17

Needle Pin

420229475

$14.83

18

Starter Double Gear 11/49 T

420634741

$199.99

19>20

Starter Ass'y | Includes 8 to 9

420893830

$265.99

20

O-Ring

420250145

$10.33

21

Torx Flange Screw M6 X 30

420440647

$2.00

22

Cable Clamp 150mm

420951650

$4.44

23

Carbon Brush Set

420881145

$204.99
