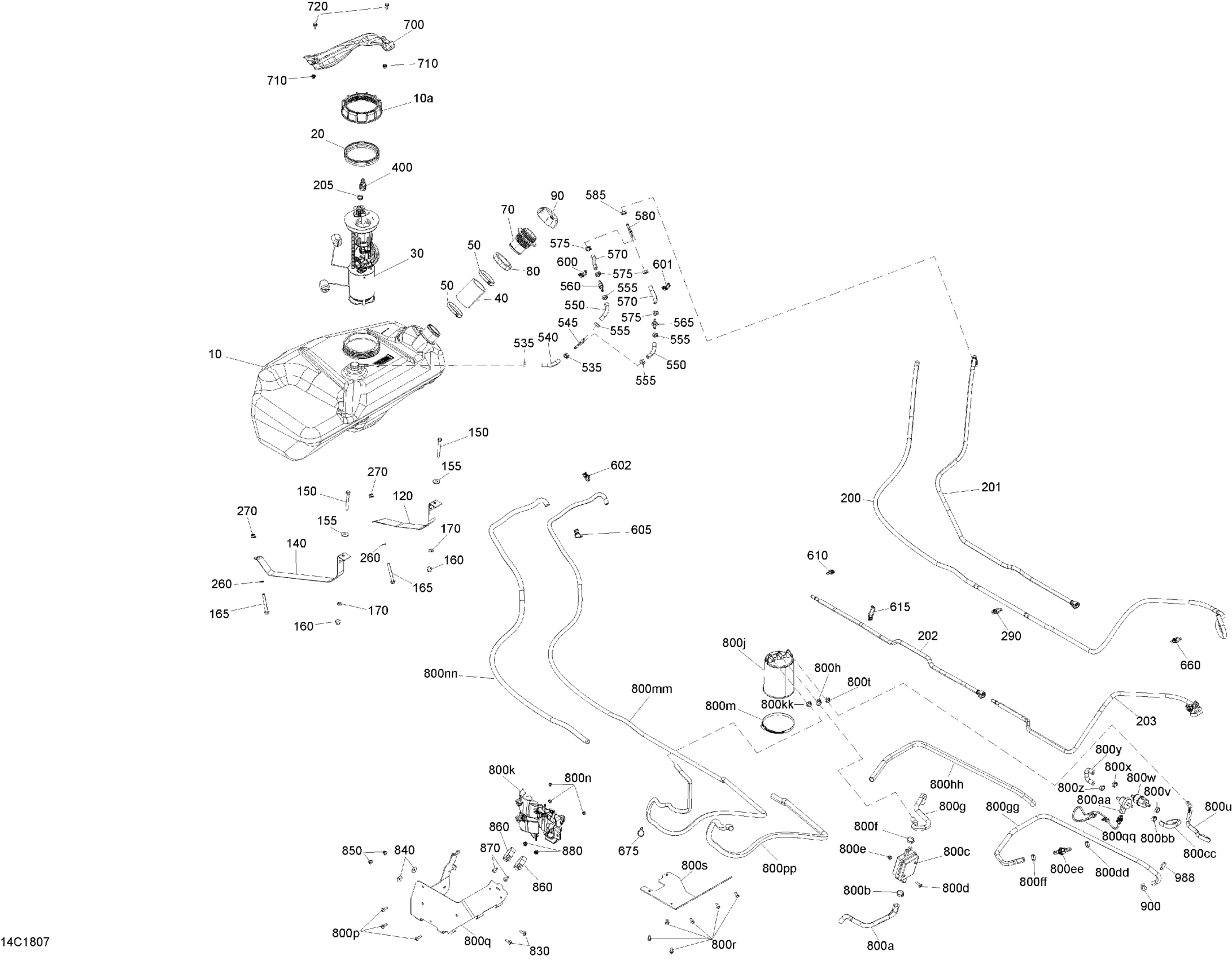

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Fuel EVAP Model Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$287.66

10a

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30

Fuel Pump | Includes 30 to 30b

709001057

$353.87

30a

Fuel Filter

270600113

$27.27

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

40

Filler Neck

709000748

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

709000868

$32.28

120

Fuel Tank Strap

709000910

$41.51

140

Fuel Tank Strap

709000911

$41.51

150

Hex. Screw, M8 X 75

207187544

$0.89

155

Flat Washer 8 mm

234082410

$1.11

160

Hex. Flange Elastic Nut M8

233281414

$1.14

165

Hex. Flange Screw, M8 X 65

207686544

$9.74

170

Flat Washer 8 mm

234081410

$0.69

200

Hose

709000908

$108.43

200

Hose

709000908

$108.43

201

Formed Hose

709000987

$39.97

202

Formed Hose

709000989

$36.89

203

Formed Hose

709001059

$46.12

220

Tie-Rap 180 mm

414115200

$0.09

221

Tie-Rap 180 mm

414115200

$0.09

222

Tie-Rap 180 mm

414115200

$0.09

260

Flat Washer 8 mm

234081410

$0.69

270

Hex. Flange Elastic Nut M8

233281414

$1.14

535

Oetiker Clamp

293650042

$1.40

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$8.19

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

600

Clip Tie-Rap

293750063

$8.45

601

Clip Tie-Rap

293750063

$8.45

602

Clip Tie-Rap | Package North Edition

710005037

$8.45

605

Clip Tie-Rap

293750063

$8.45

606

Tie Wrap 368 mm

293750008

$0.85

610

Clip Tie-Rap

293750063

$8.45

615

Clip Tie-Rap | Package North Edition

710005037

$8.45

660

Clip Tie-Rap | Package North Edition

710005037

$8.45

665

Tie Wrap 368 mm

293750008

$0.85

675

Tie-Rap Clip

710005180

$3.68

690

Tie Wrap 368 mm

293750008

$0.85

700

Connector Protector

707900594

$18.43

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

800a

Formed Hose

709000869

$15.22

800b

Oetiker Clamp

293650186

$3.33

800c

Air Filter

709000524

$46.12

800d

Hex. Flange Screw M6 X 20

207662054

$0.83

800d

Torx Screw M6 X 20

250000712

$1.74

800e

Hex. Flange Elastic Nut M6

233261494

$1.26

800f

Oetiker Clamp

293650186

$3.33

800g

Formed Hose

709000870

$15.22

800h

Crimp Clamp

293650053

$2.42

800j

Charcoal Canister This part replaces 709001294.

709001673

$83.05

800k

Canister Support | EVAP Models

709000851

$4.60

800m

Tridon Clamp

293650054

$7.51

800n

Hex. Elastic Stop Nut M6

232561600

$0.92

800p

Torx Screw M6 X 20

250000712

$1.74

800q

Primary Support

709000955

$96.89

800r

Hex. Flange Screw M6 X 12

210261250

$1.56

800s

Secondary Support

709000956

$16.89

800t

Oetiker Clamp

293650042

$1.40

800u

Formed Hose

709000853

$15.22

800v

Oetiker Clamp

293650046

$2.33

800w

Fuel Filter

513034047

$23.05

800x

Crimp Clamp, 15.3-706R

293650047

$2.64

800y

Formed Hose

709000857

$15.22

800z

Crimp Clamp, 15.3-706R

293650047

$2.64

800aa

Bleed Valve

709000443

$69.20

800bb

Crimp Clamp, 15.3-706R

293650047

$2.64

800cc

Formed Hose

709000873

$15.22

800dd

Crimp Clamp

293650053

$2.42

800ee

Check Valve

275500941

$27.66

800ff

Crimp Clamp

293650053

$2.42

800gg

Hose 3000Mm Long

219704612

$79.97

800hh

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800jj

Tie Wrap 142 mm

293750002

$0.88

800kk

Oetiker Clamp

293650046

$2.33

800mm

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800nn

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800pp

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800qq

Purge Valve Cable

710005718

$18.43

830

Torx Screw M6 X 20

250000712

$1.74

840

Flat Washer M6.6 X 22

250200162

$1.91

850

Hex. Flange Elastic Nut M6

233261494

$1.26

860

Open Clamp

293850132

$14.75

870

Hex. Flange Screw M6 X 20

207662054

$0.83

880

Hex. Flange Elastic Nut M6

233261494

$1.26

900

Norma Spring Clamp

293650214

$15.35
