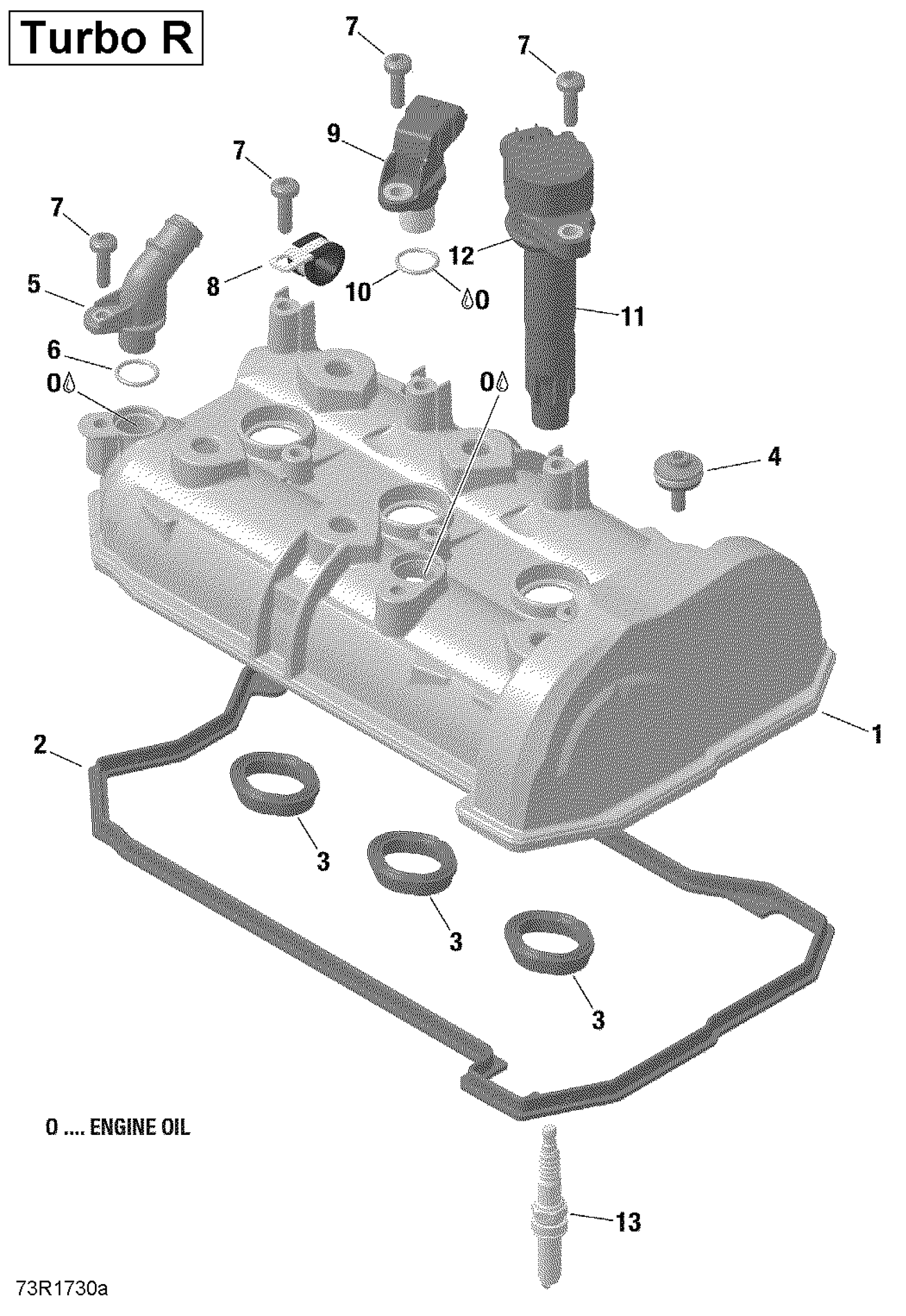

Can-Am Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 Valve Cover Diagram

#

Description
Price

1

Valve Cover

420911492

$74.49

2

Valve Cover Gasket

420431801

$20.49

3

Valve Cover Gasket

420431751

$3.17

4

Distance Screw M6

420440497

$8.78

5

Blow By Connector

420611242

$13.16

6

O-Ring

420631240

$2.11

7

Torx Flange Screw M6 X 20

420441383

$5.40

8

Cable Clamp

420851492

$14.28

9>10

Camshaft Position Sensor Ass'y

420664046

$88.99

10

O-Ring

420631890

$5.18

11>12

Stick Coil

420666145

$56.99

12

Protection Cap

420201430

$7.51

13

Spark Plug

415130363

$21.99
