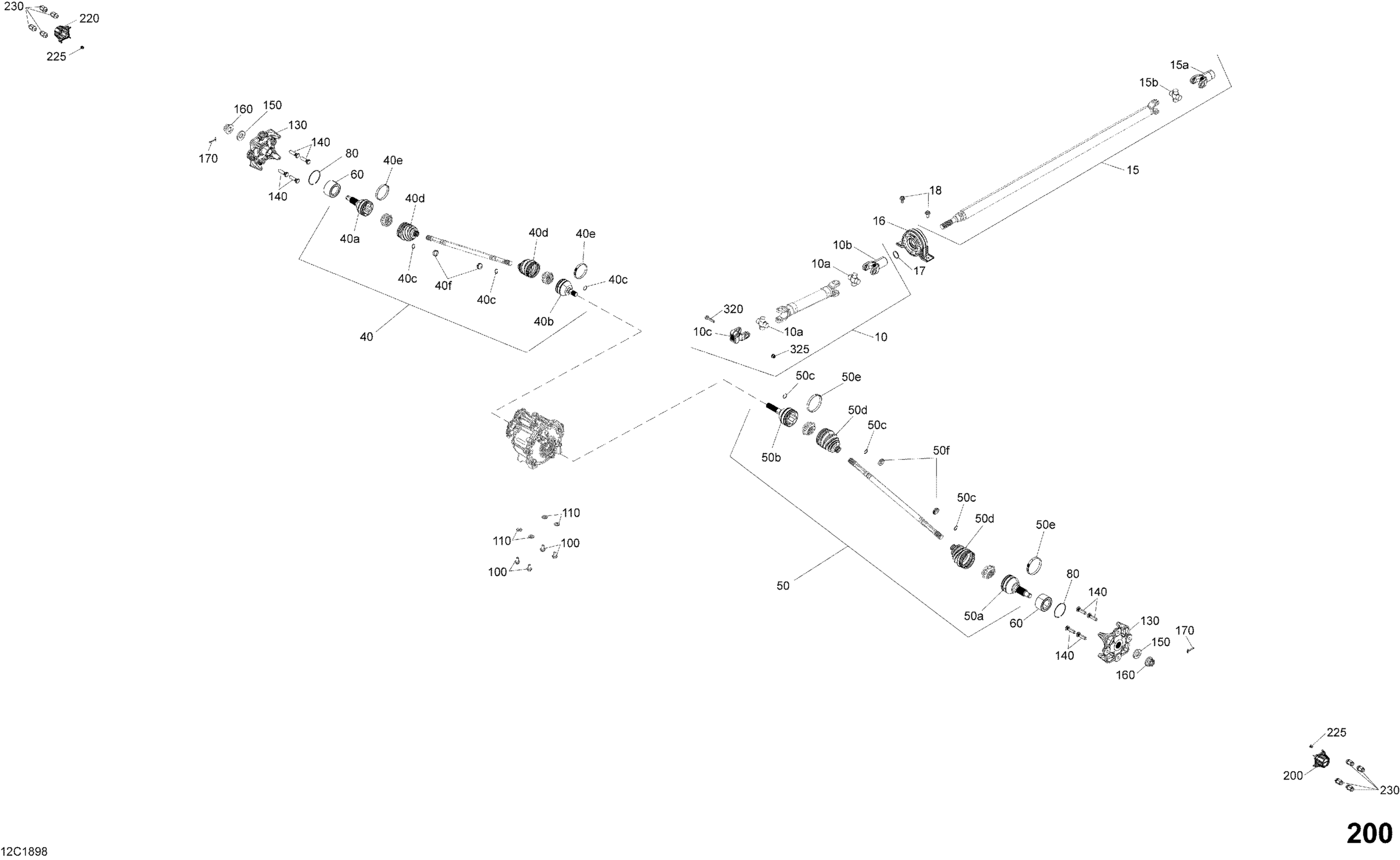

Can-Am Maverick X3 MAX Turbo R - STD_XDS DPS_XRS DPS, 2018 Front Drive - Main Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705402187

$259.49

10

Drive Axle Ass'y | Includes 10 to 10c

705402188

$254.49

10a

J-Joint Cross Kit

715900402

$89.99

10b

Yoke

715900401

$35.99

10c

Fixed Yoke Joint

715900524

$59.49

15

Drive Shaft Ass'y | Includes 15 to 15b

705402026

$312.49

15a

Yoke

715900401

$35.99

15b

J-Joint Cross Kit

715900402

$89.99

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 20

207502046

$2.11

40

Performance CV Axle - Front Right | Except Model X3 Xrs

705402098

$275.49

40

Performance CV Axle - Front Right | Except Model X3 Xrs

705402098

$275.49

40

Performance CV Axle - Front Right | Model X3 Xrs

705402100

$275.49

40a

CV Joint

715900452

$259.49

40b

RH Plunging Joint

715900454

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40e

Oetiker Clamp, Large

715900260

$10.33

40f

Oetiker Clamp, Small

715900261

$5.29

50

Performance CV Axle - Front Left | Except Model X3 Xrs

705402097

$275.49

50

Performance CV Axle - Front Left | Except Model X3 Xrs

705402097

$275.49

50

Performance CV Axle - Front Left | Model X3 Xrs

705402099

$275.49

50a

CV Joint

715900452

$259.49

50b

LH Plunging Joint

715900453

$259.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401354

$42.49

50e

Oetiker Clamp, Large

715900260

$10.33

50f

Oetiker Clamp, Small

715900261

$5.29

60

Bearing_Ball

293350141

$70.99

80

Circlip

293370102

$3.99

100

Hex. Flange Screw M10 X 20

207502046

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

130

Wheel Hub

705502122

$116.49

140

Wheel Stud M12X1.5

250300625

$3.91

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

200

Wheel Cap

705401841

$6.09

225

Valve Cap

293000110

$1.59

230

Black, Wheel Nut M12 X 1.50

250100196

$2.68

232

Side Gear Kit

703501023

$465.99

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
