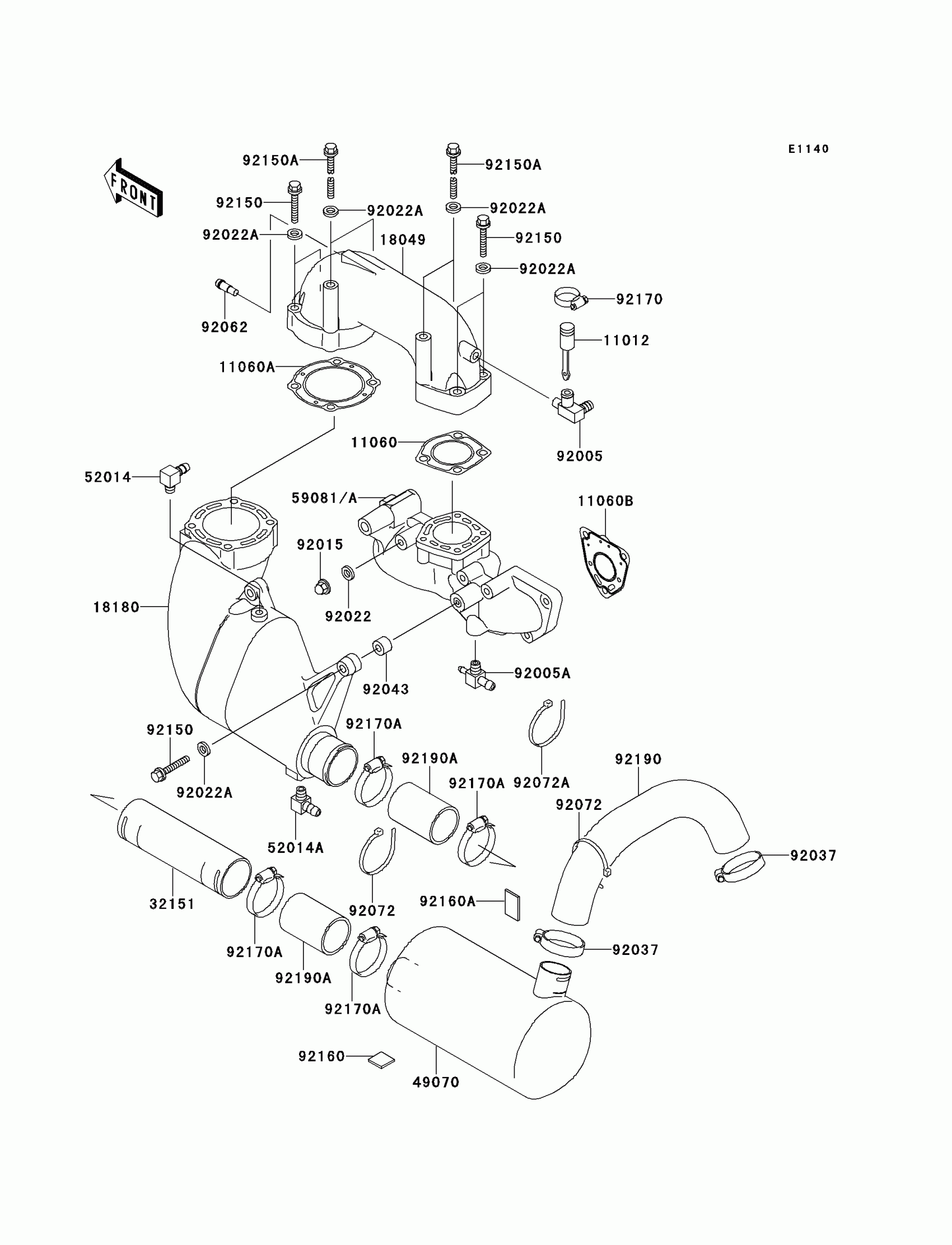

Kawasaki 900 ZXi Muffler(s) Diagram
#
Description
Price
11012
CAP
11012-3757
$10.97
11060
GASKET
11060-3754
$36.78
11060A
GASKET
11060-3755
$33.76
11060B
GASKET
11060-3756
$28.25
18049
PIPE-EXHAUST
18049-3753
$238.80
18180
BODY-MUFFLER
18180-3711
$573.19
32151
PIPE
32151-3742
Unavailable
49070
MUFFLER-COMP
49070-3725
$377.06
52014
ELBOW
52014-3709
$26.86
52014A
ELBOW
52014-3711
$30.12
59081A
MANIFOLD-EXHAUST
59081-3724
Unavailable
92005
FITTING
92005-3715
$48.80
92005A
FITTING
92005-3720
$40.82
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92037
CLAMP
92037-3738
$6.89
92043
PIN,11X14X12.3
92043-1266
$1.08
92062
NOZZLE
92062-3705
$8.44
92072
BAND,L=292.1
92072-3509
Unavailable
92072A
BAND
92072-3799
$1.59
92150
BOLT,10X50
92150-3819
$13.08
92150A
BOLT,10X125
92150-3825
$20.50
92160
DAMPER,25X25
92160-3864
$3.32
92160A
DAMPER,40X25
92160-3865
$5.24
92170
CLAMP
92170-3729
Unavailable
92170A
CLAMP
92170-3754
$13.41
92190
TUBE,MUFFLER-TAILPIPE
92190-3938
$41.45
92190A
TUBE,CHAMBER-MUFLLER
92190-3950
$29.82
