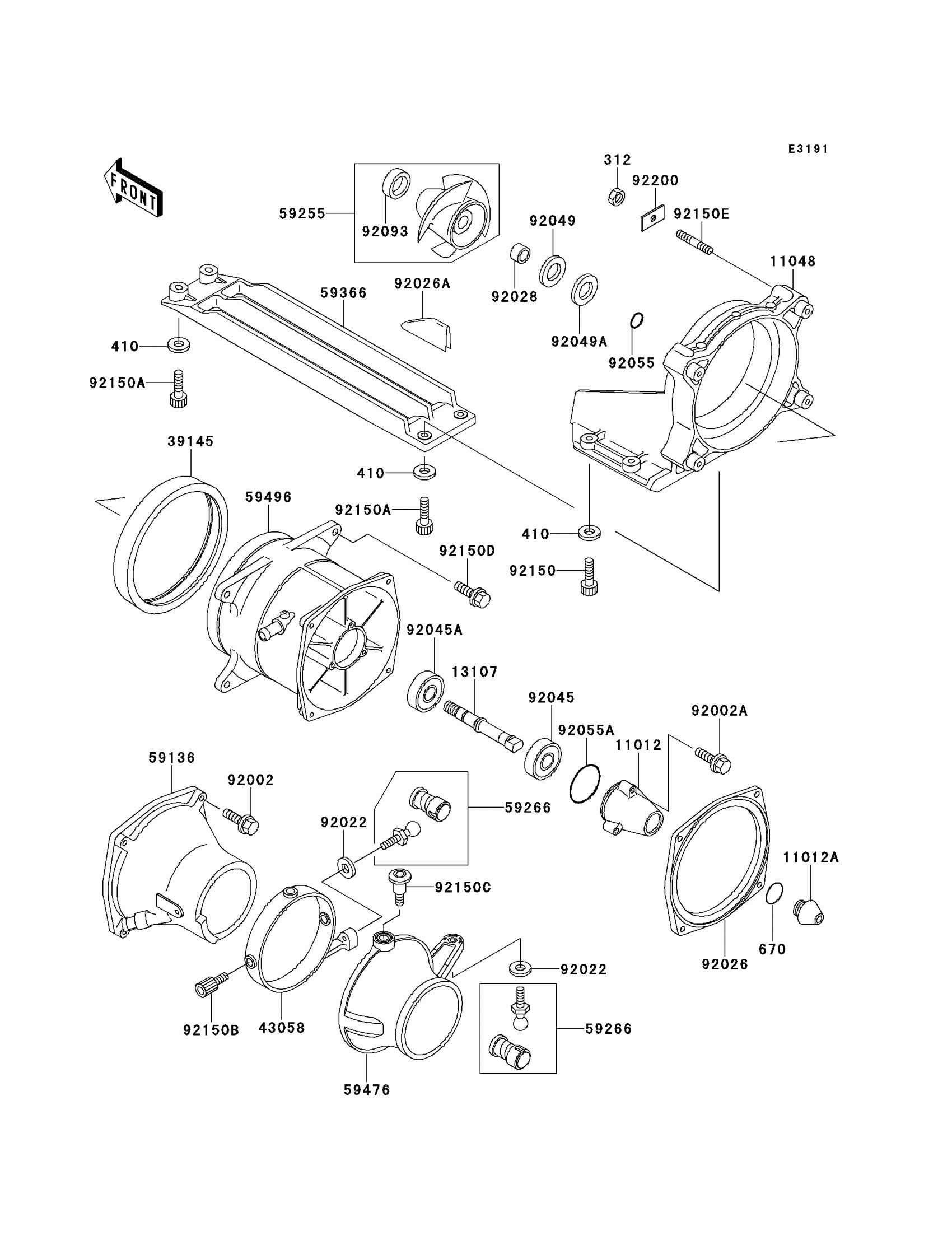

Kawasaki 900 ZXi Jet Pump Diagram

#

Description
Price

312

NUT-HEX,6MM

312R0600

$1.50

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

670

O RING,20MM

670B2020

$1.22

11012

CAP

11012-3771

$50.43

11012A

CAP

11012-3772

$10.76

11048

BRACKET

11048-3763

Unavailable

13107

SHAFT,JETPUMP

13107-3737

$81.47

39145

TRIM-SEAL

39145-3742

$45.60

43058

RING

43058-3709

$164.84

59136

NOZZLE-PUMP

59136-3738

$163.97

59255

IMPELLER-COMP

59255-3709

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3712

$111.10

59476

NOZZLE-STRG,GRAY

59476-3724-RA

$92.71

59496

VANE-GUIDE

59496-3713

$1,103.67

92002

BOLT,6X40

92002-3716

$5.52

92002A

BOLT,6X30

92002-3726

$4.69

92022

WASHER

92022-567

$2.67

92026

SPACER

92026-3730

$49.35

92026A

SPACER

92026-3731

Unavailable

92028

BUSHING

92028-3750

$36.12

92045

BEARING-BALL,62022RD

92045-3721

$19.27

92045A

BEARING-BALL,6303-132RD

92045-3722

$35.93

92049

SEAL-OIL

92049-3717

$29.29

92049A

SEAL-OIL

92049-3718

$32.39

92055

RING-O,13X1.9

92055-1021

$7.62

92055A

RING-O

92055-3741

$3.32

92093

SEAL,JET PUMP

92093-3739

$15.50

92150

BOLT,SOCKET,6X20

92150-3748

$3.92

92150A

BOLT,SOCKET,6X18

92150-3775

$4.69

92150B

BOLT

92150-3808

$26.47

92150C

BOLT

92150-3827

$18.04

92150D

BOLT,8X30

92150-3828

$6.61

92150E

BOLT

92150-3829

$5.96

92200

WASHER

92200-3740

$4.64
