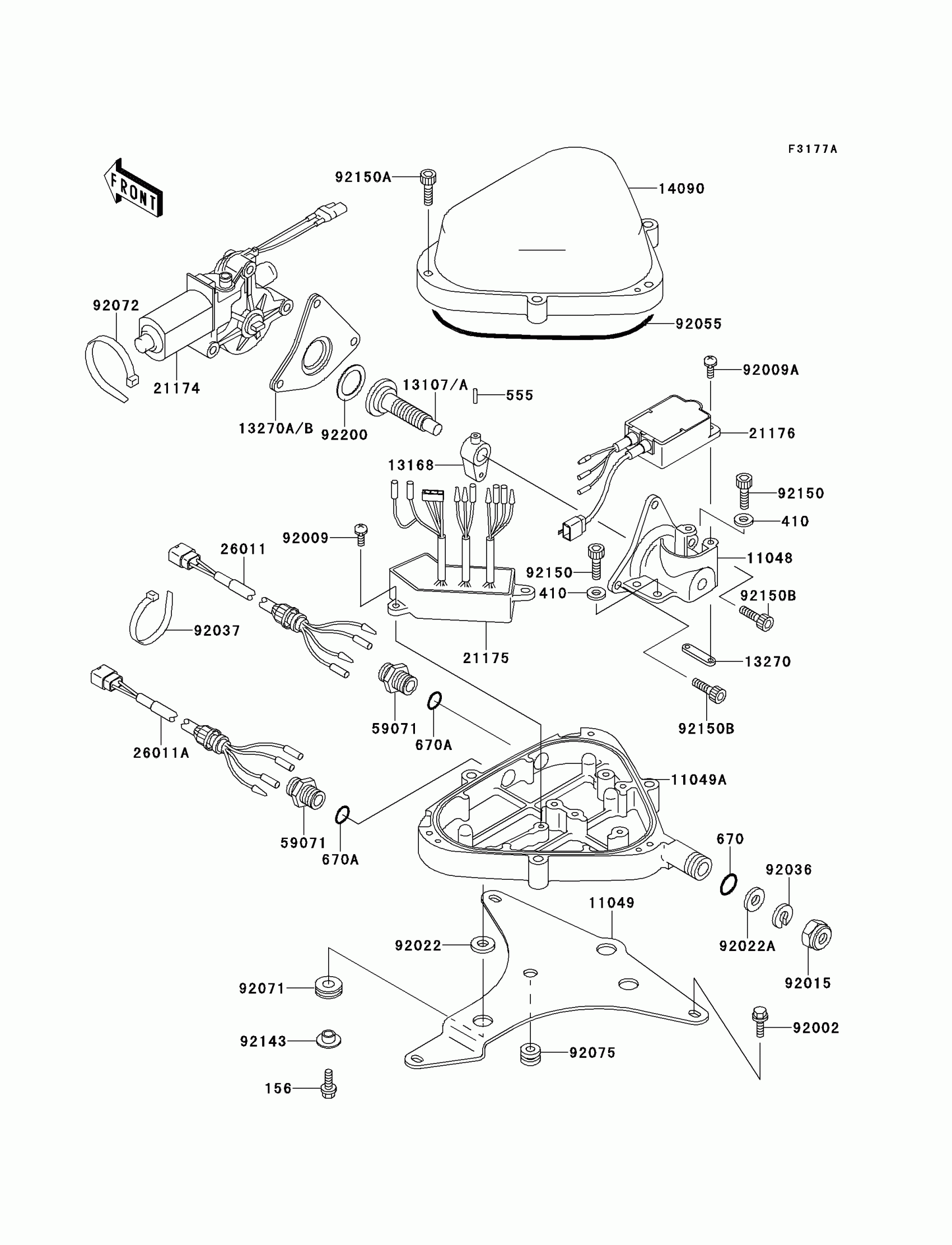

Kawasaki 900 ZXi Control(JH900-A2) Diagram

#

Description
Price

156

BOLT-WP,6X22

156R0622

$4.09

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

11048

BRACKET,MOTOR MOUNT

11048-3738

$79.17

11049

BRACKET,TILT BOX

11049-3712

Unavailable

11049A

BRACKET,MOTOR BOX,LWR

11049-3715

Unavailable

13107

SHAFT

13107-3744

Unavailable

13107A

SHAFT

13107-3748

$52.58

13168

LEVER,SLIDE

13168-3730

Unavailable

13270

PLATE,TRIM SENSOR

13270-3744

$7.33

13270A

PLATE,MOTOR MOUNT

13270-3750

Unavailable

13270B

PLATE,MOTOR MOUNT

13270-3822

$33.84

14090

COVER,MOTOR BOX,UPP

14090-3768

$172.03

21174

MOTOR-ELECTRIC

21174-3703

$607.83

21175

CONTROL UNIT-ELECTRONIC

21175-3702

Unavailable

21176

SENSOR,TRIM METER

21176-3714

Unavailable

26011

WIRE-LEAD,TRIM SWITCH

26011-3830

Unavailable

26011A

WIRE-LEAD,TRIM METER

26011-3831

Unavailable

59071

JOINT

59071-3001

$6.29

92002

BOLT,6X16

92002-3728

$4.69

92009

SCREW,5X12

92009-3740

$4.18

92009A

SCREW,4X12

92009-3807

$4.97

92015

NUT,20MM

92015-526

$29.72

92022

WASHER,6.2X20X2

92022-3714

$4.18

92022A

WASHER

92022-535

$7.34

92036

RING-SNAP

92036-501

Unavailable

92037

CLAMP

92037-1173

$3.49

92055

RING-O,ID=171

92055-3737

$13.43

92071

GROMMET

92071-3737

$5.54

92072

BAND,L=201

92072-3778

$1.84

92075

DAMPER

92075-1435

$6.45

92143

COLLAR

92143-3749

$5.23

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,SOCKET,6X30

92150-3822

$4.31

92150B

BOLT,SOCKET,6X25

92150-3823

$4.40

92200

WASHER,22.5X32X1

92200-3742

Unavailable

555

PIN-SPRING,3X14

555B0314

$4.67

670

O RING,11MM

670B2011

$1.28

670A

O RING,16MM

670B2016

$1.36
