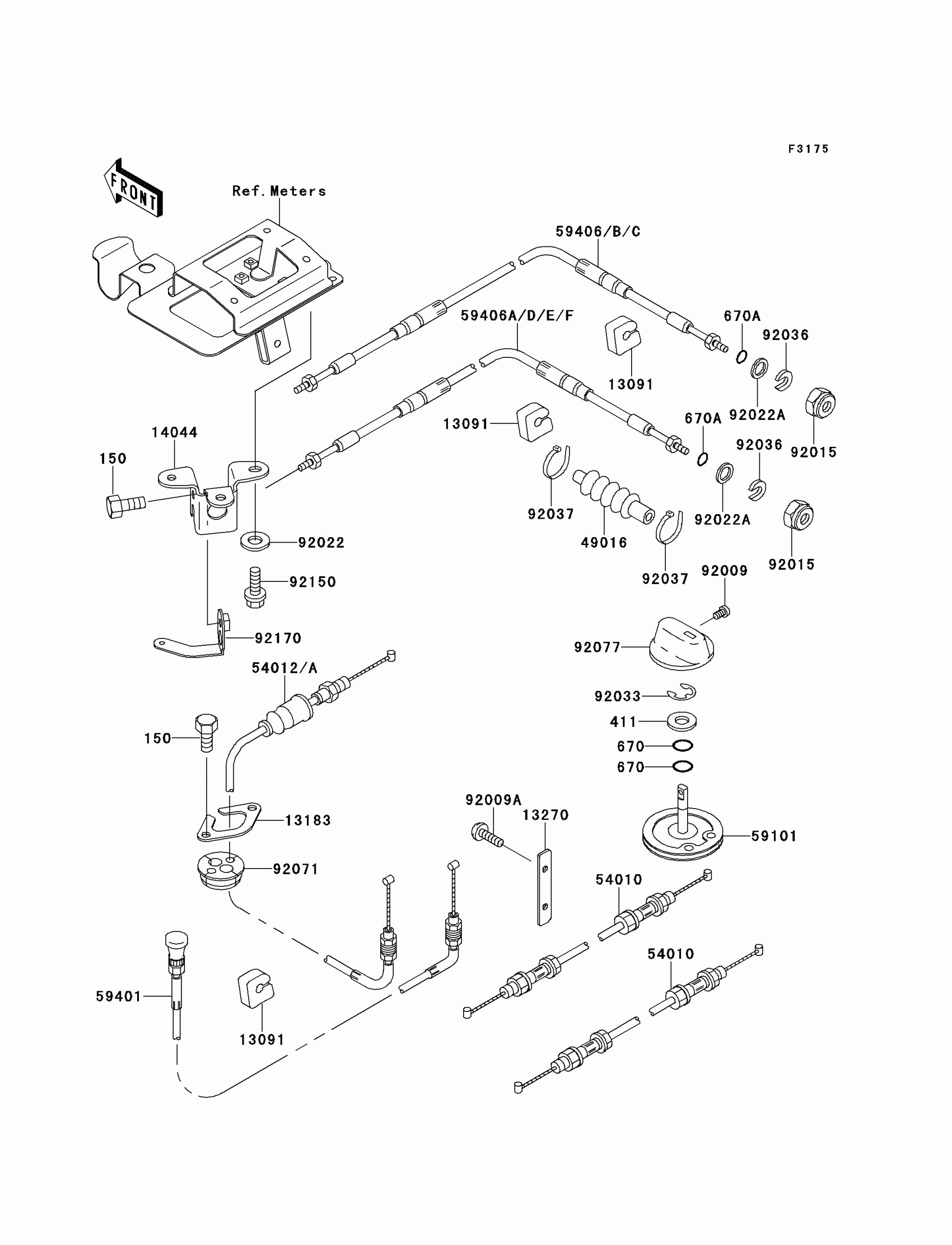

Kawasaki 900 ZXi Cables Diagram
#
Description
Price
150
BOLT-WS,6X14
150R0614
$5.96
411
WASHER-PLAIN,8MM
411S0800
$3.09
670
O RING,8MM
670B1508
$1.29
670A
O RING,11MM
670B2011
$1.28
13091
HOLDER
13091-3712
$4.65
13183
PLATE
13183-3810
Unavailable
13270
PLATE,FUEL TAP
13270-3798
$7.62
14044
HOLDER-CABLE,STEERING
14044-3730
$56.27
49016
COVER-SEAL,TILT CABLE
49016-3702
$4.10
54010
CABLE,FUEL TAP
54010-3710
Unavailable
54012A
CABLE-THROTTLE
54012-3754
$56.78
59101
REEL,SHIFT CABLE
59101-3709
$58.03
59401
CABLE-CHOKE
59401-3714
$45.79
59406B
CABLE-STRG
59406-3746
$158.12
59406F
CABLE-STRG,TILT
59406-3760
Unavailable
92009
SCREW,4X8
92009-3729
$6.61
92009A
SCREW,5X16
92009-3789
$2.97
92015
NUT,20MM
92015-526
$29.72
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92022A
WASHER
92022-535
$7.34
92033
RING-SNAP,7MM
92033-3704
$2.94
92036
RING-SNAP
92036-501
Unavailable
92037
CLAMP
92037-1173
$3.49
92071
GROMMET,HARNESS
92071-3790
$9.64
92077
KNOB,FUEL TAP
92077-3725
Unavailable
92150
BOLT,6X20
92150-3758
$5.11
92170
CLAMP,STEERING CABLE
92170-3744
$10.19
