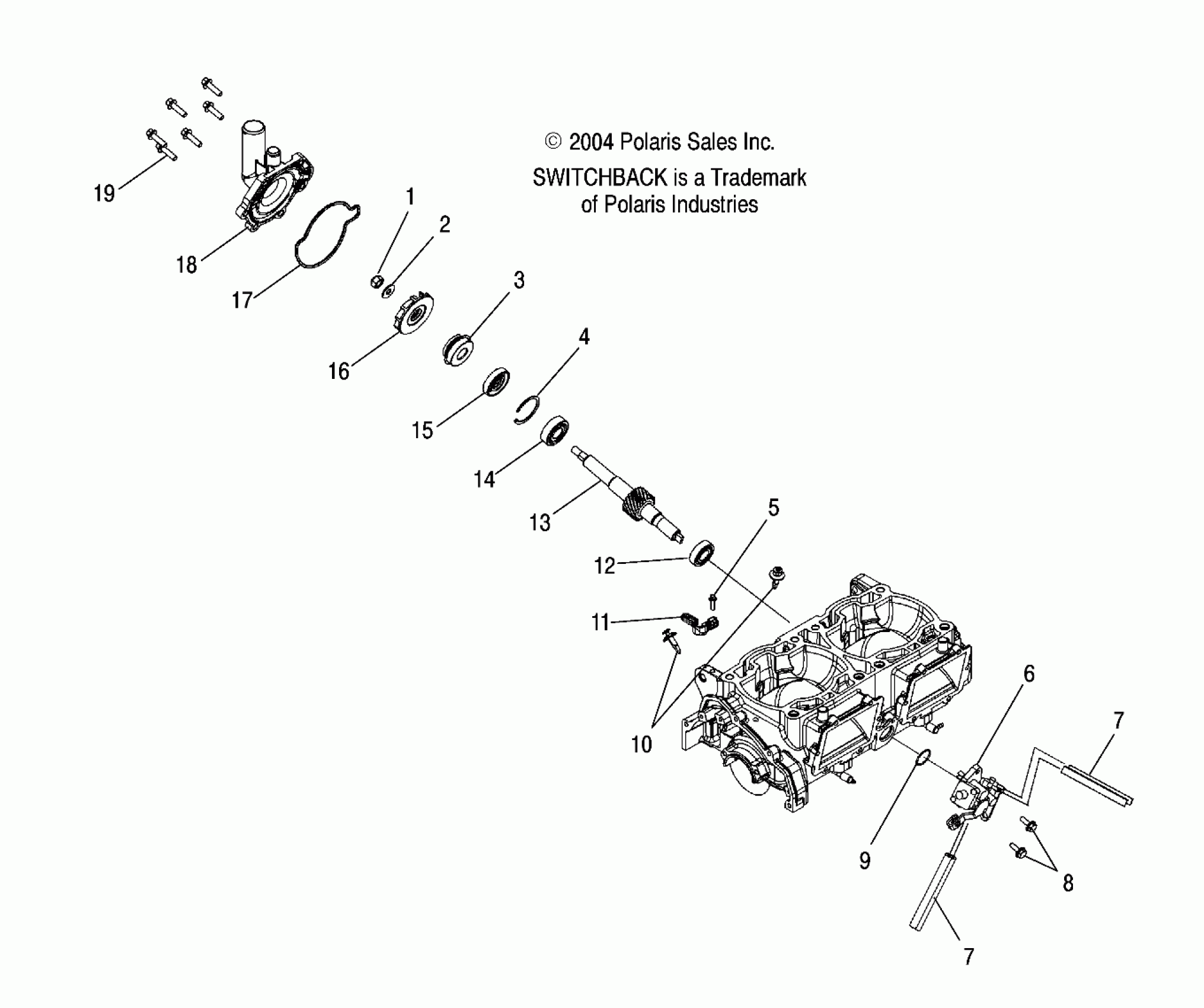

Polaris 900 SWITCHBACK - S05PS8DS WATER and OIL PUMP - S05PS8DS (4999200869920086D02) Diagram

#

Description
Price

1

Nut, Hex, Nylok

7546804

$1.49

2

Washer, Flat

7555874

$2.39

3

Seal, Waterpump

3610107

$58.08

4

Ring, Retaining

7710527

Unavailable

5

SCREW

7517398

$3.19

6

Asm., Oil Pump

2520449

Unavailable

7

LINE, FUEL

8450061-600

Unavailable

7

LINE, FUEL

8450061-600

Unavailable

8

SCREW

7517277

$3.19

9

O-Ring

5411293

Unavailable

10

RIVET

7621509

$1.49

11

Retainer, Wire

5435631

$6.23

12

Bearing, Ball

3514474

Unavailable

13

Kit, Driveshaft w/Bearings [Incl. 3,4,12-15]

2202813

Unavailable

14

Bearing, Ball

3514407

Unavailable

15

Seal, Oil

5412217

Unavailable

16

Impeller, Waterpump

5435314

Unavailable

17

Seal, Waterpump

5412367

Unavailable

18

Asm., Waterpump Cover

1202459

Unavailable

19

SCREW

7518385

$3.99
