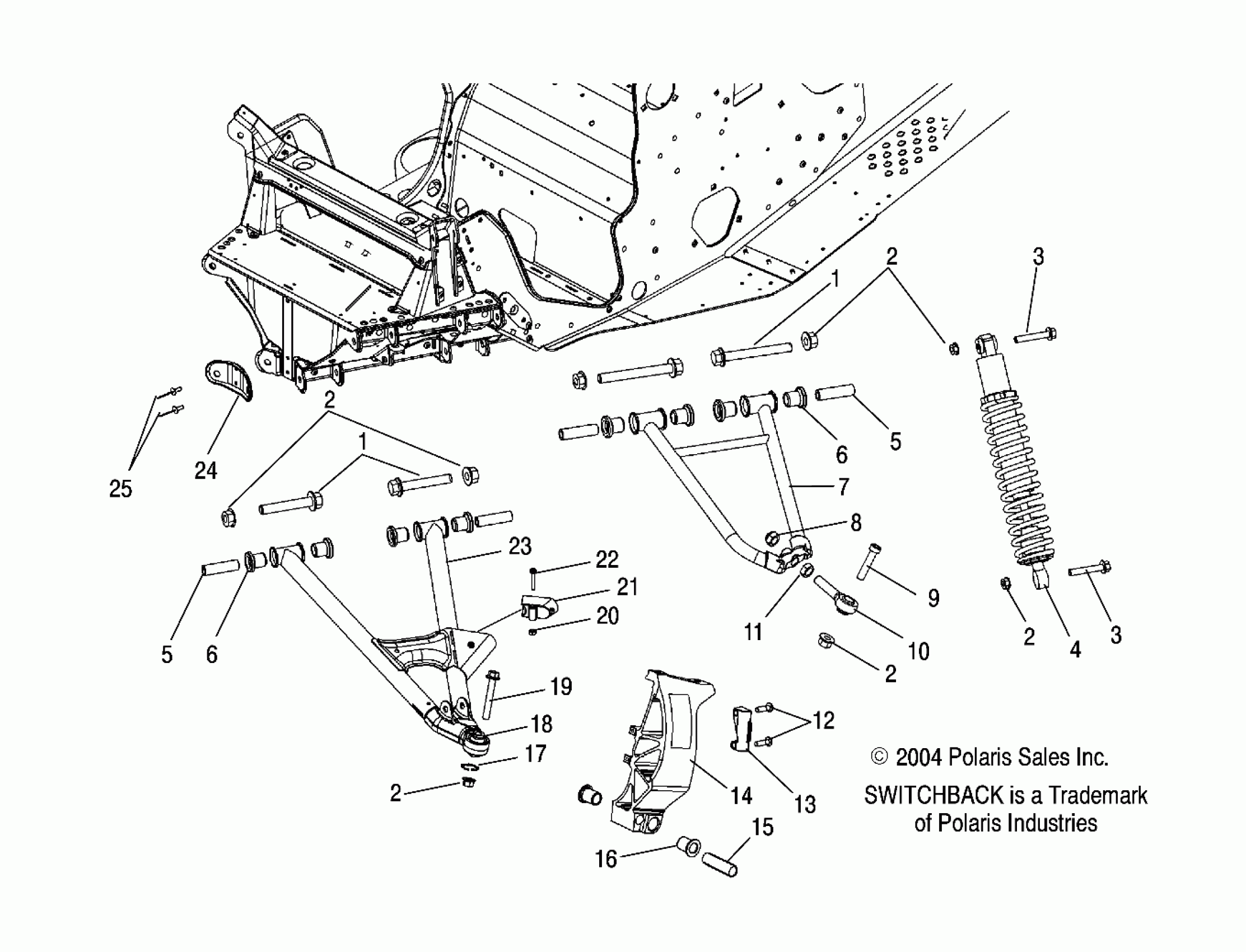

Polaris 900 SWITCHBACK - S05PS8DS SUSPENSION, FRONT - S05PS8DS (4999200869920086B02) Diagram

#

Description
Price

1

SCREW

7518384

$3.99

1

SCREW

7518384

$3.99

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

3

Screw

7518278

$8.99

3

Screw

7518278

$8.99

4

Retainer, Spring, Slotted

5630580

Unavailable

4

Spring, Compression, IFS, Indy Red

7041576-293

$52.60

4

Shock, IFS [Select]

7042258

Unavailable

5

Shaft, Pivot

5133860

$11.60

5

Shaft, Pivot

5133860

$11.60

6

BUSHING, PIVOT

5434932

$6.39

6

BUSHING, PIVOT

5434932

$6.39

7

Kit, Upper Control Arm, LH [Incl. 2,5-8,10,11]

2202932

$195.99

7

Asm., Arm, Upper, Cloud Silver, RH [Incl. 2,5-8,10,11]

2202933

$195.99

8

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

9

Screw

7510003

$4.99

10

Rod End

7061124

$48.56

11

Nut, Jam

7542711

$2.39

12

SCREW

7515177

$3.19

13

Stop, Steering, LH

5631603

$4.95

13

Stop, Steering, RH

5631604

$4.95

14

Asm., Spindle, Red, LH [Incl. 12,13,16 and Decal]

1822724

Unavailable

14

Asm., Spindle, Red, RH [Incl. 12,13,16 and Decal]

1822725

$236.99

15

BUSHING, PIVOT

5010158

$19.99

16

BUSHING-SKI PIVOT

5133983

$14.99

17

RING, RETAINING

7710539

$2.39

18

Bearing, Spherical, Lower

7061111

Unavailable

19

Screw

7518276

Unavailable

20

Nut, Nylok

7541925

$1.49

21

Slide, Sway Bar

5435738

$24.27

22

Screw

7510504

$6.76

23

Arm., Lower Control, Cloud SIlver, RH [Incl. 2,5,6,17,18,20-22]

2202935

Unavailable

23

Kit, Lower Control Arm, LH [Incl. 2,5,6,17,18,20-22]

2202934

Unavailable

24

BRACE, FRONT LOWER A-ARM

5247372

$54.99

25

RIVET-3/16-.090-.290

7661637

$1.49
