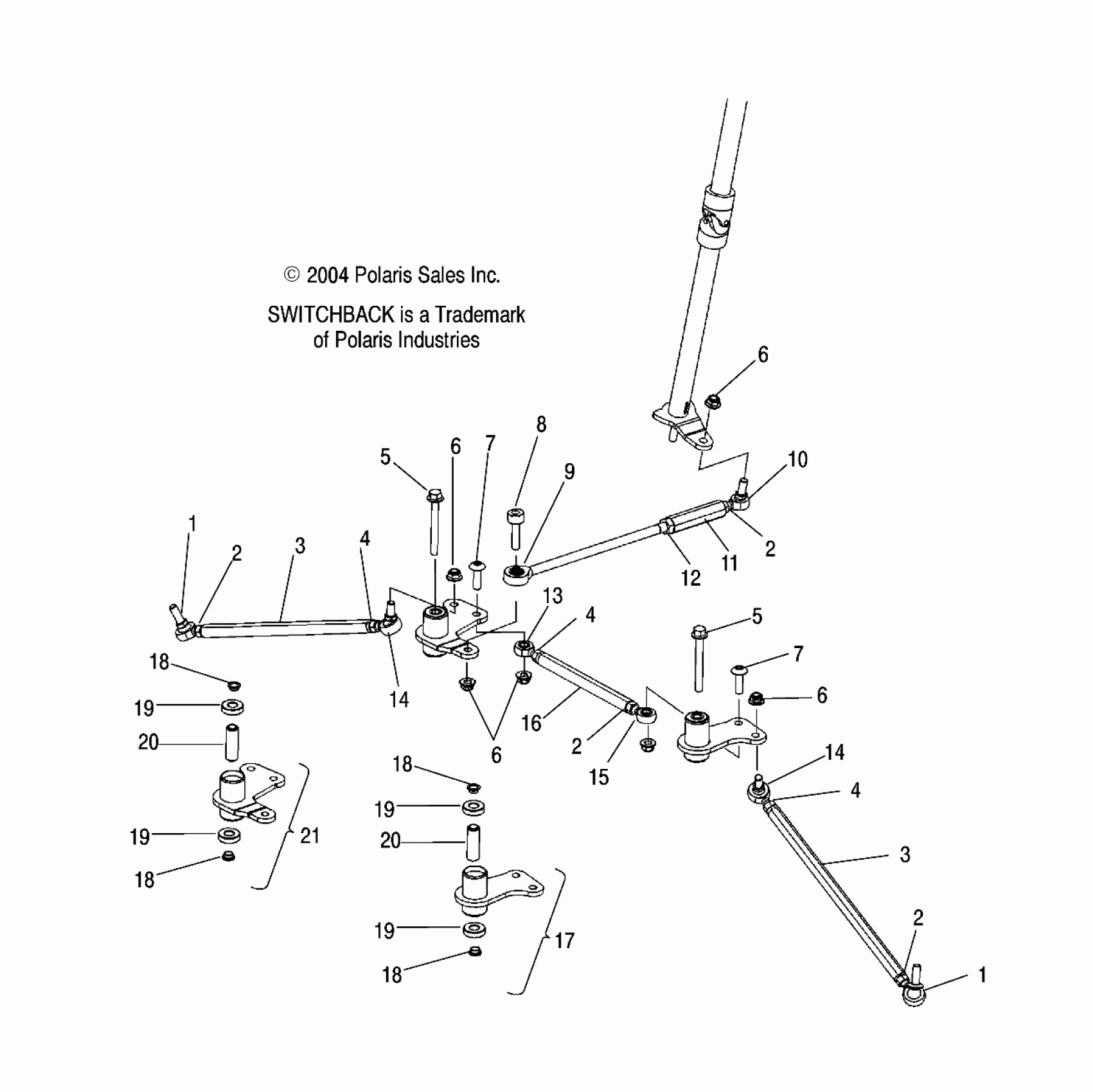

Polaris 900 SWITCHBACK - S05PS8DS STEERING - S05PS8DS (4999200869920086B05) Diagram

#

Description
Price

1

Rod End, RH

7061057

$48.56

1

Rod End, RH

7061057

$48.56

2

Nut, Hex, RH

7542401

$2.39

2

Nut, Hex, RH

7542401

$2.39

2

Nut, Hex, RH

7542401

$2.39

2

Nut, Hex, RH

7542401

$2.39

3

Rod, Tie

5334341

$26.39

3

Rod, Tie

5334341

$26.39

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

5

Screw, Flange

7518277

$19.99

5

Screw, Flange

7518277

$19.99

6

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-3/8-24 FLG LOC

7547263

$3.19

7

SCREW

7518372

$2.99

7

SCREW

7518372

$2.99

8

Bolt

7515545

$5.59

9

Rod End, LH

7060000

Unavailable

10

ROD END, RH

7061084

$48.56

11

Rod, Draglink

5330002

$27.60

12

Nut, Jam, LH

7547028

$2.39

13

Rod End, LH

7060001

$48.56

14

Rod End, LH

7061055

$48.56

14

Rod End, LH

7061055

$48.56

15

Rod End, RH

7060002

$48.56

16

Rod, Steering Rack

5334325

Unavailable

17

Arm, Idler

1821419

Unavailable

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

20

Spacer, Tube Pitman/Idler Arms

5133952

Unavailable

20

Spacer, Tube Pitman/Idler Arms

5133952

Unavailable

21

Asm., Pitman Arm

1821417

$111.99
