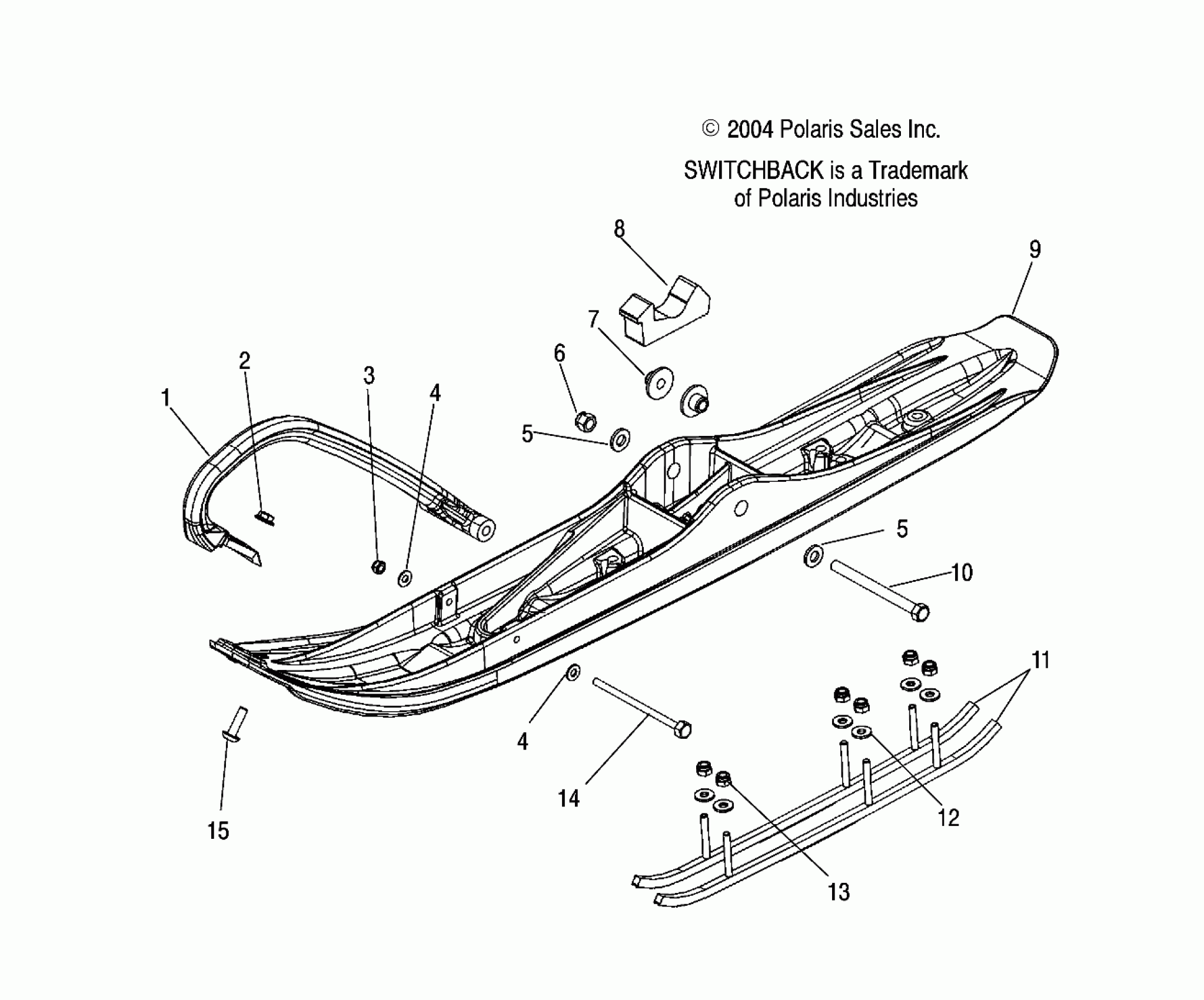

Polaris 900 SWITCHBACK - S05PS8DS SKI - S05PS8DS (4999200869920086B01) Diagram

#

Description
Price

1

Toe, Plastic Ski, Black

5434618-070

Unavailable

2

Nut, Flange

7542321

$1.49

3

Nut, Nylok

7542122

$1.49

4

Washer, Flat

7558301

$1.49

4

Washer, Flat

7558301

$1.49

5

WASHER

7556130

$6.39

5

WASHER

7556130

$6.39

6

NUT-3/8-24 FLG LOC

7547263

$3.19

7

Bushing

5132637

$19.99

8

Stop, Rubber

5412701

$12.57

9

Asm., Ski, Black, LH [Incl. 7]

1821335-070

Unavailable

9

Asm., Ski, Black, RH [Incl. 7]

1821336-070

$214.51

10

Screw

7517968

$9.59

11

Kit, Skag, Carbide, 4 Inch 60 Degree

2874334

$74.99

12

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

BOLT

7518047

$5.59

15

SCREW

7518070

$5.59
