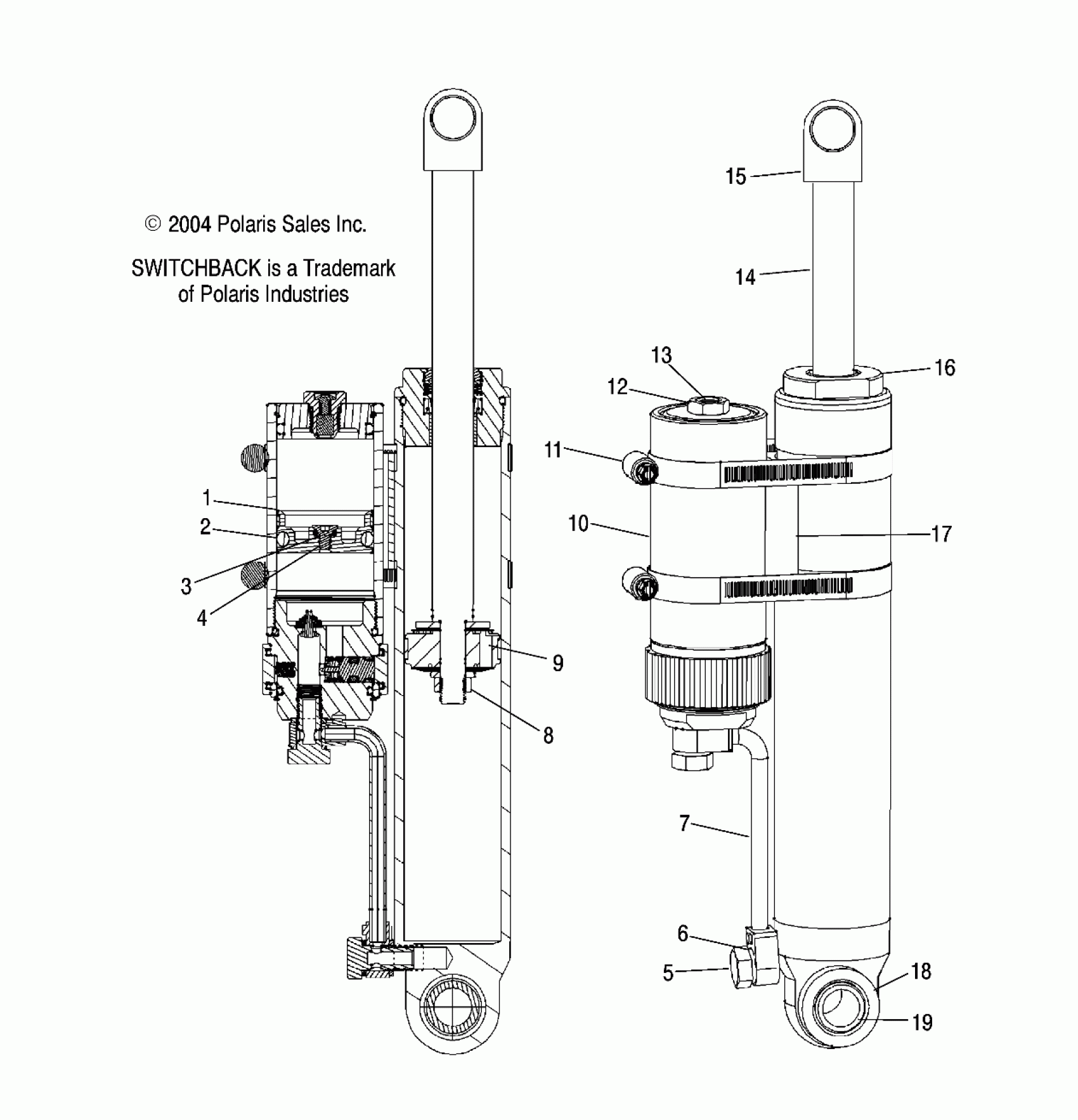

Polaris 900 SWITCHBACK - S05PS8DS SHOCK REAR TRACK - S05PS8DS (4999200869920086C12) Diagram

#

Description
Price

-

Shock, Rear Track IFP

7043046

Unavailable

1

IFP

1700203

$45.59

2

O-Ring, IFP

1700048

$11.60

3

Screw, Bleed, O-Ring

1700016

$7.99

4

Screw, Bleed, IFP

1700054

$6.19

5

Bolt, Banjo

1700169

Unavailable

6

Washer, Copper

1700168

$15.87

7

Line, Hard

1700232

$74.39

8

Nut

1700057

$9.59

9

Washer, Back Up

1700078

$9.59

9

Band, Wear

1700031

$28.32

9

Washer, Top Out

1700077

$10.39

9

Asm., Piston

1700107

$29.99

10

Body, Reservoir

1700198

$58.39

11

Clamp, Hose

1700197

$21.19

12

Asm., Pressure Valve

1700053

Unavailable

13

Screw, Valve

1700055

$9.59

14

Shaft

1700220

Unavailable

15

Mount, Upper

1700024

Unavailable

16

Asm., Cylinder Head

1700156

$74.99

17

Isolator

1700162

Unavailable

18

Bushing

1700073

$11.99

19

Sleeve

1700069

$15.99
