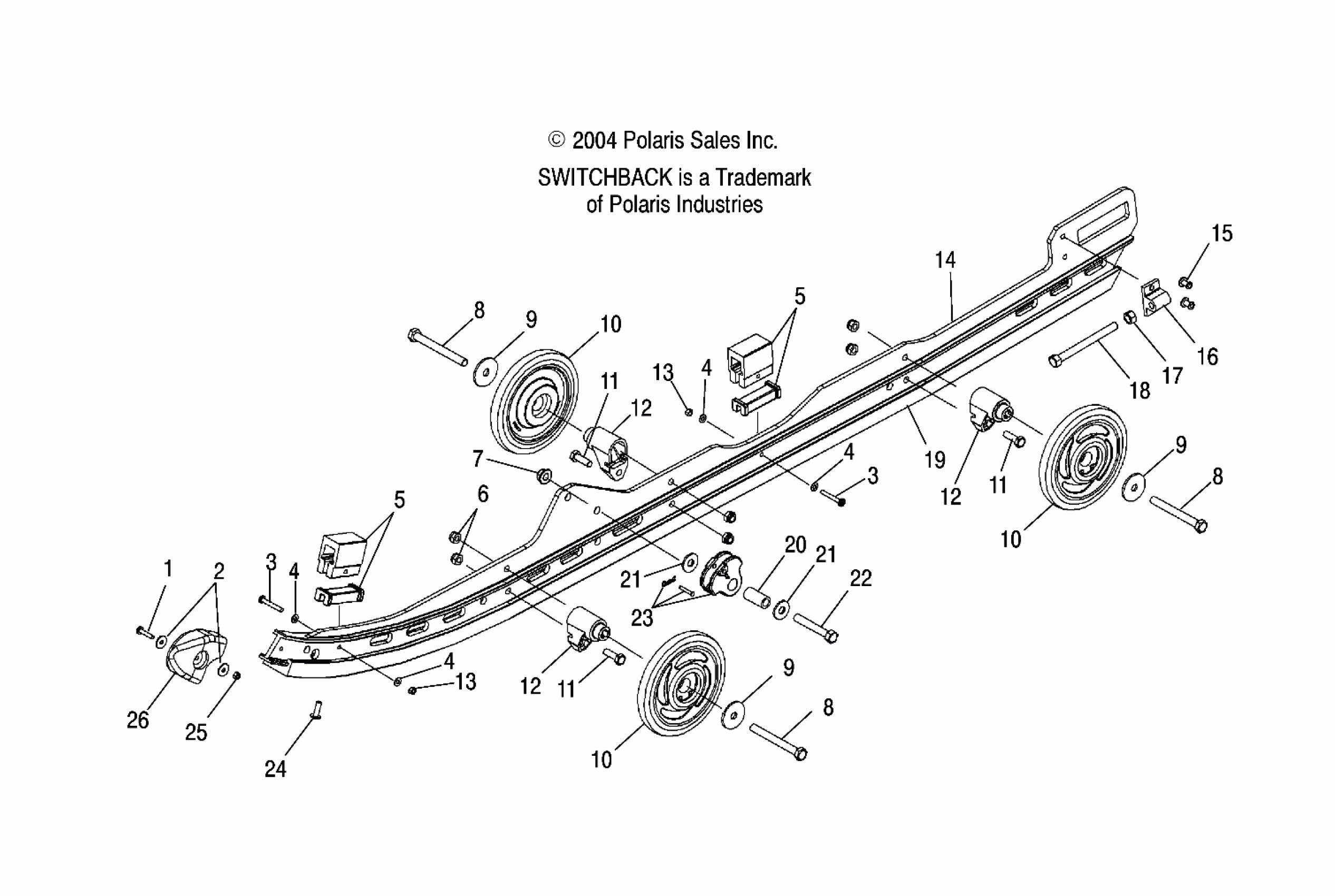

Polaris 900 SWITCHBACK - S05PS8DS RAIL ASSEMBLY - S05PS8DS (4999200869920086B10) Diagram

#

Description
Price

1

Bolt

7518335

Unavailable

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-3/8-24 FLG LOC

7547263

$3.19

8

Screw

7515346

$5.59

8

Screw

7515346

$5.59

8

Screw

7515346

$5.59

9

Washer, Spring

7556179

$7.99

9

Washer, Spring

7556179

$7.99

9

Washer, Spring

7556179

$7.99

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

10

Asm., Wheel, Scrolled, Bright Silver

1590387-244

$52.60

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

10

Asm., Wheel, Scrolled, Bright Silver

1590387-244

$52.60

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

10

Asm., Wheel, Scrolled, Bright Silver

1590387-244

$52.60

11

BOLT

7515317

$4.79

11

BOLT

7515317

$4.79

11

BOLT

7515317

$4.79

12

BLOCK, WHEEL MOUNT

5631446

$24.27

12

BLOCK, WHEEL MOUNT

5631446

$24.27

12

BLOCK, WHEEL MOUNT

5631446

$24.27

13

Nut, Nylok

7541925

$1.49

13

Nut, Nylok

7541925

$1.49

14

Asm., Rail, 144, RH [Incl. 1-16,25,26]

1542034

Unavailable

14

Asm., Rail, 144, LH [Incl. 1-16,25,26]

1542033

$383.49

15

RIVET

7621501

$2.39

16

BLOCK, IDLER BOLT ADJUSTABLE

5130530

$32.37

17

NUT

7542404

$1.59

18

SCREW

7517227

$7.19

19

Hi-Fax

5521581-309

$40.46

20

SPACER

5333948

$6.39

21

WASHER

7555983

Unavailable

21

WASHER

7555983

Unavailable

22

Bolt

7515438

$4.79

23

Pin, Clevis

7661123

$3.99

23

GUIDE, SPRING SQUARE

5434334

$28.32

23

PIN, HITCH

7661644

$2.39

24

Screw

7515199

$1.49

25

Nut, Nylok

7541925

$1.49

26

Cap, Rail Tip

5435527

$27.78
