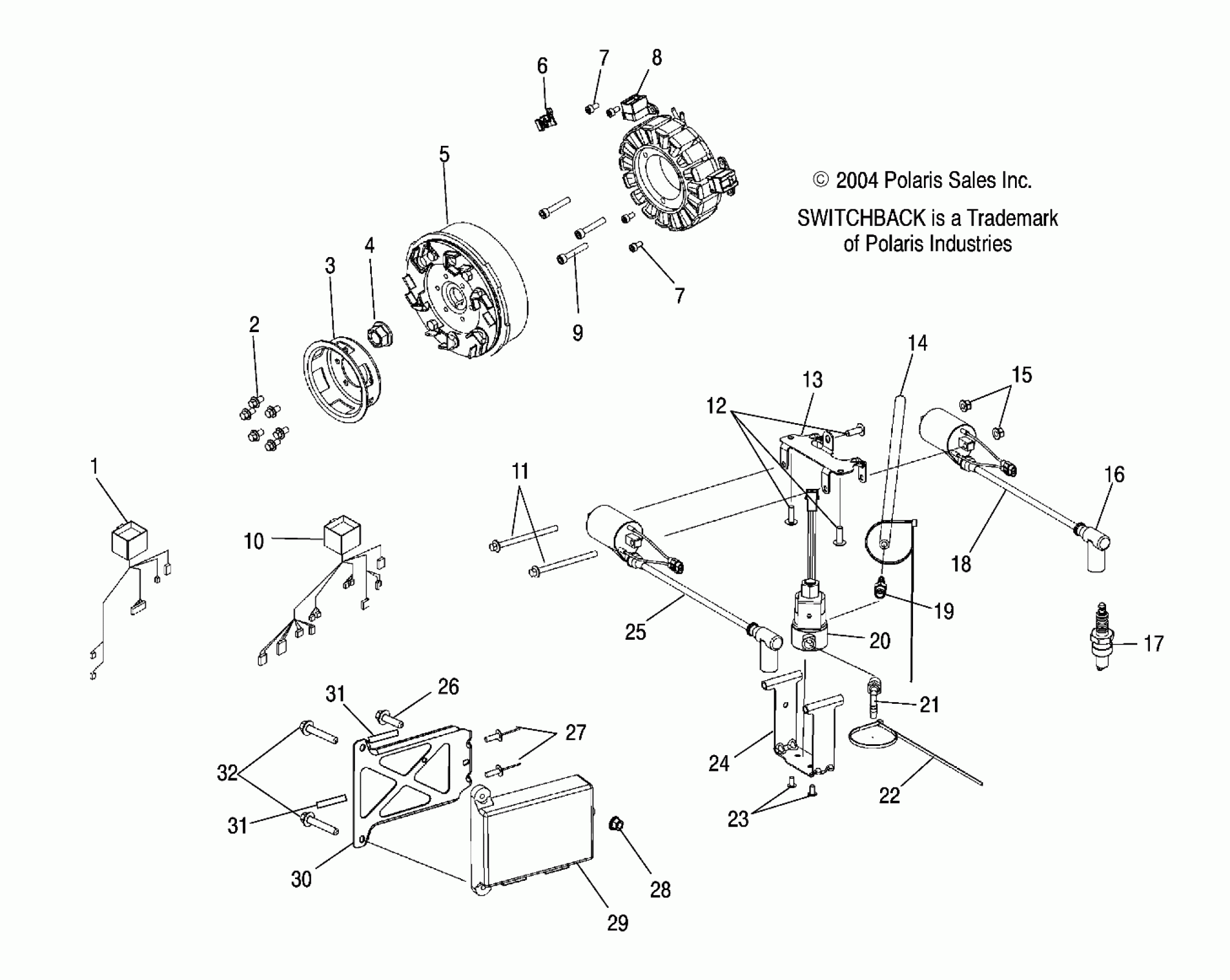

Polaris 900 SWITCHBACK - S05PS8DS MAGNETO - S05PS8DS (4999200869920086D04) Diagram

#

Description
Price

1

Harness, Ignition, Injector

4011107

$265.70

2

Screw

7517278

$5.59

3

Pulley, Starter

3021618

$24.27

4

Nut, Flange

7518299

$4.79

5

Flywheel

4011119

Unavailable

6

Shield, Wire

5435505

Unavailable

7

SCREW

7517847

$3.19

7

SCREW

7517847

$3.19

8

Stator

4010727

Unavailable

9

SCREW

7517848

$5.59

10

Harness, Ignition

4011106

$275.22

11

Screw, Flange

7518407

$3.19

12

Screw

7515199

$1.49

13

Bracket, Engine, Coil

5248548

$4.95

14

Line, Fuel

8450040-600

Unavailable

15

NUT-M6 FLANGE,NYLOC

7547274

$1.49

16

Cap, Spark Plug

4020159

Unavailable

17

Plug, Spark, RN57YCC

3070190

$3.99

18

Coil, Ignition, PTO

4011104

Unavailable

19

Fitting

7050001

$4.79

20

Valve, Control

4011075

Unavailable

21

Fitting, 90 Degree

7050000

$8.79

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

BOLT

7518321

$3.19

24

Bracket, Exhaust, Solenoid

5248537

$4.95

25

Coil, Ignition, Magneto

4011105

$115.08

26

Screw

7515111

$7.19

27

RIVET-3/16-.090-.290

7661637

$1.49

28

NUT, NYLOK, FLANGED

7542153

$1.59

29

Unit, Engine Control

4011081

$468.56

30

Bracket, ECU

5247732

$4.95

31

PAD-BATTERY

5810290

$7.27

31

PAD-BATTERY

5810290

$7.27

32

SCREW

7516827

$6.39
