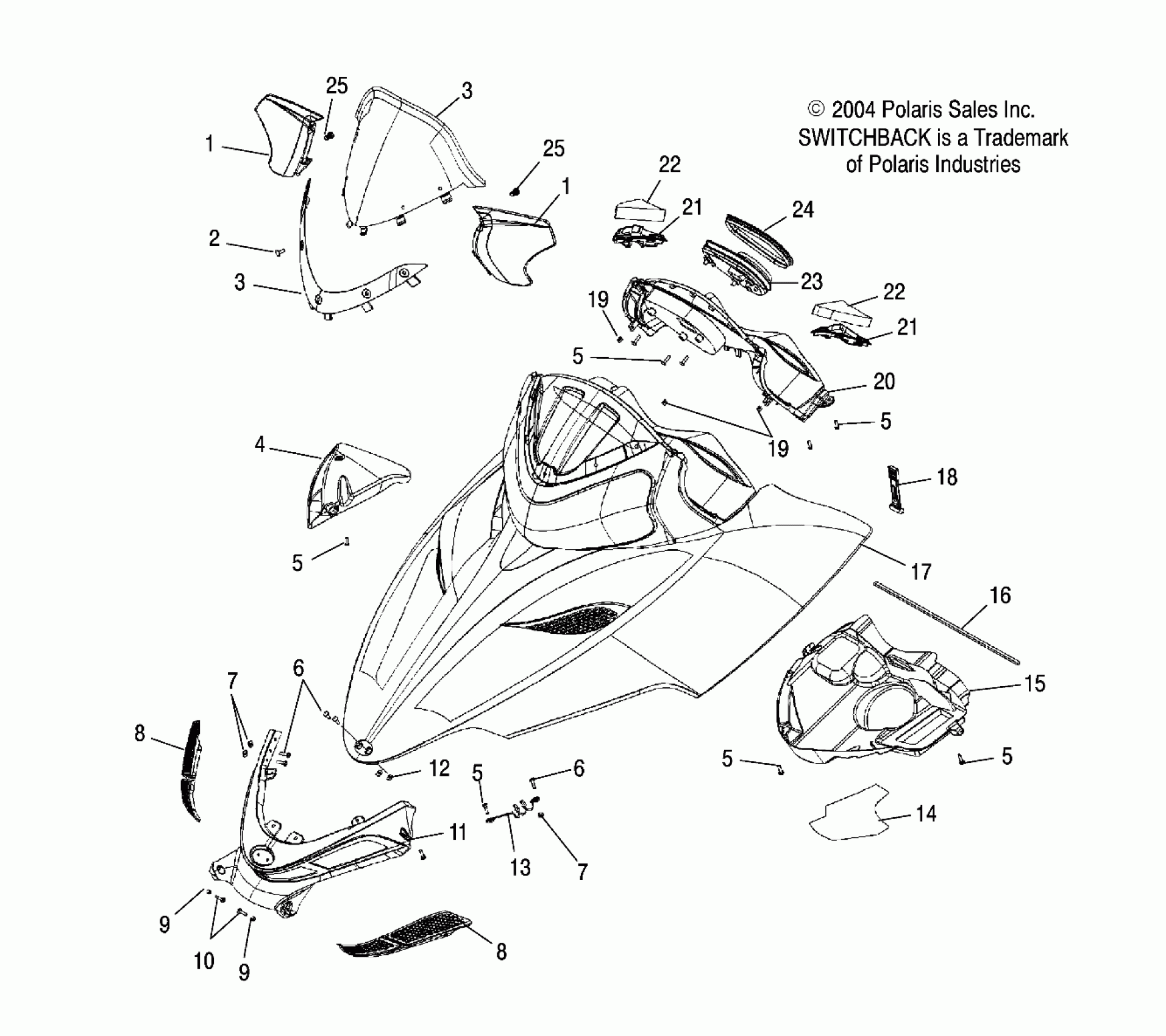

Polaris 900 SWITCHBACK - S05PS8DS HOOD - S05PS8DS (4999200869920086A09) Diagram

#

Description
Price

1

Shield, Side, Short, Smoke, LH

5435900

$36.41

1

Shield, Side, Short, Smoke, RH

5435901

$36.41

1

Shield, Side, Short, Smoke, LH

5435900

$36.41

1

Shield, Side, Short, Smoke, RH

5435901

$36.41

2

Rivet, Plastic

7621509

$1.49

3

RETAINER, WINDSHIELD

5435520

$63.99

3

Windshield, Short, Smoke

5435902

Unavailable

3

RETAINER, WINDSHIELD

5435520

$63.99

3

Windshield, Short, Smoke

5435902

Unavailable

4

Asm., Brake Duct

2633047

$87.99

4

Foil

5812735

$4.95

5

SCREW

7518238

$3.99

5

SCREW

7518238

$3.99

5

SCREW

7518238

$3.99

5

SCREW

7518238

$3.99

5

SCREW

7518238

$3.99

5

SCREW

7518238

$3.99

6

Screw

7518281

$2.39

6

Screw

7518281

$2.39

7

Nut, Tab

7547288

$3.99

7

Nut, Tab

7547288

$3.99

8

SCREEN, HINGE, BLACK, RH

5435849-070

$36.41

8

SCREEN, HINGE, BLACK, LH

5435848-070

$36.41

8

SCREEN, HINGE, BLACK, RH

5435849-070

$36.41

8

SCREEN, HINGE, BLACK, LH

5435848-070

$36.41

9

BUSHING

5334429

$5.99

9

BUSHING

5334429

$5.99

10

SCREW

7518285

$3.19

11

Hinge, Grill, Hood, Black

5435287-070

$80.94

12

Nut, Nylok

7541925

$1.49

13

CABLE, HOOD, RETAINER

7081133

$24.27

14

Foil, Headlight Access Cover

5812738

$4.95

15

Cover, Headlight Access

5435775

$24.79

16

FOAM, SEAL

5812782

$32.37

17

Asm., Hood, Black [Incl. Foam/Foil]

2633020-177

$678.57

18

STRAP-AIRBOX TOP

5433150

$24.27

19

NUT, U-TYPE

7670112

$2.39

19

NUT, U-TYPE

7670112

$2.39

20

Pod, Instrument w/Switch

5435793-070

$45.59

21

Filter, Cartridge, RH

5435777

$19.99

21

FILTER, CARTRIDGE, RH

5435776

$14.27

21

Filter, Cartridge, RH

5435777

$19.99

21

FILTER, CARTRIDGE, RH

5435776

$14.27

22

FILTER, FOAM

5812688

$5.65

22

FILTER, FOAM

5812688

$5.65

23

Battery, Clock

4011149

$11.32

23

ASM., GAUGE, MULTI FUNCTION

2410375

$504.99

24

Band, Mounting, Gauge

5412360

$13.99

25

Clip, X-Mas Clip

7670101

$2.39

25

Clip, X-Mas Clip

7670101

$2.39
