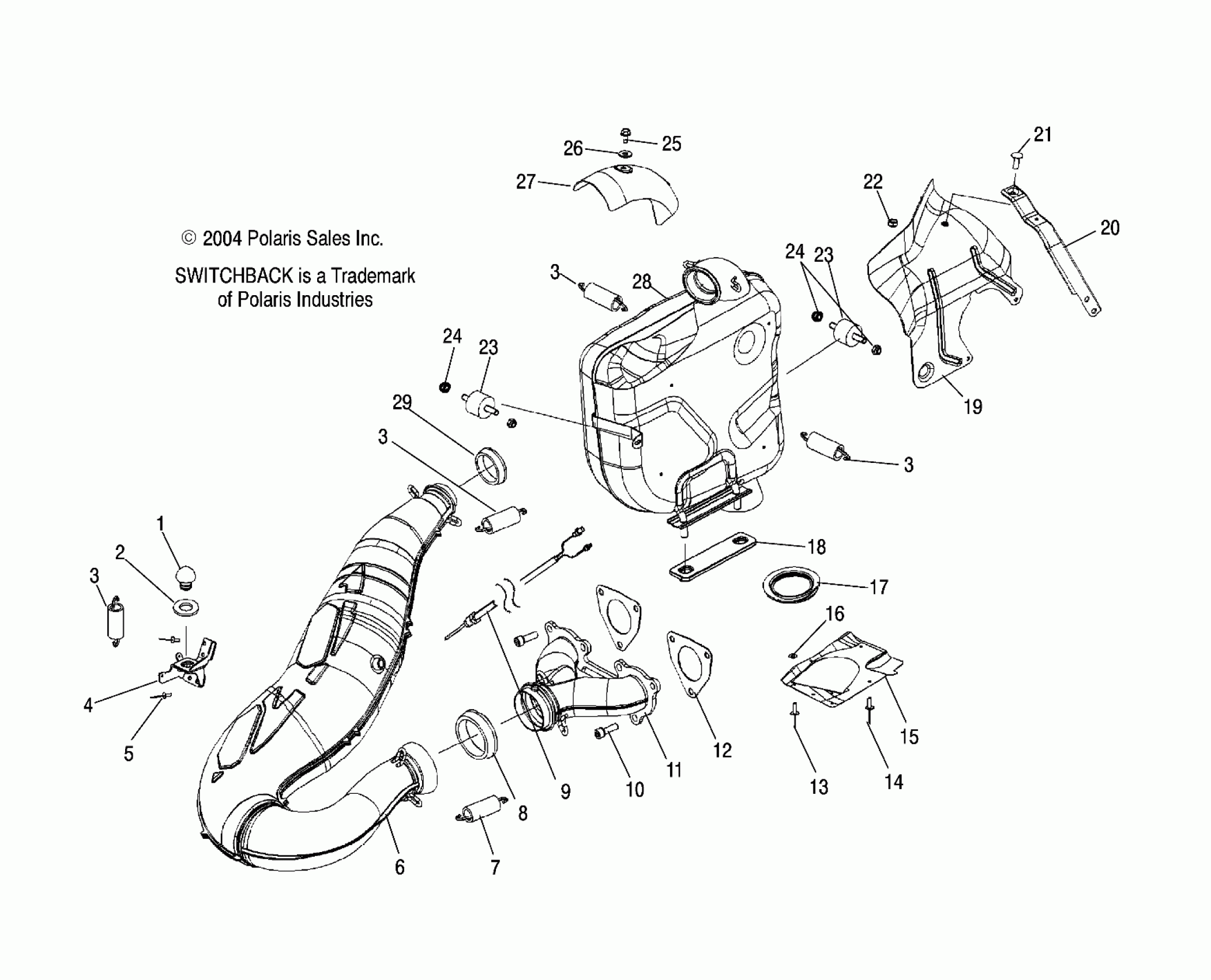

Polaris 900 SWITCHBACK - S05PS8DS EXHAUST - S05PS8DS (4999200869920086C05) Diagram

#

Description
Price

1

Dampener, Vibration w/Ribs

5411576

$7.99

2

WASHER

7556004

$7.19

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

4

Bracket, Chassis Tuned Pipe

1261403

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

Clamp, Worm Drive, .44 x 3.75

7080812

$19.99

6

Clamp, Worm Drive, .44 x 5.50

7080808

Unavailable

6

Clamp, Worm Drive, .44 x 6.50

7080811

$11.99

6

Clamp, Worm Drive, .44 x 7.00

7081197

$5.43

6

Matte, Tuned Pipe, Top

5812651

$12.70

6

Cover, Tuned Pipe, Top

5247251

$76.99

6

Asm., Tuned Pipe

1261470

Unavailable

6

Matte, Tuned Pipe, Bottom

5812652

$12.70

6

Cover, Tuned Pipe, Bottom

5247250

$53.59

7

Spring

7042332

$4.84

8

Seal, Exhaust, Socket

3610113

$36.41

9

Sensor, Exhaust Temperature

4010528

Unavailable

10

Screw

7517322

$2.39

11

Manifold, Black

1261384-029

Unavailable

12

Gasket, Exhaust

5812436

$8.49

13

RIVET

7621467

$1.49

14

Rivet

7661136

Unavailable

15

Deflector, Exhaust

5248422

Unavailable

16

WASHER

7555792

$4.79

17

BOOT, OUTLET, RESONATOR

5412736

Unavailable

18

Grommet, Resonator, Support

5412425

$7.99

19

Duct, Heat

5248737

$127.60

20

Bracket, Recoil Housing

5248460

$10.71

21

Screw

7515199

$1.49

22

Nut, FLEXLOC

7542103

$5.59

23

Mount, Rubber, Isolator

3021398

$10.39

23

Mount, Rubber, Isolator

3021398

$10.39

24

NUT, NYLOK, FLANGED

7542153

$1.59

24

NUT, NYLOK, FLANGED

7542153

$1.59

25

Screw

7512208

$3.99

26

Washer, Flat

7558301

$1.49

27

Shield, Resonator Inlet, Black

5248371-029

$82.39

28

Washer, Flat

7558301

$1.49

28

Screw

7512208

$3.99

28

Screw

7512017

$4.79

28

Shield, Resonator Inlet, Black

5248371-029

$82.39

28

Matte, Resonator Inlet

5812667

$8.23

28

Asm., Resonator

1261472

$565.29

28

Cover, Resonator, LH

5248302

$58.39

28

Cover, Resonator, RH

5248303

$58.39

28

Matte, Resonator, LH

5812665

$29.51

28

Matte, Resonator, RH

5812666

$29.51

29

SEAL, EXHAUST

3610114

$28.32
