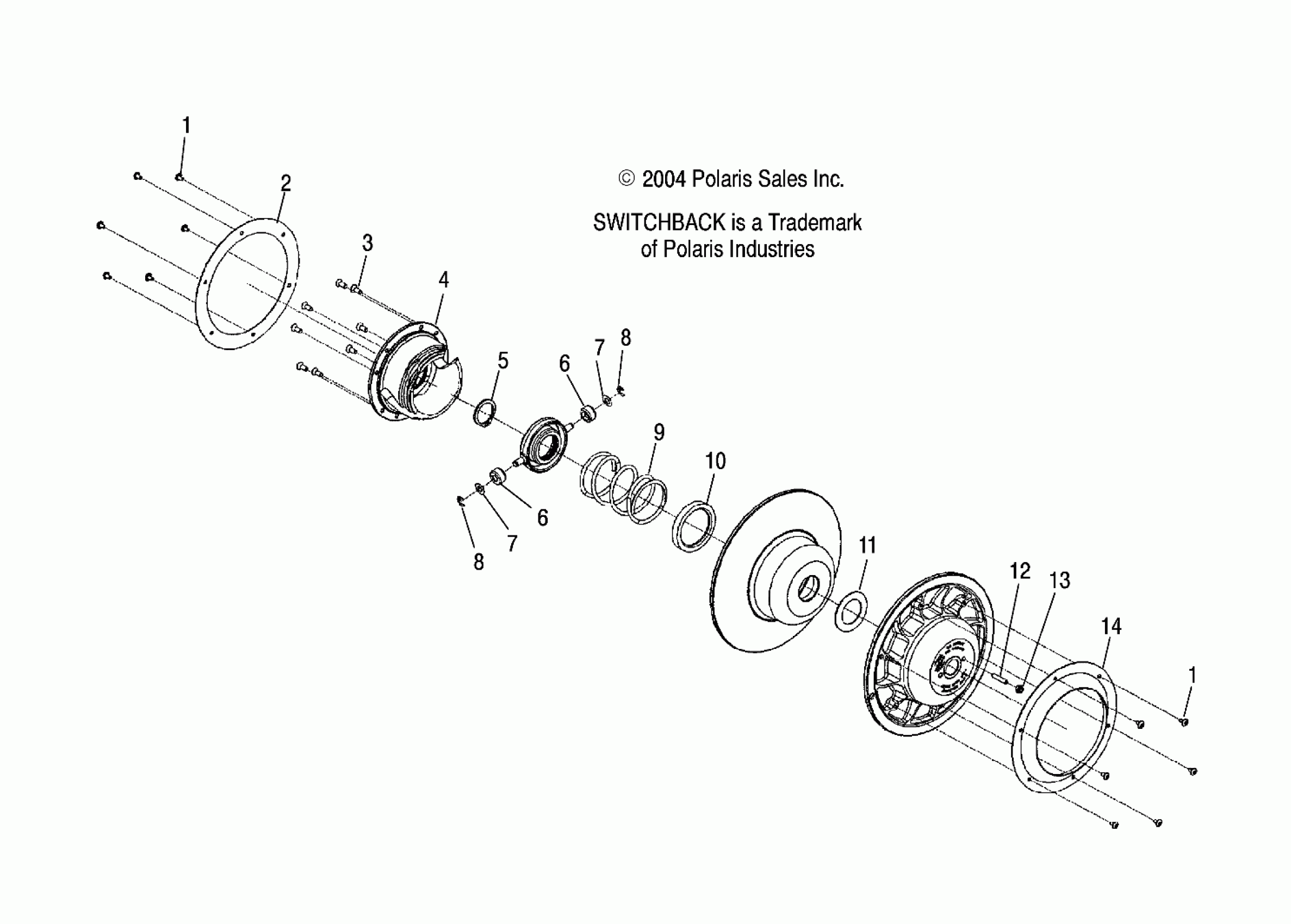

Polaris 900 SWITCHBACK - S05PS8DS DRIVEN CLUTCH - S05PS8DS (4999200869920086C03) Diagram

#

Description
Price

-

Asm., Driven Clutch, 131 Basic [Incl. 5-8,10-13]

1322368

Unavailable

1

Screw

7518023

$4.03

1

Screw

7518023

$4.03

2

Plate, Windage

5246216

$20.48

3

Screw, Cap

3233996

Unavailable

4

Ramp, Driven 62-42-.36

5134722

$131.99

5

RING, RETAINING

7710522

$13.59

6

ROLLER

5434534

$48.56

6

ROLLER

5434534

$48.56

7

WASHER, THRUST

7556226

$5.65

7

WASHER, THRUST

7556226

$5.65

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

SPRING, DRIVEN CLUTCH, RED/BLACK, LH

7043058

$56.65

10

WASHER, THRUST

7556227

$23.99

11

Spacer

3234033

Unavailable

12

SCREW

3234228

$5.99

13

Nut

3234229

Unavailable

14

Plate, Windage

5246217

Unavailable
