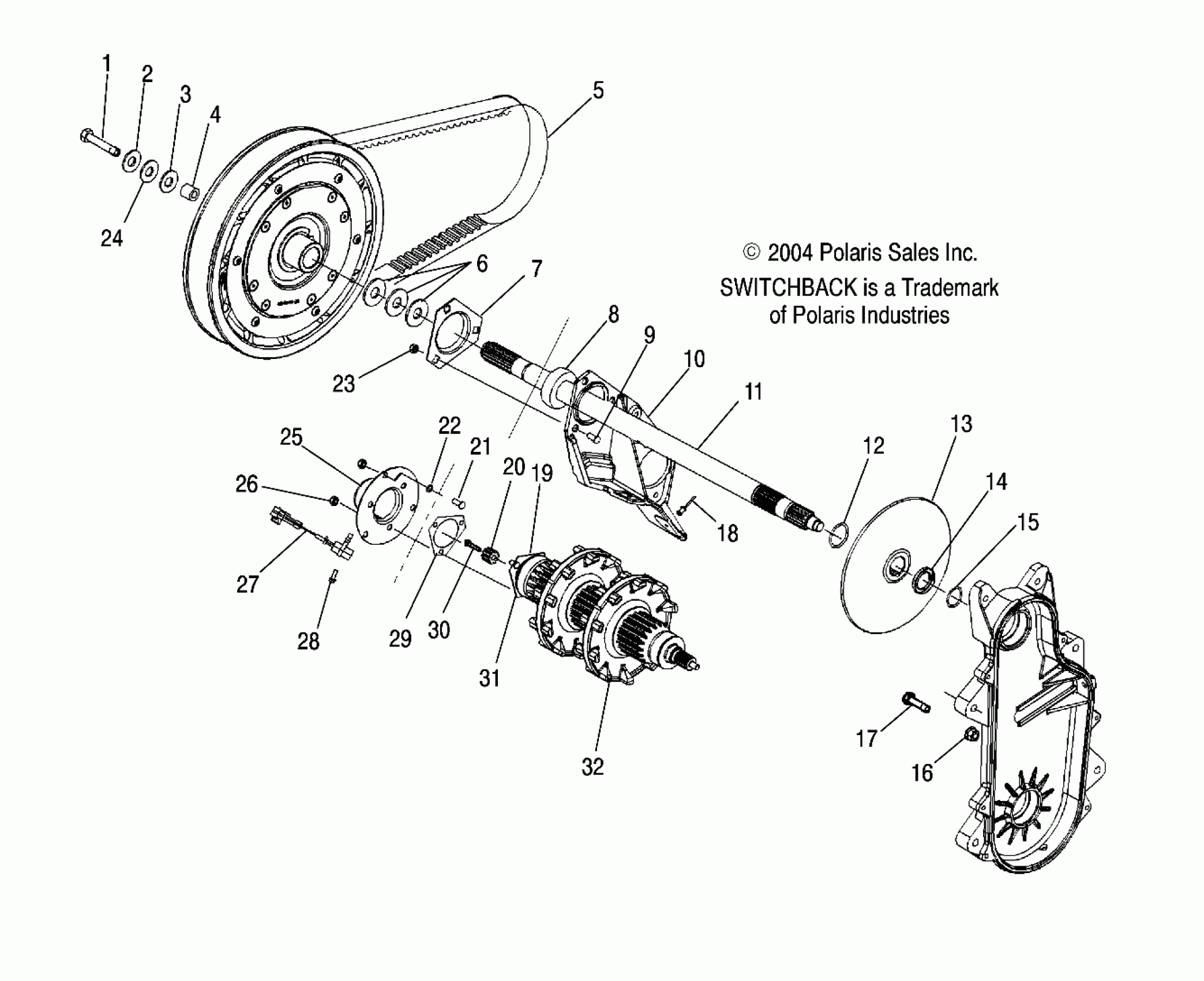

Polaris 900 SWITCHBACK - S05PS8DS DRIVE TRAIN - S05PS8DS (4999200869920086C01) Diagram

#

Description
Price

1

Bolt

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer

7555957

Unavailable

4

Spacer, Input Shaft

5134371

Unavailable

5

BELT, DRIVE

3211115

$199.99

6

Bushing

7556509

Unavailable

6

WASHER

7555917

Unavailable

6

WASHER

7555864

$2.39

7

Flangette

5247680

$24.27

8

Bearing

3514352

Unavailable

9

Bolt, Carriage

7512377

$4.79

10

Support, Engine, Rear, LH

5134874

$40.79

11

Asm., Jackshaft [Incl. 8]

1332279

$190.46

12

RING, RETAINING

7710422

$3.99

13

Kit, Forged Disc

2202842

$91.99

14

SLEEVE, SEAL

5020588

$23.99

15

O-RING

5410613

$1.99

16

Nut, Flange

7547180

$2.39

17

Bolt, Carriage

7518268

$3.19

18

Flangette

5247680

$24.27

19

BEARING

3514448

Unavailable

20

Wheel, Pickup, Speedo

5240013

Unavailable

21

Bolt, Carriage

7518049

$2.39

22

PALNUT

7547030

$4.79

23

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

24

Washer, Flat

7555734

Unavailable

25

HOUSING, DRIVE PICKUP

5246960

$27.99

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

27

Sensor, Speed Pickup

2410376

$101.17

28

Bolt

7512232

$1.49

29

GASKET, JACKSHAFT, BLACK

5811095

$2.41

30

Screw

7516733

$6.39

31

ASM., FLANGETTE W/SCREWS

1014299

$43.56

32

Asm., Driveshaft

1590392

$551.89
