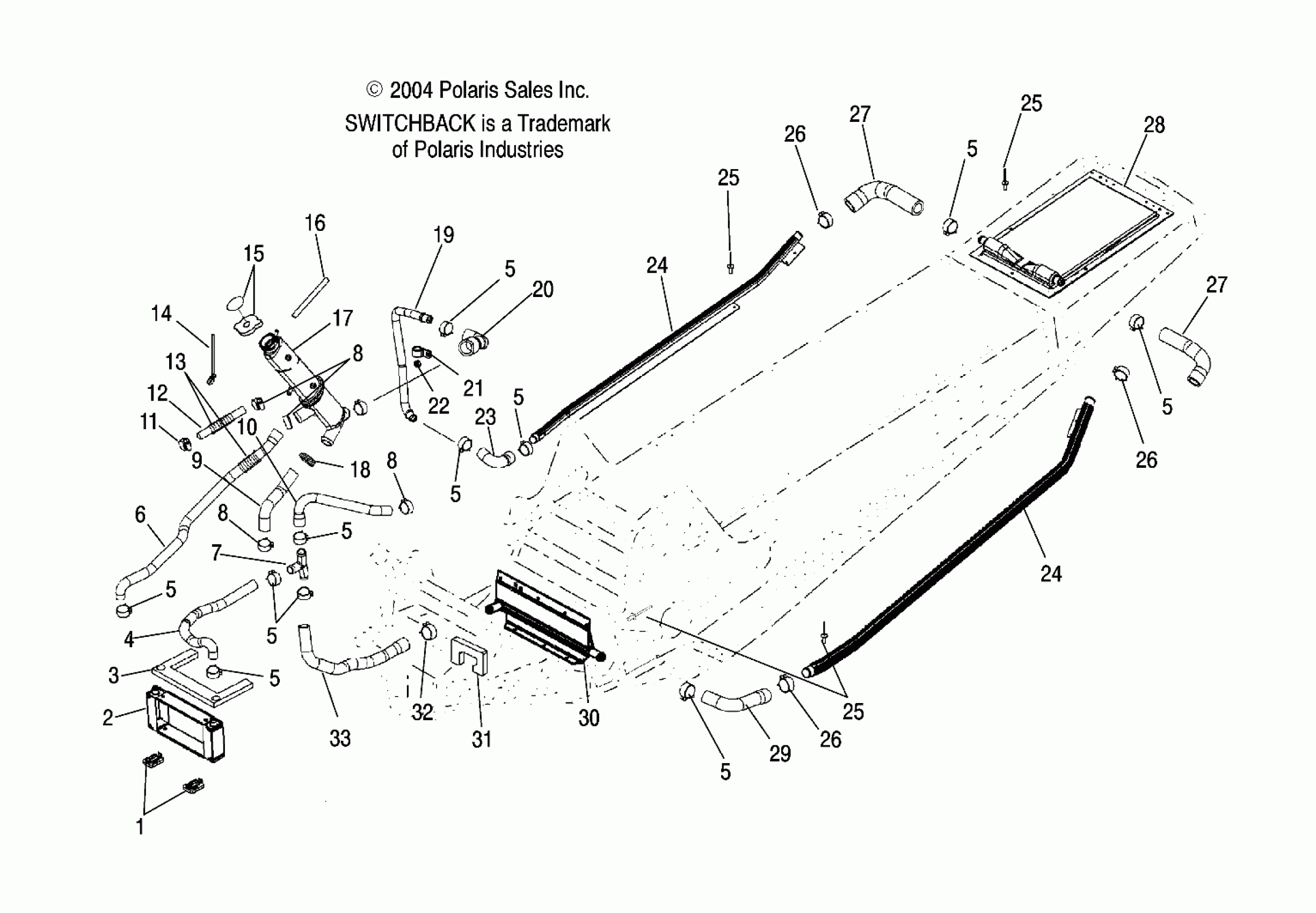

Polaris 900 SWITCHBACK - S05PS8DS COOLING - S05PS8DS (4999200869920086B04) Diagram

#

Description
Price

1

Mount, Radiator, Rubber

5412513

$8.08

2

Asm., Radiator

1240149

Unavailable

3

MOUNT, RADIATOR, FOAM

5812496

$9.70

4

Hose, Tee/Radiator Inlet

5412567

Unavailable

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

5

CLAMP, SPRINGBAND

7080842

$7.19

6

Hose, Radiator/Bottle

5412569

Unavailable

7

Fitting, Tee

5435491

Unavailable

8

CLAMP, SPRINGBAND

7080844

$10.39

8

CLAMP, SPRINGBAND

7080844

$10.39

8

CLAMP, SPRINGBAND

7080844

$10.39

9

Hose, Coolant Bottle/Engine

5412472

Unavailable

10

Hose, Engine Out/Tee

5412566

Unavailable

11

Clamp, Hose

7080476

$6.39

12

Line, Fuel

8450044-153

Unavailable

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

13

TUBING, CONVOLUTED

5521510

$29.99

14

Cable Tie

7081240

Unavailable

15

CAP, PRESSURE

1240169

Unavailable

15

DECAL, WATER BOTTLE CAP

7170063

$4.03

16

Line, Fuel

8450003-1525

Unavailable

17

Bottle, Coolant

2520452

$48.56

18

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

19

Tube, Coolant, Front, RH

5334634

$24.79

20

Hose, Bottle/Tube

5412719

$11.59

21

CLAMP, RUBBER COATED

7081235

$3.19

22

Nut, Nylok

7542122

$1.49

23

Hose, Gripper, Front, RH

5412720

$24.27

24

Exchanger, Gripper/Cooler, RH

5134669

$156.79

24

Exchanger, Gripper/Cooler, LH

5134668

$156.79

24

Exchanger, Gripper/Cooler, RH

5134669

$156.79

24

Exchanger, Gripper/Cooler, LH

5134668

$156.79

25

RIVET-3/16-.090-.290

7661637

$1.49

25

RIVET-3/16-.090-.290

7661637

$1.49

25

RIVET-3/16-.090-.290

7661637

$1.49

26

Clamp, Springband

7080843

$3.99

26

Clamp, Springband

7080843

$3.99

26

Clamp, Springband

7080843

$3.99

27

Hose, Grip Cooler/Rear Cooler, LH

5412481

Unavailable

27

Hose, Grip Cooler/Rear Cooler, RH

5412482

Unavailable

27

Hose, Grip Cooler/Rear Cooler, LH

5412481

Unavailable

27

Hose, Grip Cooler/Rear Cooler, RH

5412482

Unavailable

28

Asm., Rear Cooler, Long

1240173

$173.59

29

Hose, Tube/Gripper, LH

5412681

Unavailable

30

Cooler, Center

2520445

$229.99

31

Foam, Seal

5812774

$6.63

32

CLAMP, SPRINGBAND

7080841

$7.19

33

Hose, Tee/Center Cooler

5412568

$34.71
