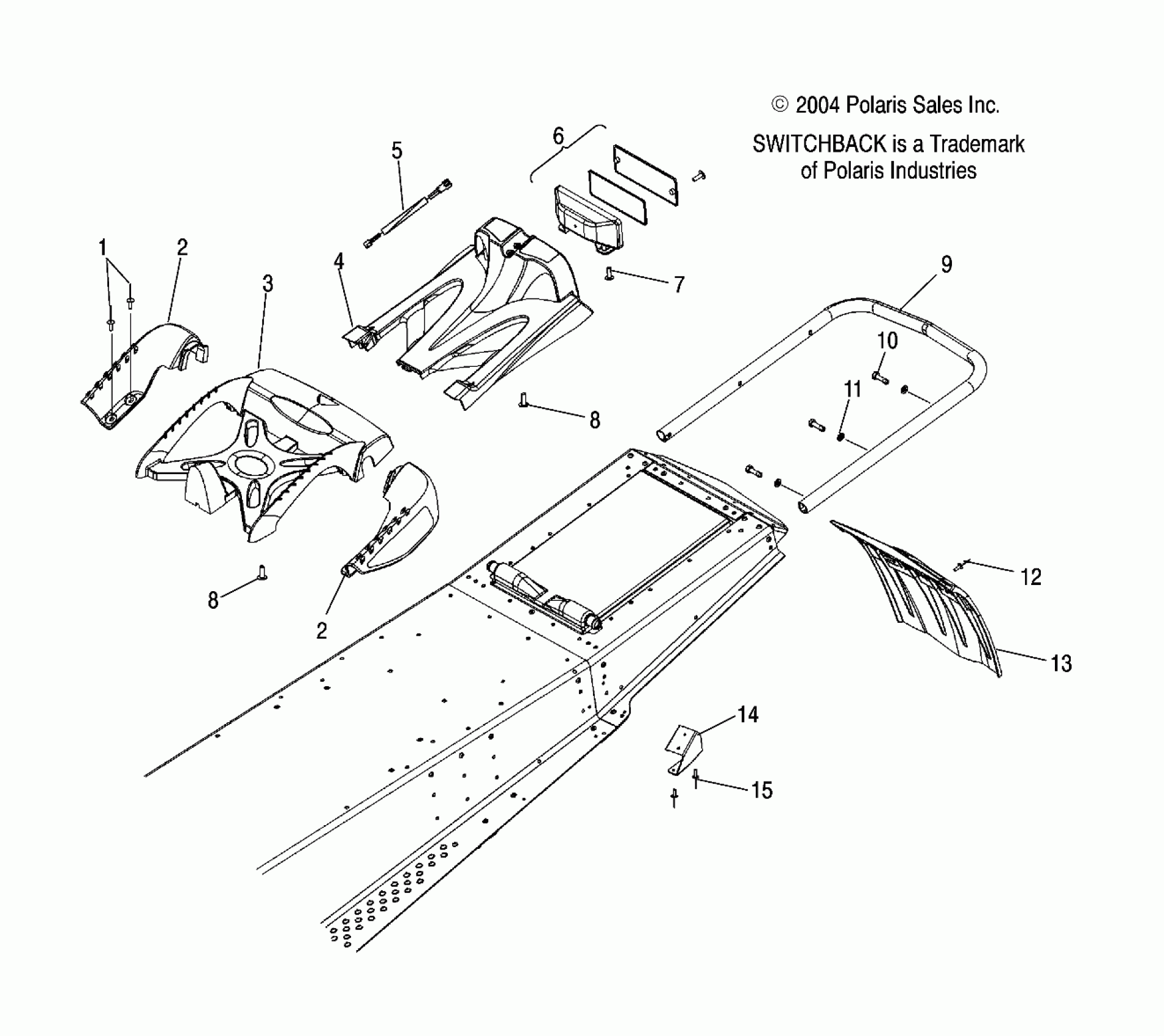

Polaris 900 SWITCHBACK - S05PS8DS CHASSIS, REAR - S05PS8DS (4999200869920086A04) Diagram

#

Description
Price

1

RIVET

7621467

$1.49

2

Cover, Gripper/Deicer, Black, LH

5430014-070

Unavailable

2

Cover, Gripper/Deicer, Black, RH

5430015-070

Unavailable

2

Cover, Gripper/Deicer, Black, LH

5430014-070

Unavailable

2

Cover, Gripper/Deicer, Black, RH

5430015-070

Unavailable

3

Rack, Rear, Black

5435237-070

$41.59

4

Cover, Closeoff, Black

5430013-070

Unavailable

5

Harness, Taillight

2410543

$41.59

6

Bulb, Taillight

4030043

$6.46

6

Gasket

4032015

Unavailable

6

Lens

4032014

$36.41

6

Asm., Taillight

2410544

$91.19

6

Screw

7518019

$2.63

7

SCREW

7512026

$1.49

8

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

8

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

9

Bumper, Rear, Natural

2632988-309

$124.99

10

Screw

7517298

$4.79

11

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

12

RIVET

7621472

$1.49

13

Flap, Snow, Black/White

5434954-1038

Unavailable

14

Bracket, Gripper Cover, LH

5247876

$9.05

14

Bracket, Gripper Cover, RH

5247877

$9.84

15

RIVET-3/16-.090-.290

7661637

$1.49
