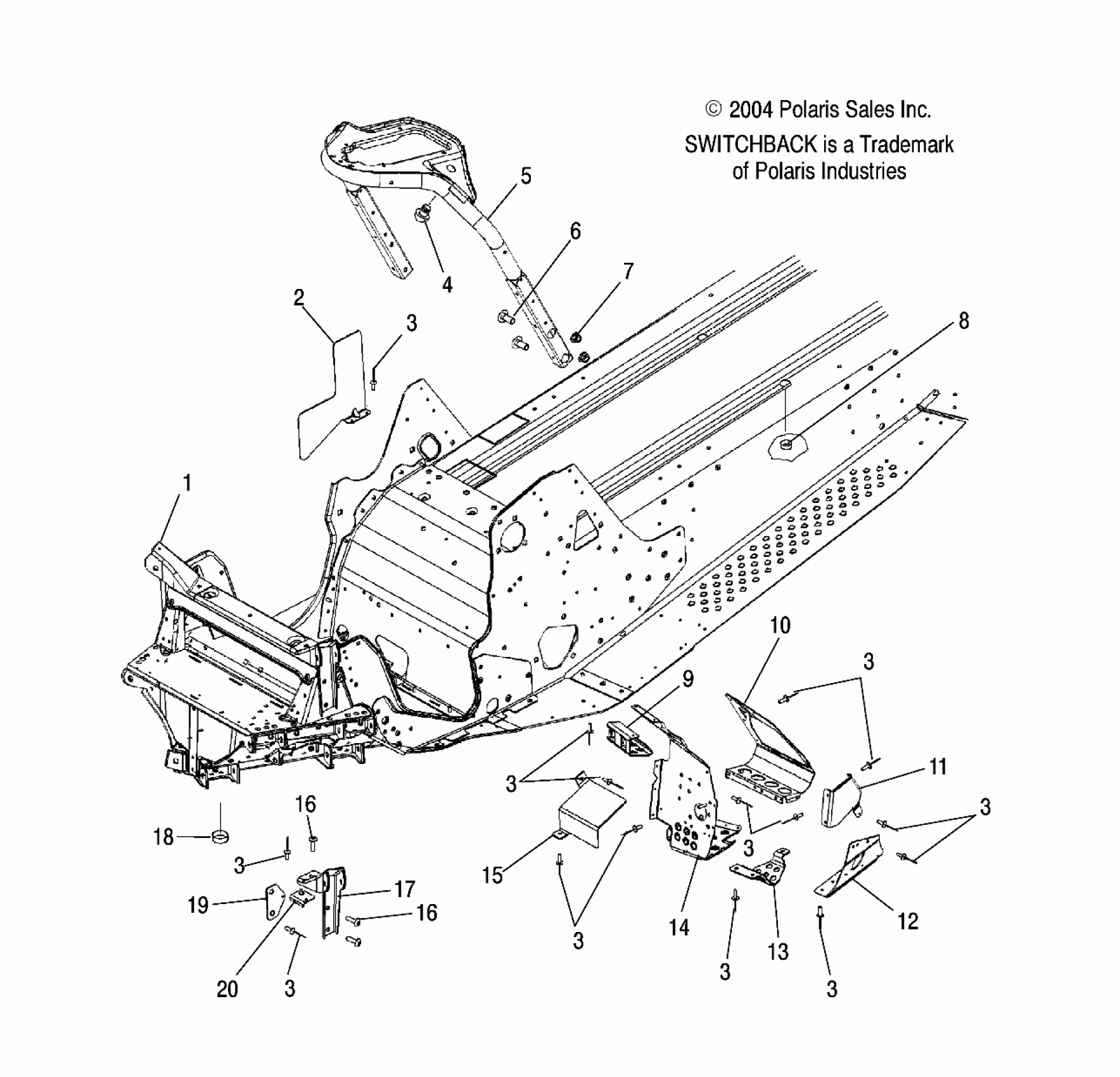

Polaris 900 SWITCHBACK - S05PS8DS CHASSIS, FRONT - S05PS8DS (4999200869920086A03) Diagram

#

Description
Price

1

Asm., Chassis, Natural

1014325-309

$1,209.99

2

Shield, Heat

5248618

$5.75

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

3

RIVET-3/16-.090-.290

7661637

Unavailable

4

Dampener, Vibration w/Ribs

5411576

$7.99

5

Hoop, Steering, Black

1014790-067

$103.19

6

Bolt, Carriage

7512377

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

Plug, Cap

7080592

Unavailable

9

Mount, Plenum

5248405

$4.95

10

Toe Clip, LH

5248406

$13.19

10

Toe Clip, RH

5248407

Unavailable

11

Support, Footrest, Bumper, RH

5248401

Unavailable

11

Support, Footrest, Bumper, LH

5248402

Unavailable

12

Support, Footrest, Lower, LH

5248397

Unavailable

12

Support, Footrest, Lower, RH

5248398

Unavailable

13

Leg, Support, LH

5248403

Unavailable

13

Leg, Support, RH

5248404

$3.51

14

Support, Footrest, Front, LH

5248399

$93.32

14

Support, Footrest, Front, RH

5248400

Unavailable

15

Guard, Belt

5247861

$12.39

16

Screw

7517810

$3.99

16

Screw

7517810

$3.99

17

Tower, Shock, Black, LH

1014795-067

Unavailable

17

Tower, Shock, Black, RH

1014796-067

$118.99

18

Plug, Hole

7081076

$3.22

19

Asm., Plate, Nut, Shock Tower

1014820

Unavailable

20

Asm., Plate, Nut, LH

1014821

$3.60

20

Asm., Plate, Nut, RH

1014822

$3.60
