1998 Kawasaki 900 STX OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1998 Kawasaki 900 STX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

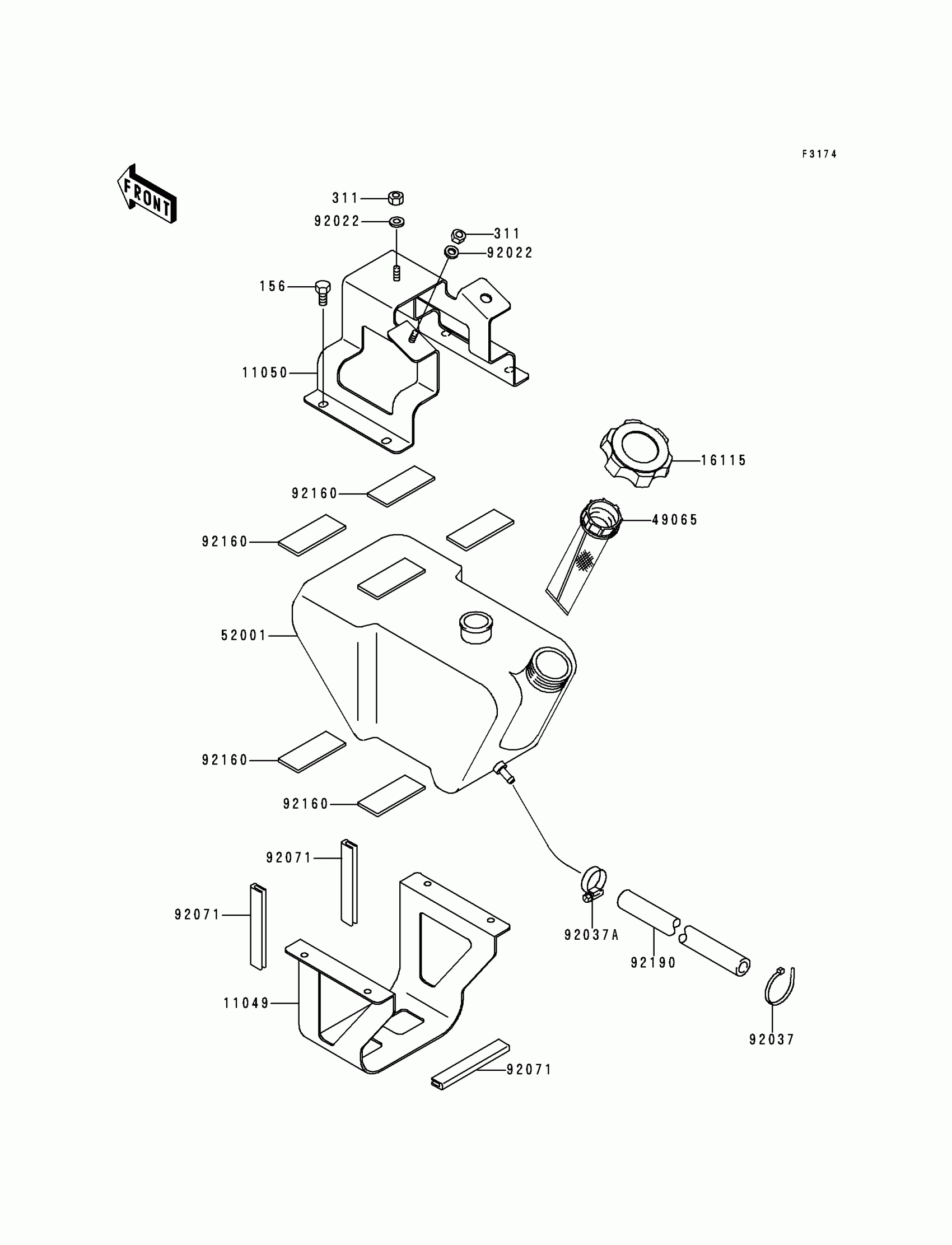

1998 Kawasaki 900 STX OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

156

BOLT-WP,6X14

156R0614

1
Out of stock

311

NUT-HEX,6MM

311R0600

1
Out of stock

11049

BRACKET

11049-3760

1
Out of stock

11050

BRACKET

11050-3725

1
Out of stock

16115

CAP-OIL FILLER

16115-3714

1
Out of stock

49065

FILTER-OIL

49065-3703

1
Out of stock

52001

TANK-OIL

52001-3730

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92037

CLAMP

92037-1173

1
Out of stock

92037A

CLAMP

92037-3726

1
Out of stock

92071

GROMMET

92071-1198

1
Out of stock

92160

DAMPER,WATER MUFFLER

92160-3880

1
Out of stock

92190

TUBE,5.8X10.8X370

92190-3864

1
Out of stock
