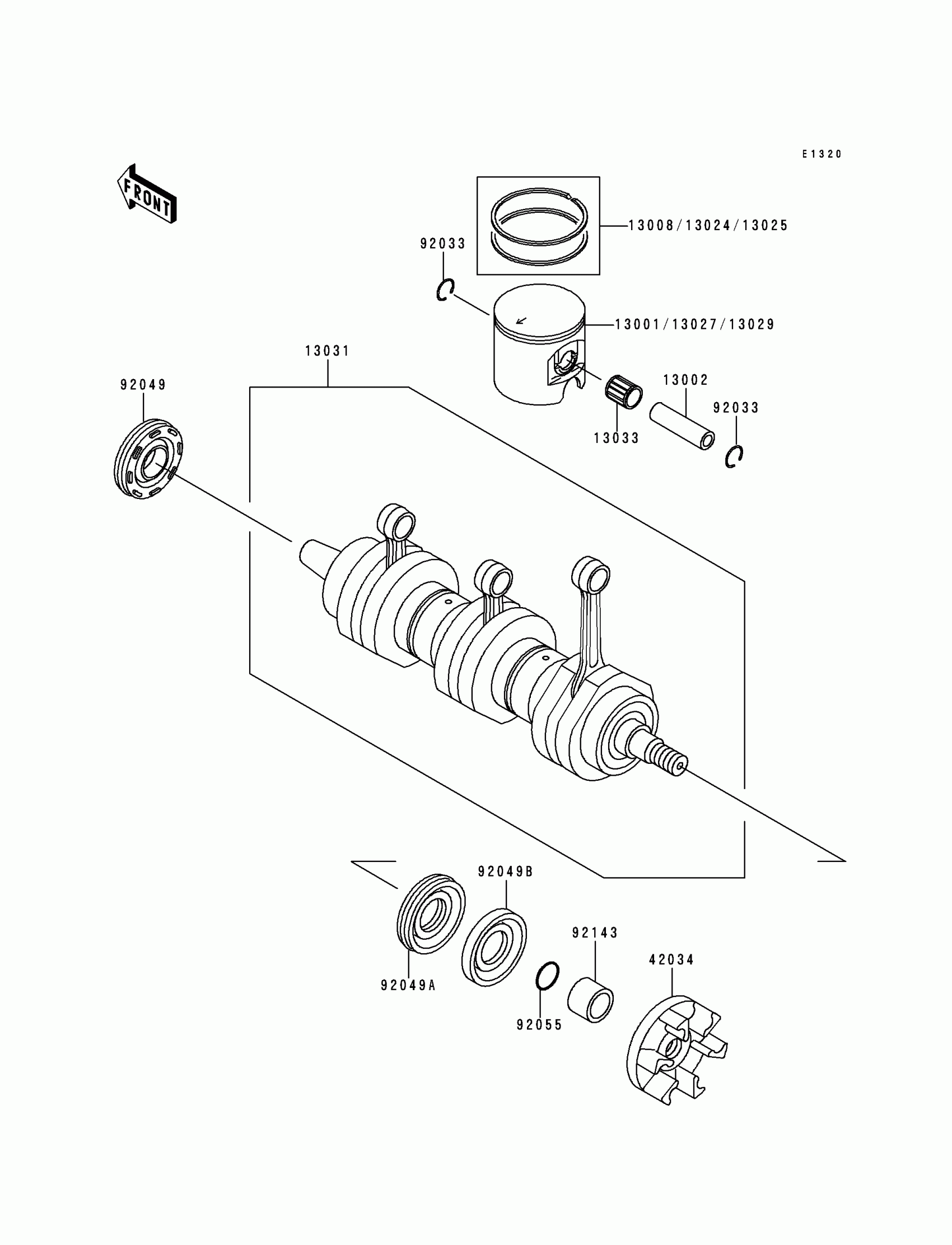

Find the part on the Crankshaft/piston diagram for your 1998 Kawasaki 900 STX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Kawasaki 900 STX Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,STD

13001-3720

1
Out of stock

13002

PIN-PISTON

13002-3705

1
Out of stock

13008

RING-SET-PISTON,STD

13008-3709

1
Out of stock

13024

RING-SET-PISTON LL,O/S,1.00

13024-3707

—
Out of stock

13025

RING-SET-PISTON L,O/S,0.50

13025-3707

—
Out of stock

13027

PISTON-ENGINE LL,O/S,1.00

13027-3712

—
Out of stock

13029

PISTON-ENGINE L,O/S,0.50

13029-3712

—
Out of stock

13031

CRANKSHAFT-COMP

13031-3732

1
Out of stock

13033

BEARING-SMALL END

13033-3702

1
Out of stock

42034

COUPLING

42034-3708

1
Out of stock

92033

RING-SNAP

92033-1207

1
Out of stock

92049

SEAL-OIL,FWJ7307210ZS

92049-3713

1
Out of stock

92049A

SEAL-OIL

92049-3715

1
Out of stock

92049B

SEAL-OIL

92049-3716

1
Out of stock

92055

RING-O,20.8X2.4

92055-3740

1
Out of stock

92143

COLLAR

92143-3745

1
Out of stock
