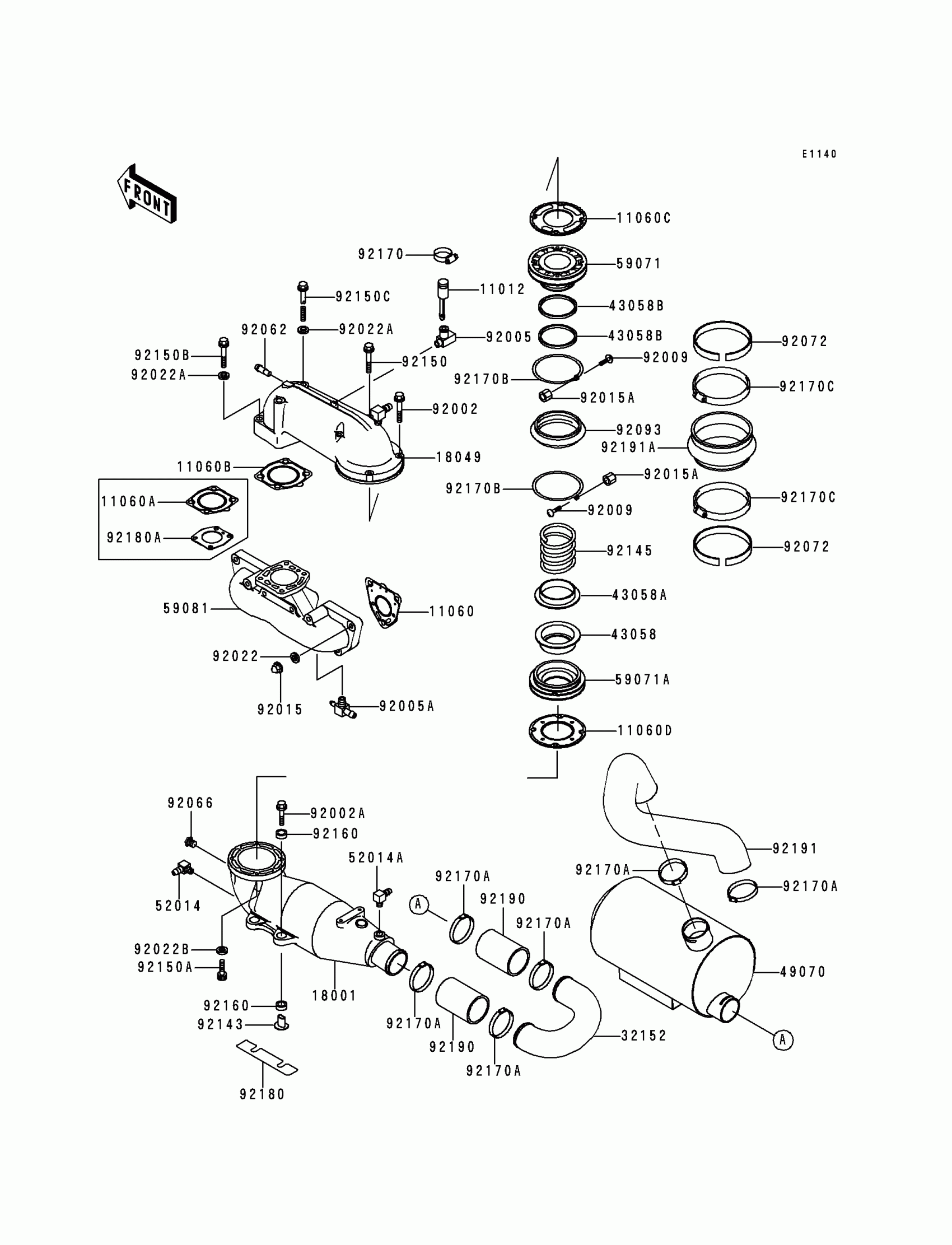

Kawasaki 900 STX Muffler(s) Diagram
#
11012
CAP
11012-3757
$10.97
11060
GASKET
11060-3756
$28.25
11060A
GASKET,EXHAUST-MANIFOLD
11060-3771
Unavailable
11060B
GASKET,EXHAUST-MANIFOLD
11060-3771
$38.46
11060C
GASKET,EXHAUST-JOINT
11060-3777
$55.26
11060D
GASKET,JOINT-MUFFLER
11060-3778
Unavailable
18001
MUFFLER
18001-3773
$459.45
18049
PIPE-EXHAUST
18049-3772
$202.71
32152
PIPE
32152-3735
Unavailable
43058
RING
43058-3727
Unavailable
43058A
RING
43058-3728
$16.29
43058B
RING
43058-3729
Unavailable
49070
MUFFLER-COMP,WATER
49070-3732
$336.68
52014
ELBOW
52014-3709
$26.86
52014A
ELBOW
52014-3711
$30.12
59071
JOINT
59071-3755
Unavailable
59071A
JOINT
59071-3756
$168.27
59081
MANIFOLD-EXHAUST
59081-3727
$532.72
92002
BOLT,6X35
92002-3715
$6.61
92002A
BOLT,6X40
92002-3716
$5.52
92005
FITTING
92005-3715
$48.80
92005A
FITTING
92005-3720
$40.82
92009
SCREW,3X14
92009-3796
$3.32
92015
NUT,CAP,8MM
92015-1371
$5.00
92015A
NUT,3MM
92015-3825
$5.23
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92022B
WASHER,6MM
92022-3747
$1.84
92062
NOZZLE
92062-3705
$8.44
92066
PLUG,CYLINDER HEAD
92066-3001
Unavailable
92072
BAND
92072-3818
$7.49
92093
SEAL
92093-3751
Unavailable
92143
COLLAR
92143-3759
Unavailable
92145
SPRING
92145-3701
Unavailable
92150
BOLT,6X80
92150-3761
$9.18
92150A
BOLT,SOCKET,6X18
92150-3775
$4.69
92150B
BOLT,10X50
92150-3819
$13.08
92150C
BOLT,10X125
92150-3825
$20.50
92160
DAMPER
92160-3879
Unavailable
92170
CLAMP
92170-3729
Unavailable
92170A
CLAMP
92170-3754
$13.41
92170B
CLAMP
92170-3757
Unavailable
92170C
CLAMP
92170-3759
Unavailable
92180
SHIM
92180-3703
Unavailable
92180A
SHIM
92180-3704
Unavailable
92190
TUBE,CHAMBER-MUFLLER
92190-3950
$29.82
92191
TUBE,MUFFLER-PIPE
92191-3758
$82.75
92191A
TUBE
92191-3811
Unavailable
