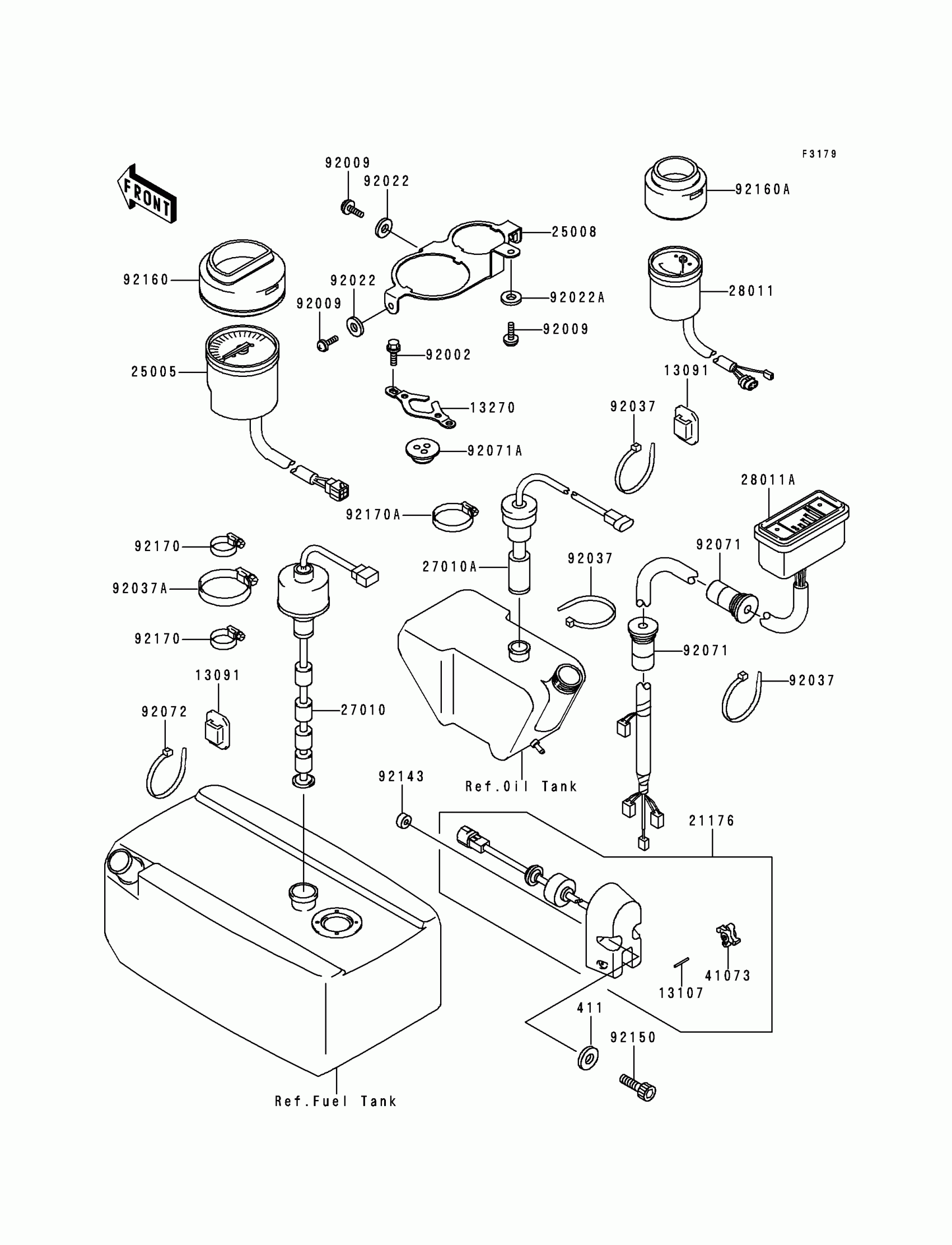

Kawasaki 900 STX Meters Diagram
#
Description
Price
411
WASHER-PLAIN,6MM
411S0600
$2.06
13091
HOLDER,BAND
13091-3764
$5.17
13107
SHAFT
13107-3754
$6.11
13270
PLATE,GROMMET
13270-3737
Unavailable
21176
SENSOR,SPEEDOMETER
21176-3724
Unavailable
25005
SPEEDOMETER
25005-3702
$434.03
25008
BRACKET-METER,TACHO&TRIM
25008-3710
Unavailable
27010
SWITCH,FUEL LEVEL
27010-3727
$267.52
27010A
SWITCH,OIL LEVEL
27010-3748
Unavailable
28011
METER,TRIM
28011-3717
Unavailable
28011A
METER,FUEL
28011-3721
Unavailable
41073
WHEEL-ASSY,PADDLE
41073-3701
$16.84
92002
BOLT,6X20
92002-3755
$4.69
92009
SCREW,6X18
92009-3805
$4.71
92022
WASHER,6.5X16X1
92022-1143
$3.92
92022A
WASHER,6.5X20X1.5
92022-3710
$3.65
92037
CLAMP
92037-1173
$3.49
92037A
CLAMP
92037-3009
$3.70
92071
GROMMET
92071-3795
Unavailable
92071A
GROMMET
92071-3797
$21.55
92072
BAND,L=201
92072-3778
$1.84
92143
COLLAR,6.2X16X7.5
92143-3769
$6.63
92150
BOLT,SOCKET,6X25
92150-3823
$4.40
92160
DAMPER,TACHOMETER
92160-3829
Unavailable
92160A
DAMPER,TRIM METER
92160-3830
Unavailable
92170
CLAMP
92170-3718
$13.67
92170A
CLAMP
92170-3734
$15.26
