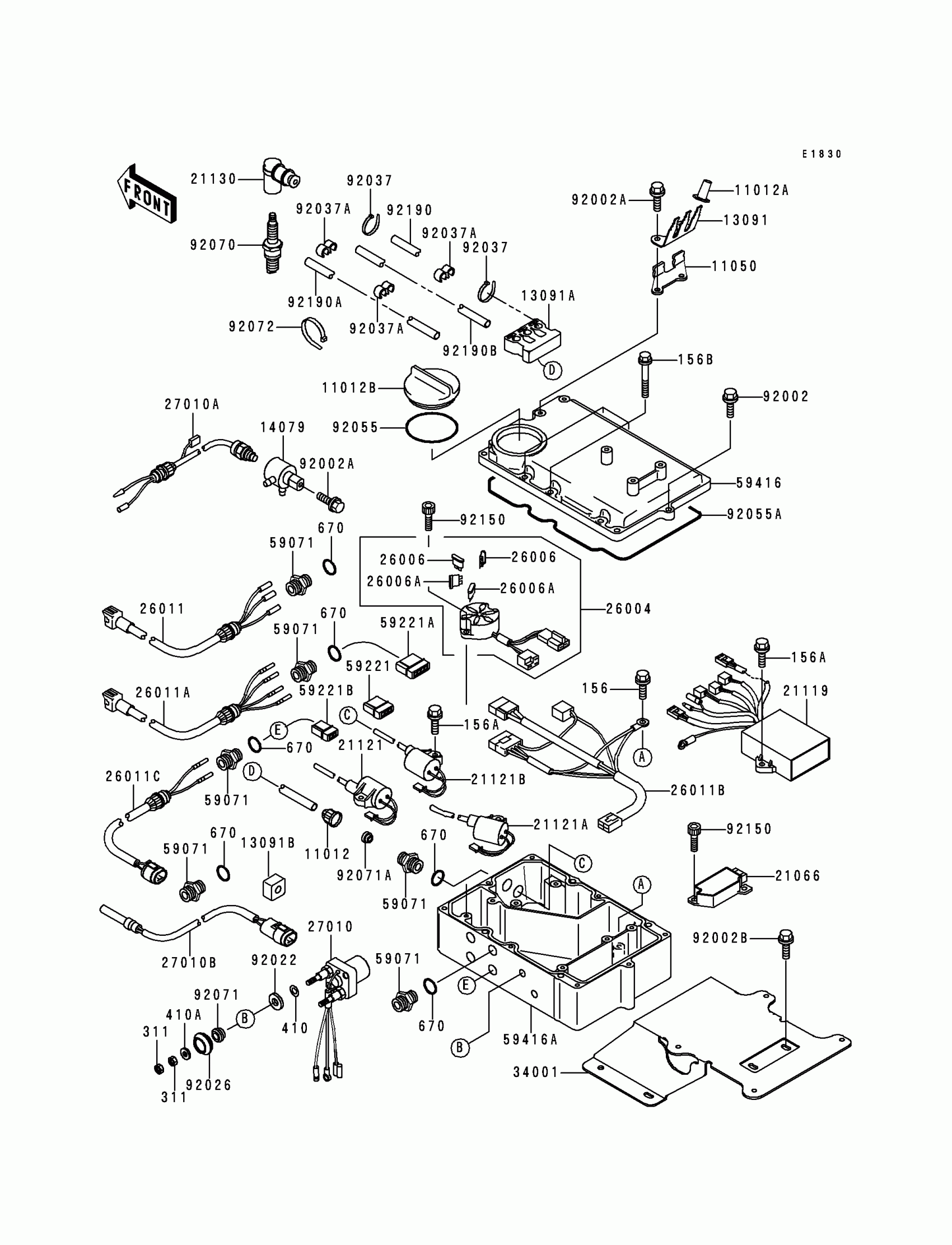

Kawasaki 900 STX Ignition System Diagram

#

Description
Price

11012

CAP

11012-3005

$5.54

11012A

CAP,HOLDER

11012-3768

$7.22

11012B

CAP

11012-3791

$12.48

11050

BRACKET

11050-3704

Unavailable

13091

HOLDER

13091-3784

$12.93

13091A

HOLDER

13091-3785

$18.22

13091B

HOLDER

13091-3804

$6.89

14079

HOLDER-ASSY

14079-3710

$110.58

21066

REGULATOR-VOLTAGE

21066-3712

$218.86

21119

IGNITER

21119-3747

Unavailable

21121

COIL-IGNITION,#1

21121-3708

$127.09

21121A

COIL-IGNITION,#2

21121-3709

$127.09

21121B

COIL-IGNITION,#3

21121-3710

$127.09

21130

CAP-SPARK PLUG

21130-3706

$52.27

26004

FUSE-ASSY

26004-3716

$120.09

26006

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26011

WIRE-LEAD,STOP SWITCH

26011-3817

$66.07

26011A

WIRE-LEAD,MAIN STARTER SWITCH

26011-3818

$60.18

26011B

WIRE-LEAD,REGULATOR

26011-3819

$66.07

26011C

WIRE-LEAD

26011-3829

$44.39

27010

SWITCH,STARTER

27010-3737

$161.37

27010A

SWITCH

27010-3749

Unavailable

27010B

SWITCH

27010-3752

Unavailable

34001

STAND,ELECTRIC CASE

34001-3712

Unavailable

59071

JOINT

59071-3001

$6.29

59221

CONNECTOR-CORD

59221-3704

$8.29

59221A

CONNECTOR-CORD

59221-3705

Unavailable

59221B

CONNECTOR-CORD

59221-3706

$8.22

59416

CASE-ELECTRIC,UPP

59416-3735

$94.65

59416A

CASE-ELECTRIC,LWR

59416-3741

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X16

92002-3728

$4.69

92002B

BOLT,6X12

92002-3763

$4.69

92022

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1603

$5.00

92055

RING-O

92055-1292

$8.42

92055A

RING-O,ELECTRIC

92055-3738

$34.11

156

BOLT-WP,6X14

156R0614

$3.90

156A

BOLT-WP,6X20

156R0620

$3.65

156B

BOLT-WP,6X90

156R0690

$9.37

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

670

O RING,16MM

670B2016

$1.36

92070

PLUG-SPARK,BR9ES(NGK),SOLID

92070-1157

$3.62

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-527

$6.68

92072

BAND,L=201

92072-3778

$1.84

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92190

TUBE,HIGH TENSION,L=330

92190-3707

$12.07

92190A

TUBE,8X10X565

92190-3942

$7.43

92190B

TUBE,8X10X425

92190-3943

$6.10
