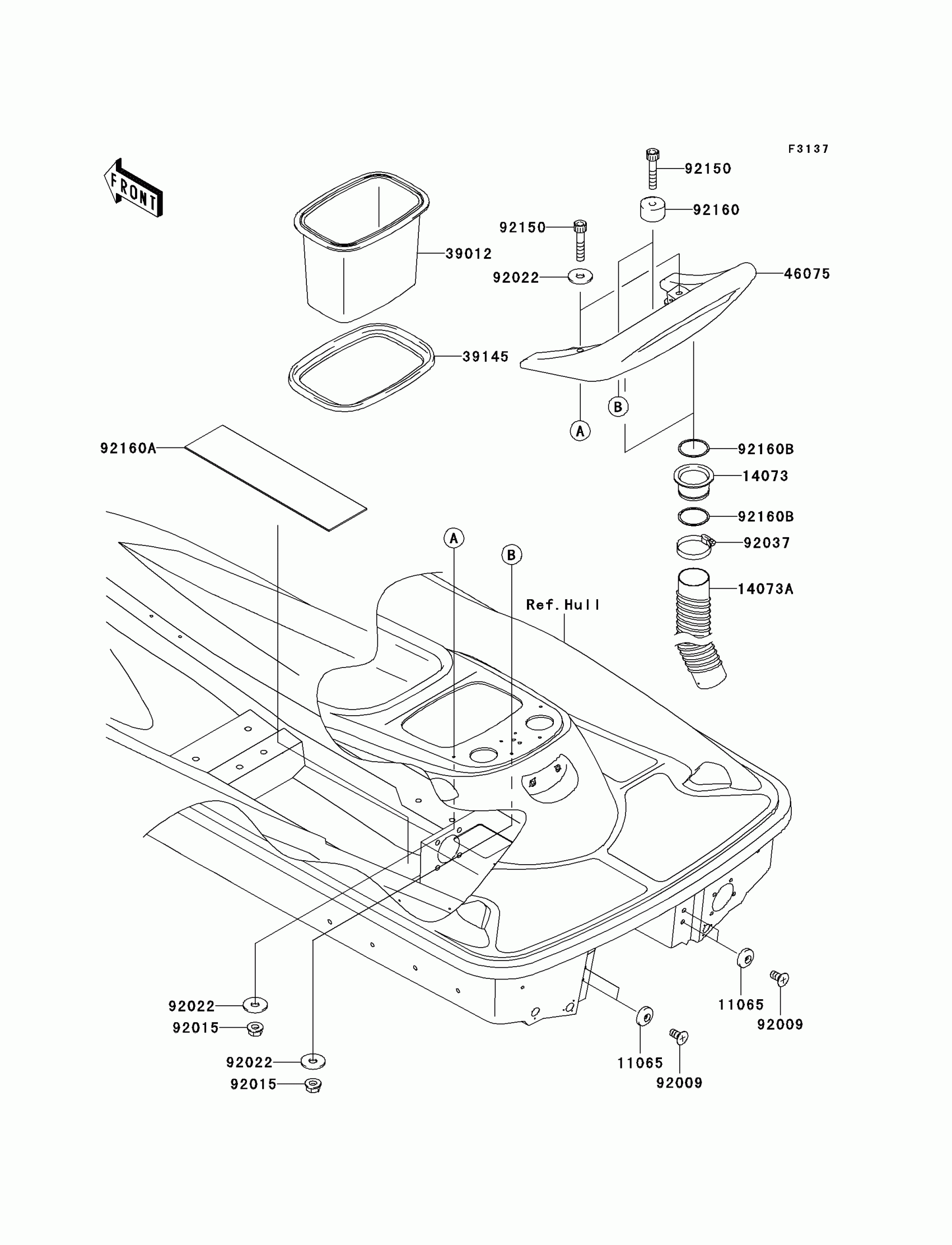

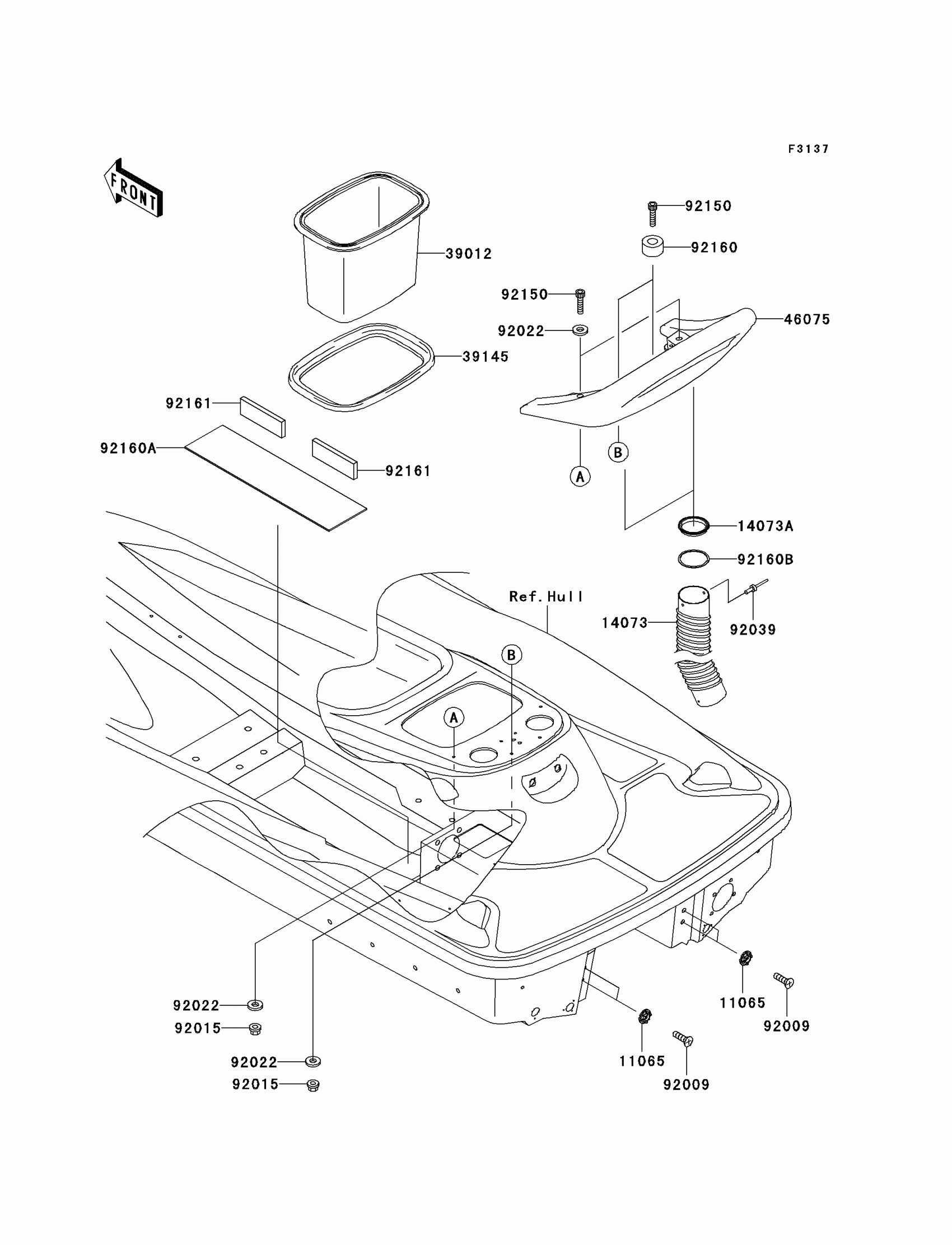

Kawasaki 900 STX Hull Rear Fittings Diagram

Description

Price

11065

CAP,STEP NUT

11065-3712

$2.66

14073

DUCT,FR

14073-3764

$14.32

14073A

DUCT

14073-3780

Unavailable

39012

CASE-STORAGE,RR

39012-3720

Unavailable

39145

TRIM-SEAL,REAR STORAGE CASE

39145-3783

$36.73

46075

GRIP,RR,F.BLACK

46075-3755-6Z

$235.82

92009

SCREW,6X12

92009-3852

$2.25

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92039

RIVET

92039-3747

$1.11

92150

BOLT,SOCKET,6X30

92150-3822

$3.29

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER

92160-3839

$20.73

92160B

DAMPER

92160-3910

$4.29

92161

DAMPER

92161-3719

$13.02
