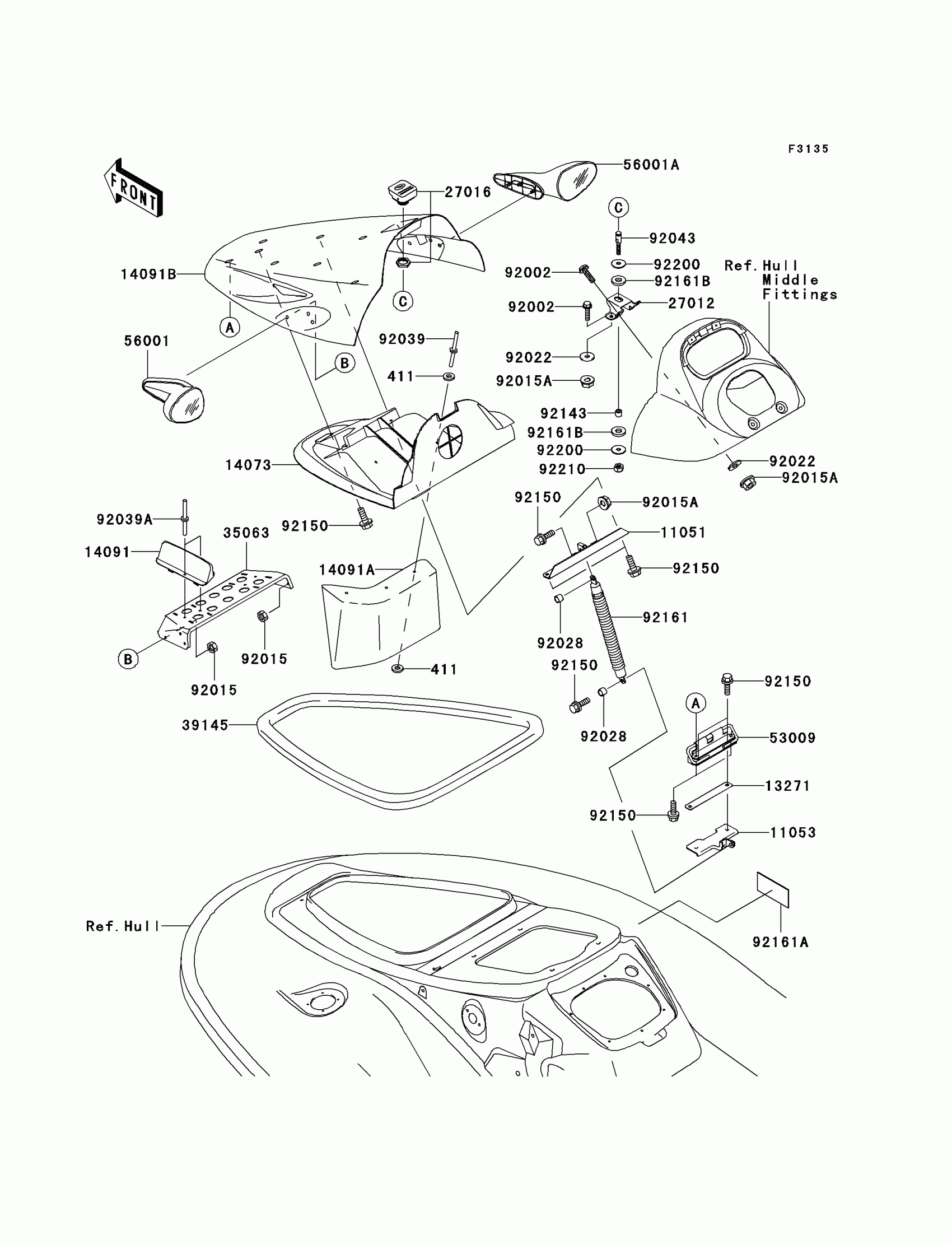

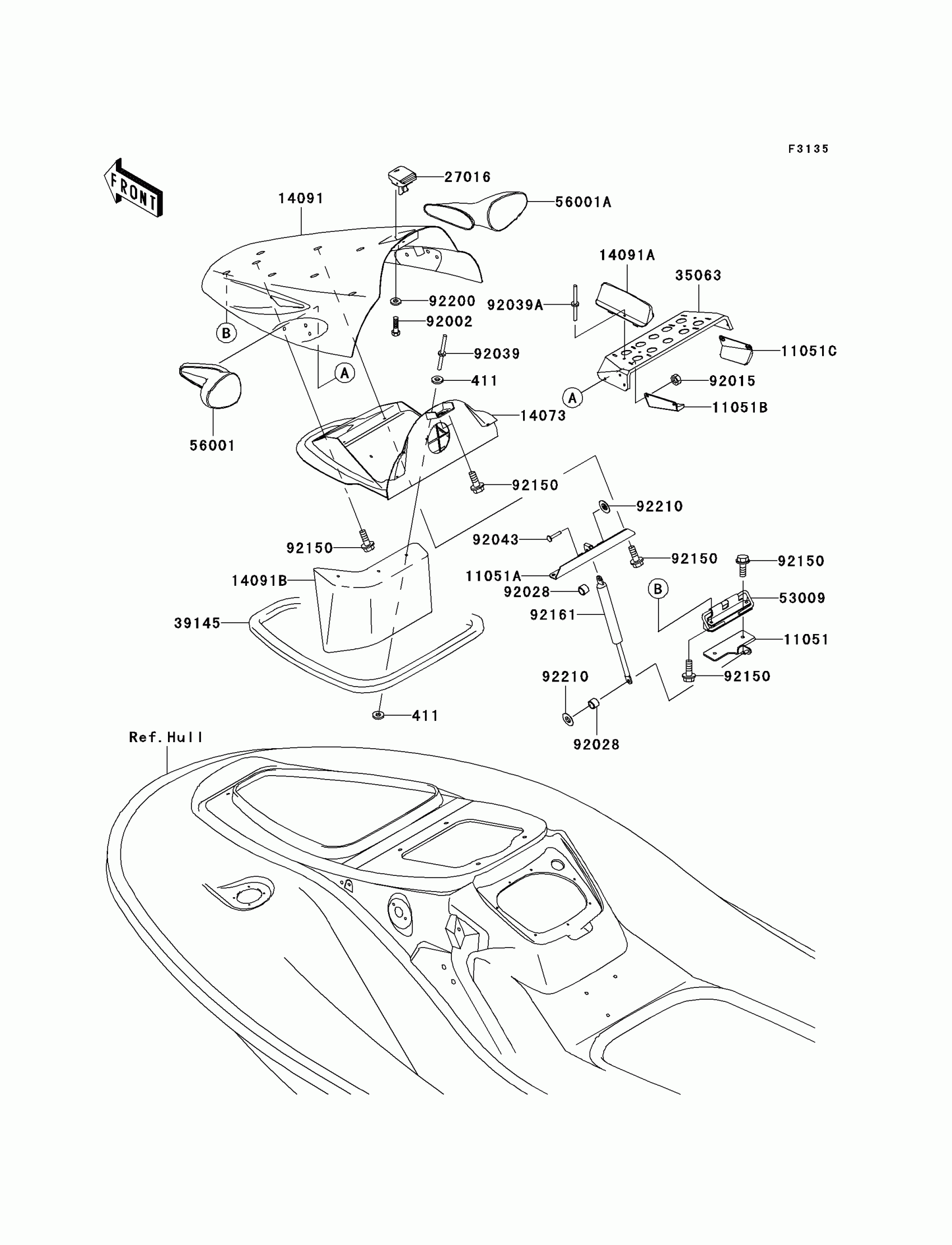

Kawasaki 900 STX Hull Front Fittings Diagram
#
Description
Price
411
WASHER-PLAIN,5MM
411S0500
$0.94
11051
BRACKET
11051-3766
$30.55
11053
BRACKET
11053-3752
$47.68
13271
PLATE
13271-3897
$6.93
14073
DUCT,FR
14073-3796
$138.01
14091
COVER
14091-3707
$19.41
14091A
COVER,FRONT DUCT
14091-3722
Unavailable
14091B
COVER,HATCH,YELLOW
14091-3753-823
$151.58
27012
HOOK
27012-3841
$29.21
27016
LOCK-ASSY
27016-3757
Unavailable
35063
STAY,MIRROR
35063-3703
$84.85
39145
TRIM-SEAL,L=1380
39145-3773
$77.78
53009
HINGE,HATCH COVER
53009-3725
$117.70
56001
MIRROR-ASSY,LH,F.S.BLACK
56001-3719-8J
Unavailable
56001A
MIRROR-ASSY,RH,F.S.BLACK
56001-3720-8J
$236.54
92002
BOLT,6X25
92002-3714
$5.00
92015
NUT,LOCK,6MM
92015-3766
$5.91
92015A
NUT,6MM
92015-3767
$4.69
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92028
BUSHING
92028-3765
$3.29
92039
RIVET
92039-3714
$0.95
92039A
RIVET,4.8MM
92039-3719
$6.22
92043
PIN
92043-3757
Unavailable
92143
COLLAR,8.2X14X11.2
92143-3724
$13.56
92150
BOLT,6X18
92150-3729
$4.69
92161
DAMPER
92161-3705
Unavailable
92161A
DAMPER
92161-3728
$5.64
92161B
DAMPER
92161-3739
$6.18
92200
WASHER,8.5X32X2
92200-3786
$5.79
92210
NUT,LOCK,8MM
92210-3742
$6.57
