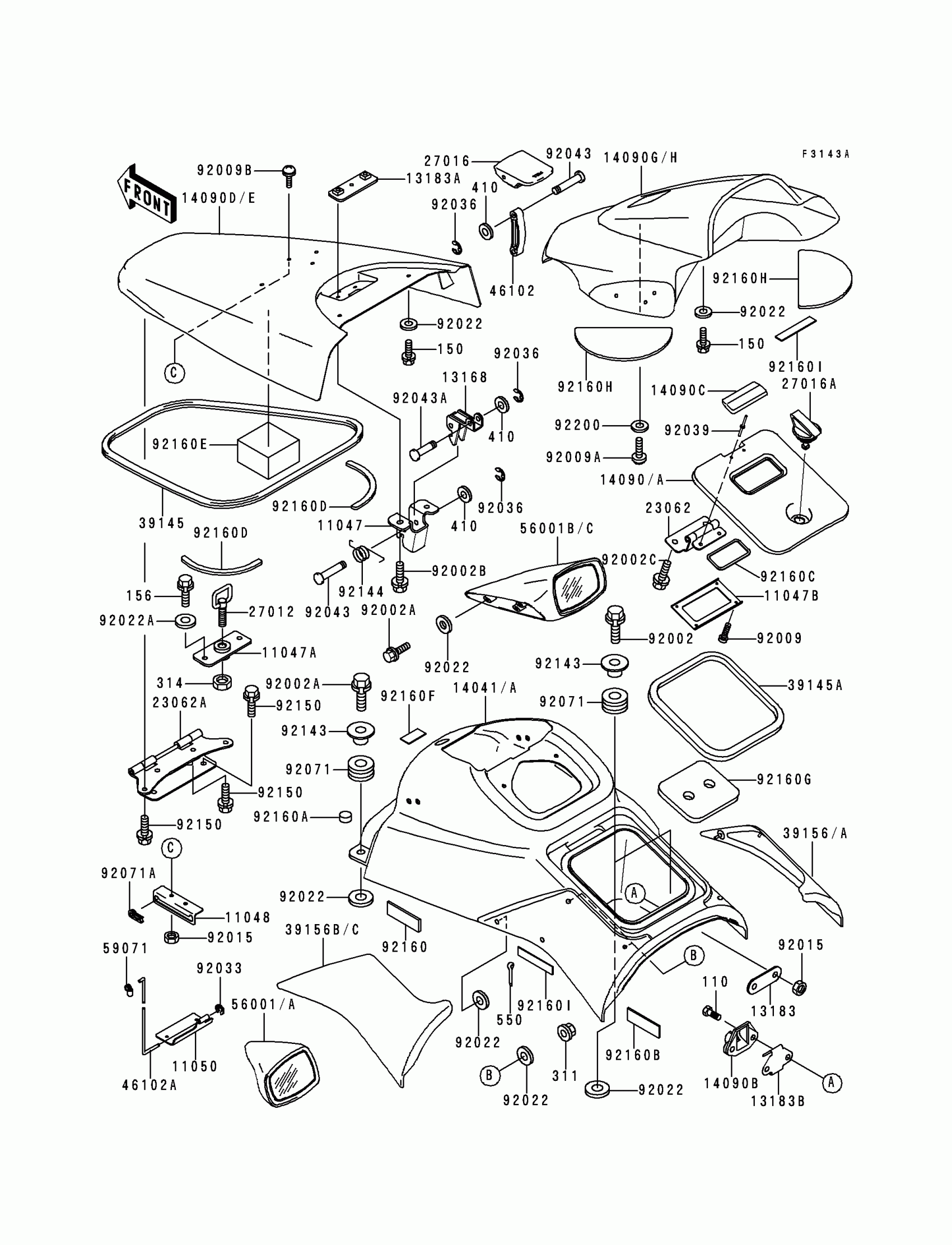

Kawasaki 900 STX Hull Fittings Diagram
#
11047
BRACKET,SEAT SIDE LOCK
11047-3732
Unavailable
11047A
BRACKET,HATCH COVER HINGE
11047-3788
Unavailable
11047B
BRACKET,METER HOLDER
11047-3789
Unavailable
11048
BRACKET,HATCH COVER
11048-3777
Unavailable
11050
BRACKET,HINGE
11050-3723
Unavailable
13183
PLATE
13183-3754
Unavailable
13183A
PLATE,HATCH LOCK
13183-3792
Unavailable
13183B
PLATE,STORAGE LOCK
13183-3832
Unavailable
14041A
COVER-COMP,HANDLE,P.BOULOGNE
14041-3705-7X
Unavailable
14090A
COVER,STORAGE,P.BOULOGNE
14090-3723-7X
Unavailable
14090B
COVER,STORAGE LOCK
14090-3729
Unavailable
14090C
COVER,HINGE
14090-3793
Unavailable
14090E
COVER,HATCH,P.BOULOGNE
14090-3803-7X
Unavailable
23062
BRACKET-COMP,HINGE
23062-3706
Unavailable
23062A
BRACKET-COMP,HATCH COVER HINGE
23062-3707
Unavailable
27012
HOOK,HATCH COVER LOCK
27012-3769
Unavailable
27016
LOCK-ASSY,HATCH COVER CAP
27016-3738
Unavailable
27016A
LOCK-ASSY,STORAGE COVER
27016-3739
Unavailable
39145
TRIM-SEAL,FRONT HATCH
39145-3736
Unavailable
39145A
TRIM-SEAL,L=784
39145-3737
Unavailable
39156A
PAD,HANDLE COVER,RH,BOULOGNE
39156-3809-ML
Unavailable
39156C
PAD,HANDLE COVER,LH,BOULOGNE
39156-3810-ML
Unavailable
46102
ROD,CONNECTION
46102-3724
Unavailable
46102A
ROD,HATCH COVER HINGE
46102-3726
Unavailable
56001A
MIRROR-ASSY,LH,BOULOGNE
56001-3707-6Q
Unavailable
56001C
MIRROR-ASSY,RH,BOULOGNE
56001-3708-6Q
Unavailable
92043A
PIN,6X20
92043-3738
Unavailable
92144
SPRING
92144-3731
Unavailable
92160A
DAMPER
92160-3775
Unavailable
92160B
DAMPER,HANDLE COVER
92160-3811
Unavailable
92160C
DAMPER,METER
92160-3816
Unavailable
92160D
DAMPER
92160-3817
Unavailable
92160E
DAMPER
92160-3824
Unavailable
92160F
DAMPER,HANDLE COVER
92160-3825
Unavailable
92160G
DAMPER
92160-3826
Unavailable
92160H
DAMPER
92160-3895
Unavailable
92160I
DAMPER
92160-3898
Unavailable
