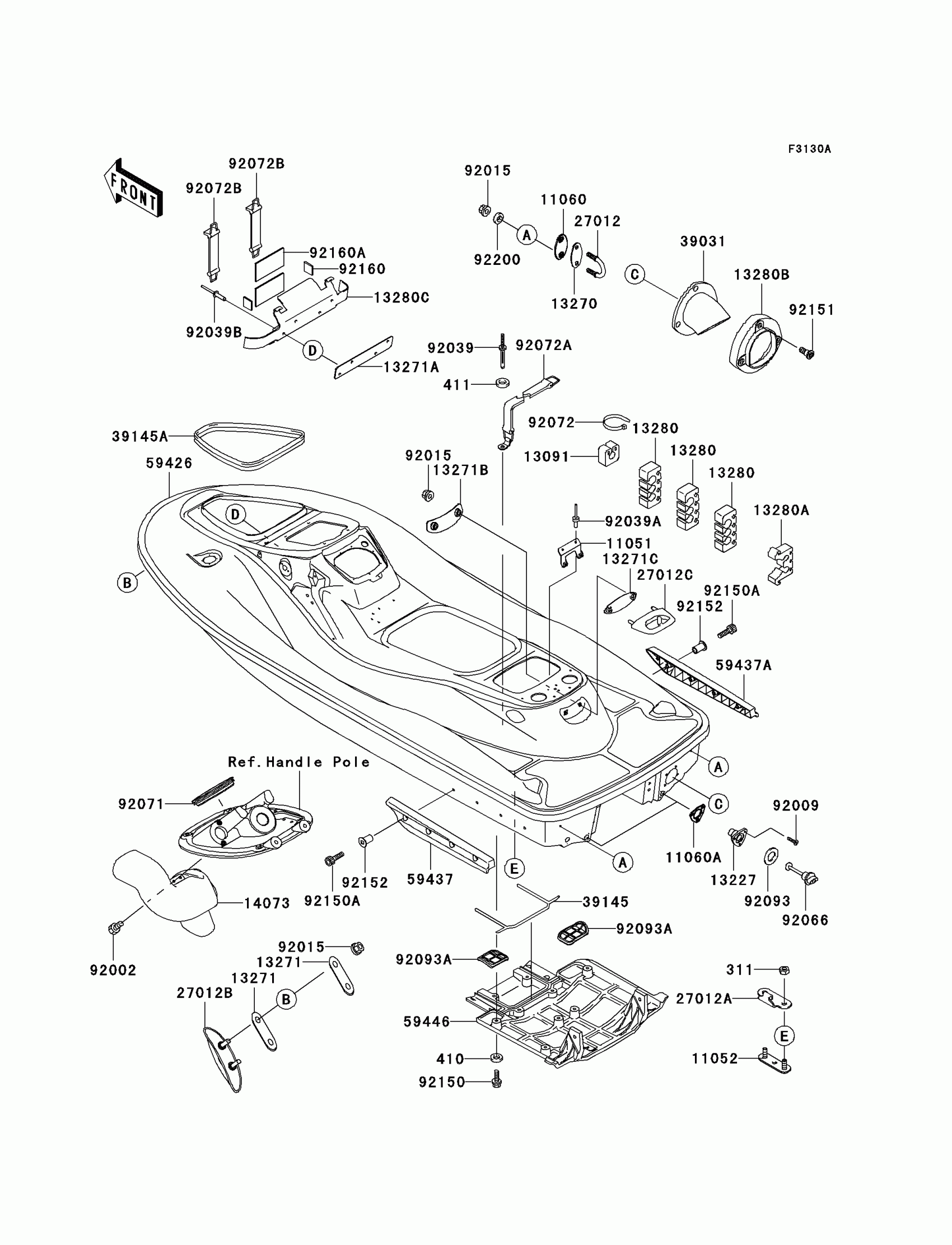

Kawasaki 900 STX Hull(E2) Diagram

#

Description
Price

11051

BRACKET,BREATHER-BILGE

11051-3802

$11.97

11052

BRACKET,RR DUCT

11052-3712

$8.80

11060

GASKET,U HOOK,RR

11060-3800

$5.41

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13091

HOLDER

13091-3780

$8.54

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.08

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13271A

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

13271B

PLATE,REAR TOWING HOOK

13271-3859

Unavailable

13271C

PLATE

13271-3889

$11.44

13280

HOLDER

13280-3703

$8.71

13280A

HOLDER,FUEL FILTER

13280-3705

$9.47

13280B

HOLDER,TAIL PIPE CAP

13280-3715

$15.51

13280C

HOLDER,FIRE EXTINGUISHER

13280-3740

$53.38

14073

DUCT

14073-3801

$46.22

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3816

$8.93

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$39.37

27012C

HOOK,REAR TOWING,F.BLACK

27012-3836-6Z

$127.47

39031

CAP-END,TAIL PIPE

39031-3703

$32.35

39145

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.81

39145A

TRIM-SEAL,L=1412

39145-3787

$111.39

59426

HULL-COMP,G.BLACK

59426-3948-650

$3,560.94

59437

STABILIZER,LH,F.BLACK

59437-3735-6Z

Unavailable

59437A

STABILIZER,RH,F.BLACK

59437-3736-6Z

Unavailable

59446

COVER-JET PUMP

59446-3758

Unavailable

92002

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92039

RIVET

92039-3741

$1.23

92039A

RIVET

92039-3755

$5.71

92039B

RIVET

92039-3783

$6.15

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.20

92071

GROMMET

92071-3812

$16.97

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,314X18

92072-3814

$16.78

92072B

BAND,TOOL CASE

92072-3859

$14.10

92093

SEAL

92093-3720

$2.75

92093A

SEAL

92093-3765

$13.53

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

411

WASHER-PLAIN,5MM

411S0500

$0.78

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X30

92150-3822

$3.29

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

$12.00

92152

COLLAR

92152-3715

$6.39

92160

DAMPER,25X25

92160-3864

$2.66

92160A

DAMPER

92160-3913

$5.02

92200

WASHER

92200-3779

$4.66
