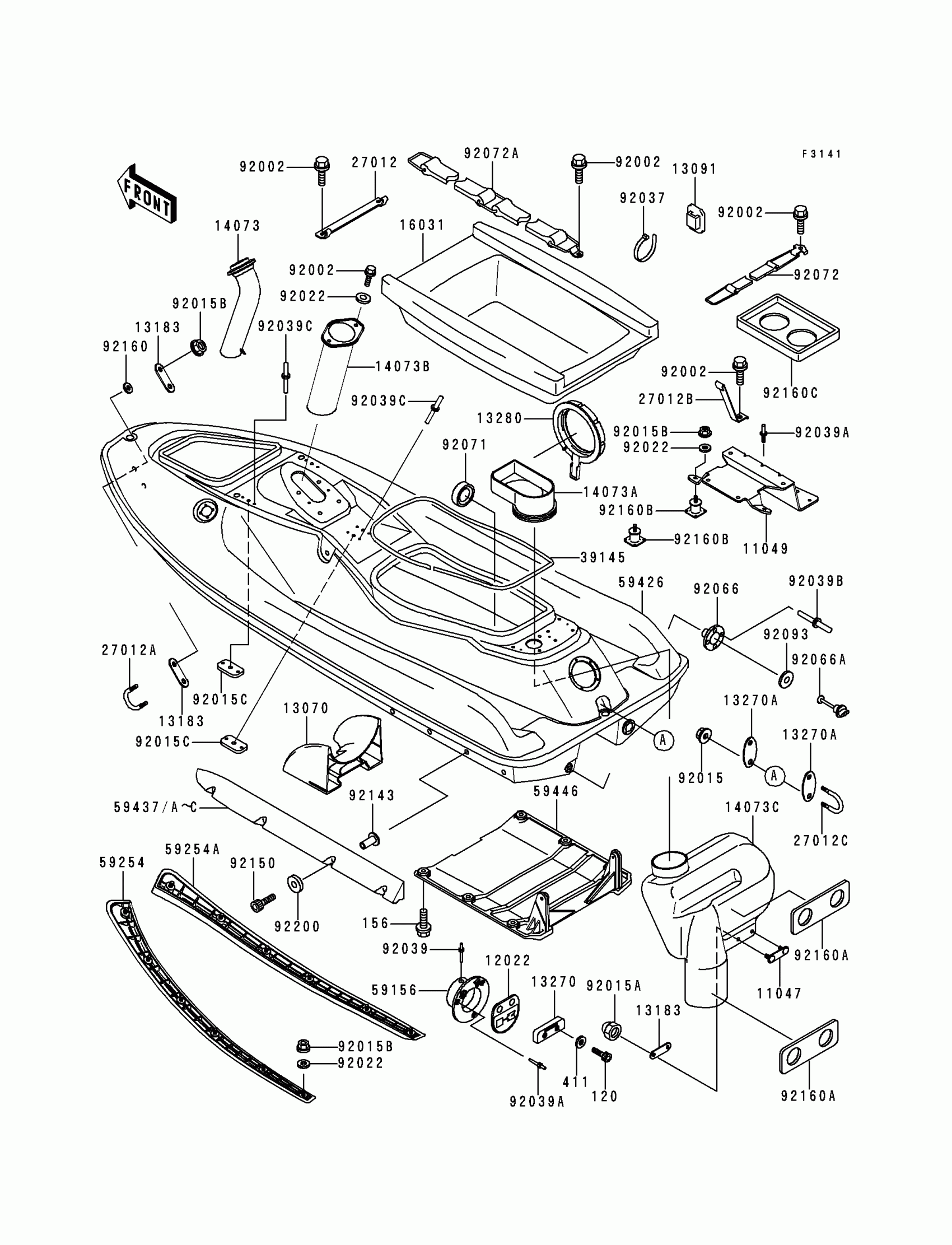

Kawasaki 900 STX Hull Diagram

#

Description
Price

11047

BRACKET,RR DUCT

11047-3774

Unavailable

11049

BRACKET

11049-3730

Unavailable

12022

VALVE-REED

12022-3706

$31.76

13070

GUIDE,INTAKE

13070-3722

Unavailable

13091

HOLDER,BAND

13091-3764

$5.17

13183

PLATE

13183-3809

$7.34

13270

PLATE

13270-3785

$8.16

13270A

PLATE

13270-3860

$8.38

13280

HOLDER

13280-3702

Unavailable

14073

DUCT,FR

14073-3741

Unavailable

14073A

DUCT,RR,INNER

14073-3743

Unavailable

14073B

DUCT,FR

14073-3746

Unavailable

14073C

DUCT,RR,UPPER

14073-3756

Unavailable

16031

FLOAT

16031-3815

Unavailable

27012

HOOK,BOW EYE

27012-3766

$20.79

27012A

HOOK

27012-3776

$38.41

27012B

HOOK

27012-3789

Unavailable

27012C

HOOK

27012-3797

$32.29

39145

TRIM-SEAL,L=2170

39145-3741

Unavailable

59156

PIPE-TAIL

59156-3711

Unavailable

59254

DEFLECTOR,LH

59254-3702

$57.47

59254A

DEFLECTOR,RH

59254-3703

Unavailable

59426

HULL-COMP,J.WHITE

59426-3861-8C

$2,964.08

59437A

STABILIZER,LH,BOULOGNE

59437-3706-6Q

Unavailable

59437C

STABILIZER,RH,BOULOGNE

59437-3707-6Q

Unavailable

59446

COVER-JET PUMP

59446-3734

$206.95

92002

BOLT,6X16

92002-3728

$4.69

92015

NUT,FLANGED,8MM

92015-3709

$5.05

92015A

NUT,CAP,6MM

92015-3755

$4.99

92015B

NUT,6MM

92015-3767

$4.69

92015C

NUT

92015-3815

Unavailable

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-1173

$3.49

92039

RIVET,4.8MM

92039-3719

$6.22

92039A

RIVET

92039-3721

Unavailable

92039B

RIVET

92039-3757

Unavailable

92039C

RIVET,4X19.5

92039-3764

Unavailable

92066

PLUG,RR,DRAIN

92066-3724

Unavailable

120

BOLT-SOCKET,6X16

120R0616

$3.65

156

BOLT-WP,6X20

156R0620

$3.65

411

WASHER-PLAIN,6MM

411S0600

$2.06

92066A

PLUG,RR,DRAIN

92066-3744

$20.70

92071

GROMMET

92071-3783

Unavailable

92072

BAND,BATTERY

92072-3766

Unavailable

92072A

BAND,FUEL TANK

92072-3772

Unavailable

92093

SEAL

92093-3720

$3.62

92143

COLLAR

92143-3739

Unavailable

92150

BOLT,SOCKET,6X40

92150-3847

$5.59

92160

DAMPER

92160-1011

$4.11

92160A

DAMPER

92160-3722

Unavailable

92160B

DAMPER

92160-3823

Unavailable

92160C

DAMPER

92160-3872

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$3.73
