Description

Price

155

BOLT-WSP-SMALL,8X35

155R0835

$8.19

13107

SHAFT

13107-3740

$8.58

13151

SWITCH-COMP,STOP&START&TRIM

13151-3733

$444.66

39058A

HANDLE-COMP,F.BLACK

39058-3712-6Z

Unavailable

39063

HOUSING-CONTROL

39063-3722

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3719

$111.92

39075

LEVER-THROTTLE

39075-3714

$41.51

39087A

PAD-HANDLE,BOULOGNE

39087-3720-ML

$141.02

46012

HOLDER-HANDLE,UPP

46012-3720

$16.69

46012A

HOLDER-HANDLE,LWR

46012-3722

$249.86

92002

BOLT,6X12

92002-3763

$4.69

92002A

BOLT,8X25

92002-3774

$7.91

92009

SCREW,5X30

92009-3836

$4.18

92009A

SCREW,6X30

92009-3837

$4.69

92033

RING-SNAP

92033-3723

$3.29

92072

BAND,L=201

92072-3778

$1.84

92072A

BAND,TETHER SWITCH

92072-3816

Unavailable

92144

SPRING

92144-3749

$4.26

92190

TUBE,22X24X270

92190-3935

$30.46

92200

WASHER

92200-3738

$3.32

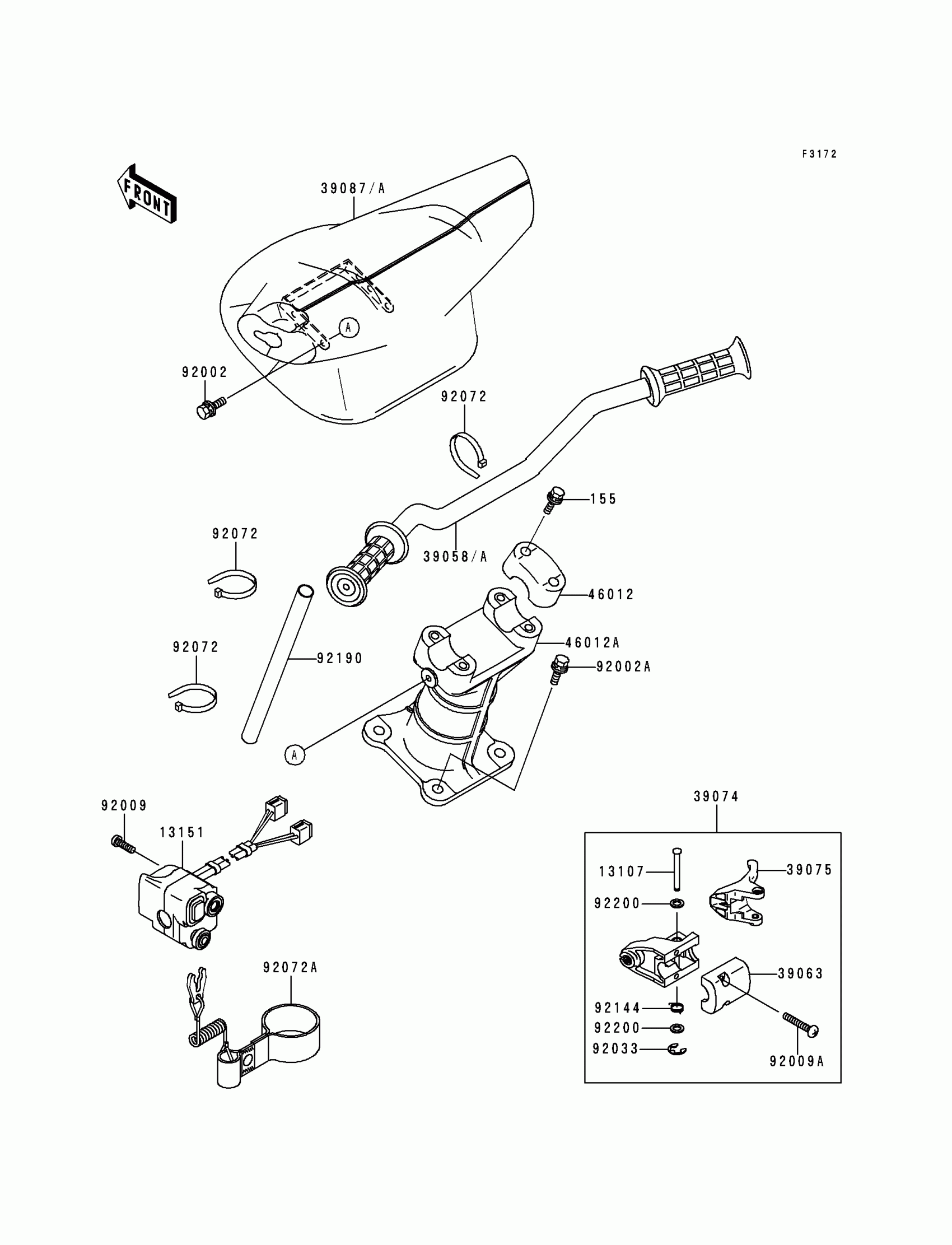

Kawasaki 900 STX Handlebar Diagram

BOLT-WSP-SMALL,8X35

SHAFT

SWITCH-COMP,STOP&START&TRIM

HANDLE-COMP,F.BLACK

HOUSING-CONTROL

LEVER-ASSY-THROTTLE

LEVER-THROTTLE

PAD-HANDLE,BOULOGNE

HOLDER-HANDLE,UPP

HOLDER-HANDLE,LWR

BOLT,6X12

BOLT,8X25

SCREW,5X30

SCREW,6X30

RING-SNAP

BAND,L=201

BAND,TETHER SWITCH

SPRING

TUBE,22X24X270

WASHER
