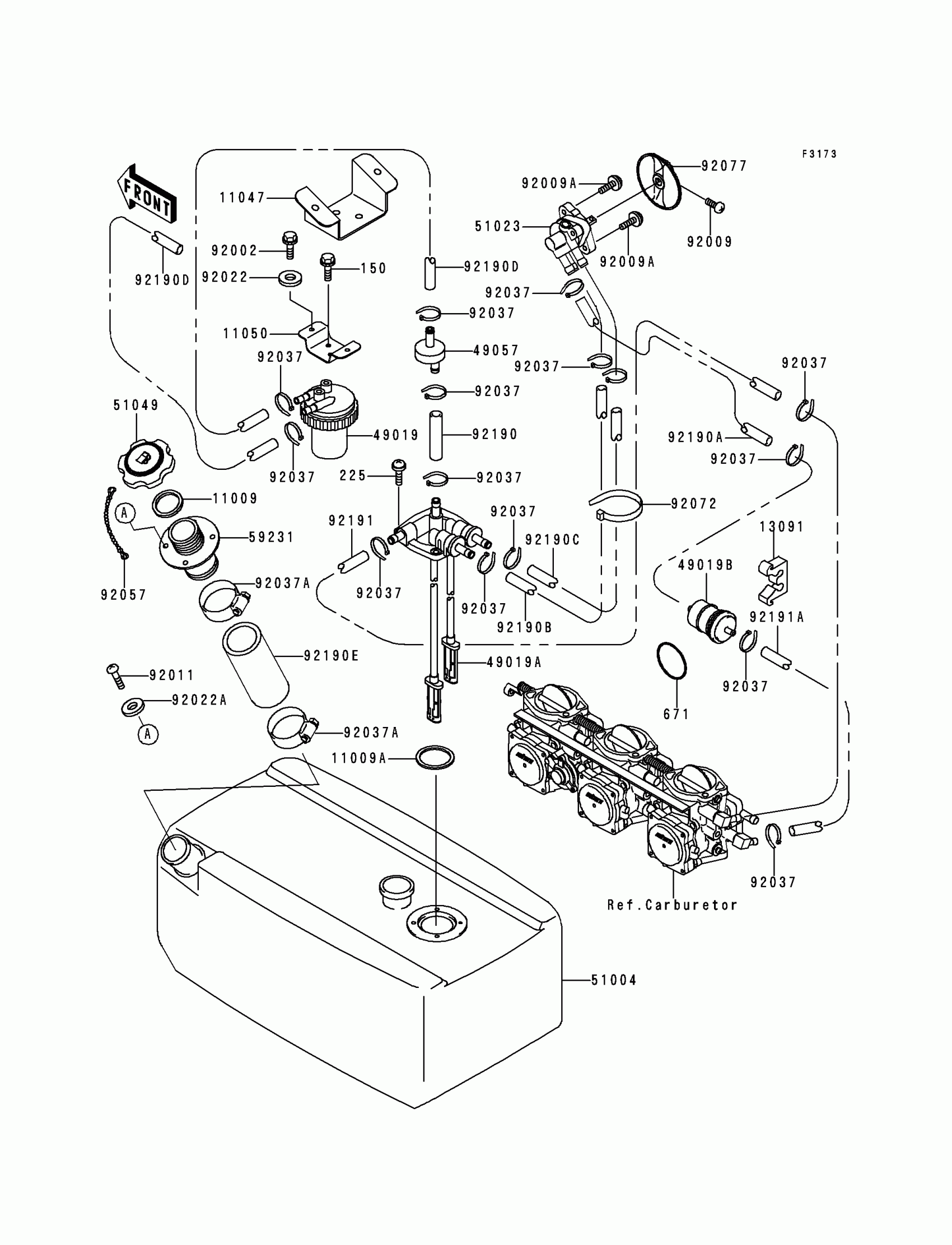

Kawasaki 900 STX Fuel Tank Diagram

#

Description
Price

150

BOLT-WS,6X14

150R0614

$5.96

225

SCREW-PAN-WSP-CROS,5X16

225R0516

$4.99

671

O RING,65MM

671B2565

$8.86

11009

GASKET,TANK CAP

11009-3020

$13.51

11009A

GASKET

11009-3790

Unavailable

11047

BRACKET,FUEL FILTER

11047-3761

Unavailable

11050

BRACKET

11050-3720

Unavailable

13091

HOLDER,FILTER

13091-3795

$9.80

49019

FILTER-FUEL

49019-3708

$59.17

49019A

FILTER-FUEL

49019-3710

$79.30

49019B

FILTER-FUEL

49019-3712

$45.64

49057

VALVE-RELIEF

49057-3001

$64.85

51004

TANK-FUEL

51004-3718

Unavailable

51023

TAP-ASSY,FUEL

51023-3718

$137.47

51049

CAP-TANK,FUEL

51049-3714

$35.51

59231

FILLER,FUEL TANK

59231-3001

$17.77

92002

BOLT,6X20

92002-3755

$4.69

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,5X16

92009-3789

$2.97

92011

SCREW

92011-562

$1.65

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER

92022-563

$1.13

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072

BAND,L=149

92072-031

$5.00

92077

KNOB

92077-3728

$21.30

92190

TUBE,TANK-BREATHER

92190-3799

Unavailable

92190A

TUBE,5.8X10.8X310

92190-3876

Unavailable

92190B

TUBE,"RES",5.8X10.8X420

92190-3889

$22.46

92190C

TUBE,"ON",5.8X10.8X420

92190-3890

$22.46

92190D

TUBE,5.8X10.8X540

92190-3893

Unavailable

92190E

TUBE,FUEL FILLER

92190-3898

Unavailable

92191

TUBE,CARB-TANK(RETURN)

92191-3799

Unavailable

92191A

TUBE,5.8X10.8X160

92191-3816

Unavailable
