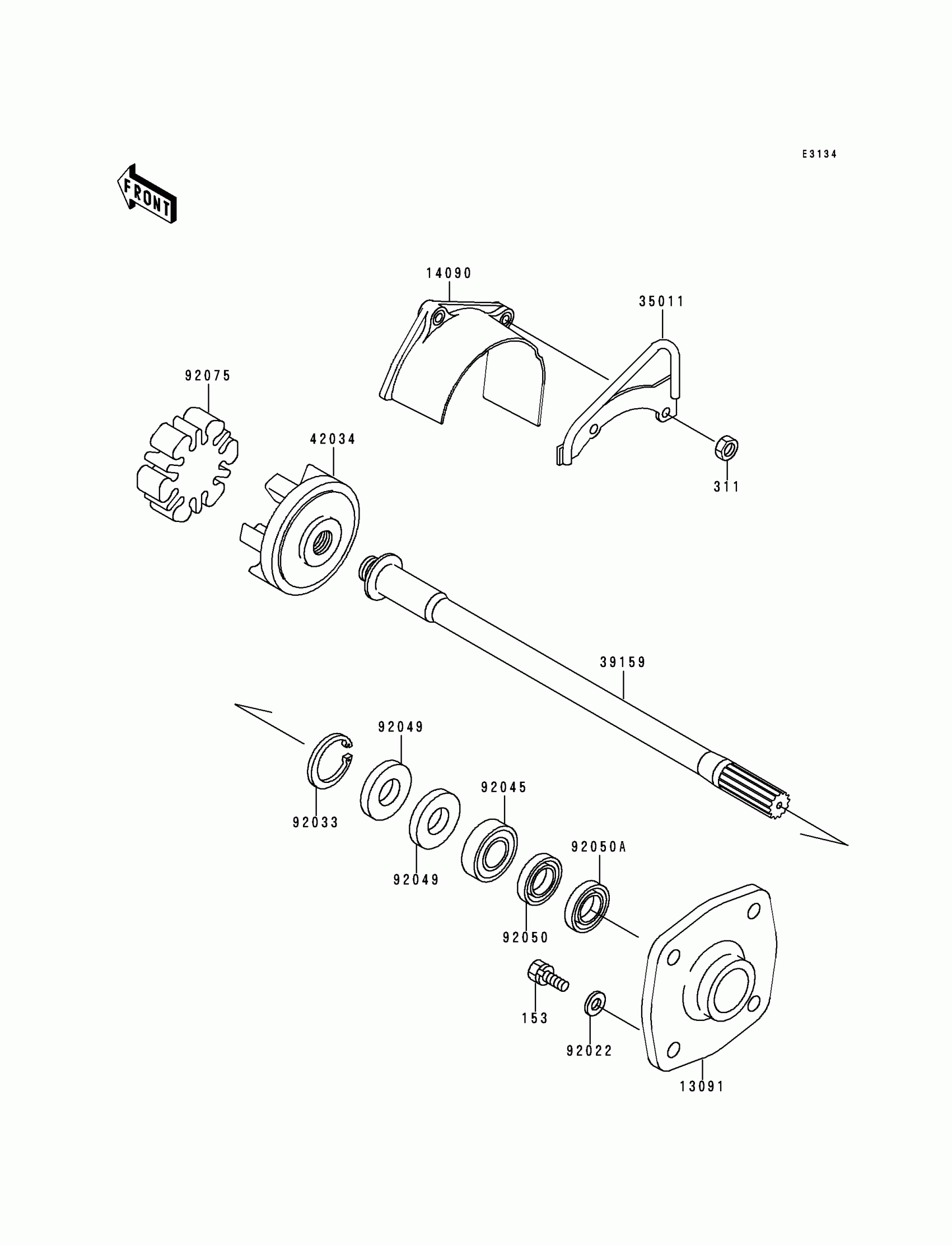

Kawasaki 900 STX Drive Shaft Diagram

Description

Price

153

BOLT-WS-SMALL,8X25

153R0825

$5.88

311

NUT-HEX,6MM

311R0600

$0.70

13091

HOLDER

13091-3730

Unavailable

14090

COVER,COUPLING

14090-3761

$44.51

35011

STAY

35011-3704

$65.31

39159

SHAFT-DRIVE

39159-3727

Unavailable

42034

COUPLING

42034-3707

$53.42

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92033

RING-SNAP,42MM

92033-3713

$17.74

92045

BEARING-BALL,60042RD

92045-3705

$31.76

92049

SEAL-OIL,S620426

92049-3707

$7.91

92050

SEAL-OIL,SCY20368

92050-502

$27.73

92050A

SEAL-OIL,SC20367

92050-503

$24.91

92075

DAMPER,COUPLING

92075-520

$91.03
