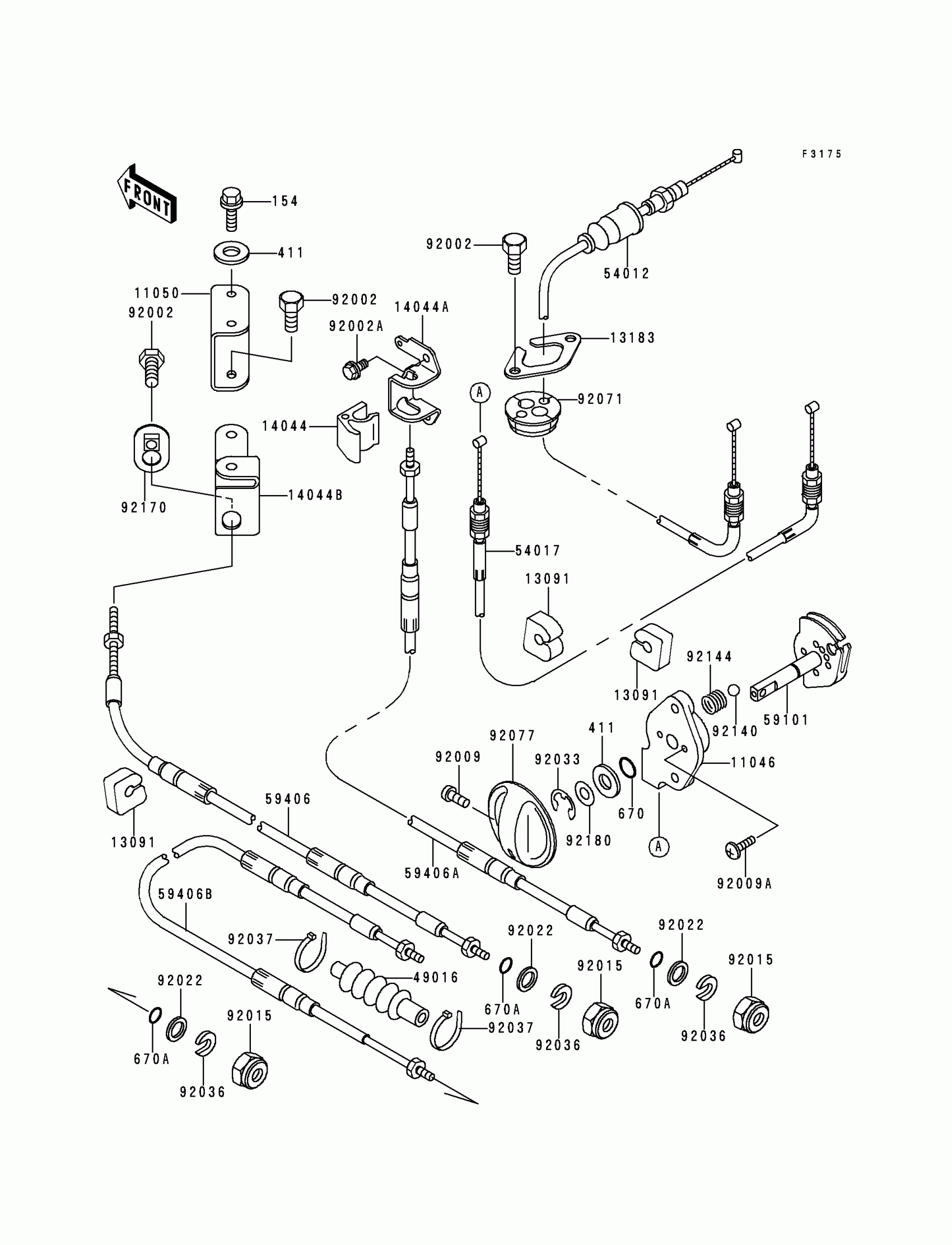

Kawasaki 900 STX Cables Diagram

#

Description
Price

154

BOLT-WP-SMALL,8X30

154R0830

$6.34

411

WASHER-PLAIN,8MM

411S0800

$3.09

670

O RING,8MM

670B1508

$1.29

670A

O RING,11MM

670B2011

$1.28

11046

BRACKET,STARTER CABLE

11046-3712

Unavailable

11050

BRACKET,CABLE HOLDER

11050-3728

Unavailable

13091

HOLDER

13091-3712

$4.65

13183

PLATE

13183-3810

Unavailable

14044

HOLDER-CABLE,STEERING

14044-3714

$13.40

14044A

HOLDER-CABLE,STEERING

14044-3717

$25.61

14044B

HOLDER-CABLE

14044-3732

Unavailable

49016

COVER-SEAL,TILT CABLE

49016-3702

$4.10

54012

CABLE-THROTTLE

54012-3744

Unavailable

54017

CABLE-STARTER

54017-3729

Unavailable

59101

REEL,STARTER CABLE

59101-3704

Unavailable

59406

CABLE-STRG

59406-3736

$167.46

59406A

CABLE-STRG,REVERSE

59406-3764

Unavailable

59406B

CABLE-STRG,TILT

59406-3765

Unavailable

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,5X16

92009-3789

$2.97

92015

NUT,20MM

92015-526

$29.72

92022

WASHER

92022-535

$7.34

92033

RING-SNAP,7MM

92033-3704

$2.94

92036

RING-SNAP

92036-501

Unavailable

92037

CLAMP

92037-1173

$3.49

92071

GROMMET,HARNESS

92071-3790

$9.64

92077

KNOB

92077-3728

$21.30

92140

BALL,3MM

92140-3702

$4.95

92144

SPRING

92144-3712

$2.53

92170

CLAMP,CABLE

92170-3756

Unavailable

92180

SHIM,8.5X18X0.15

92180-3702

Unavailable
