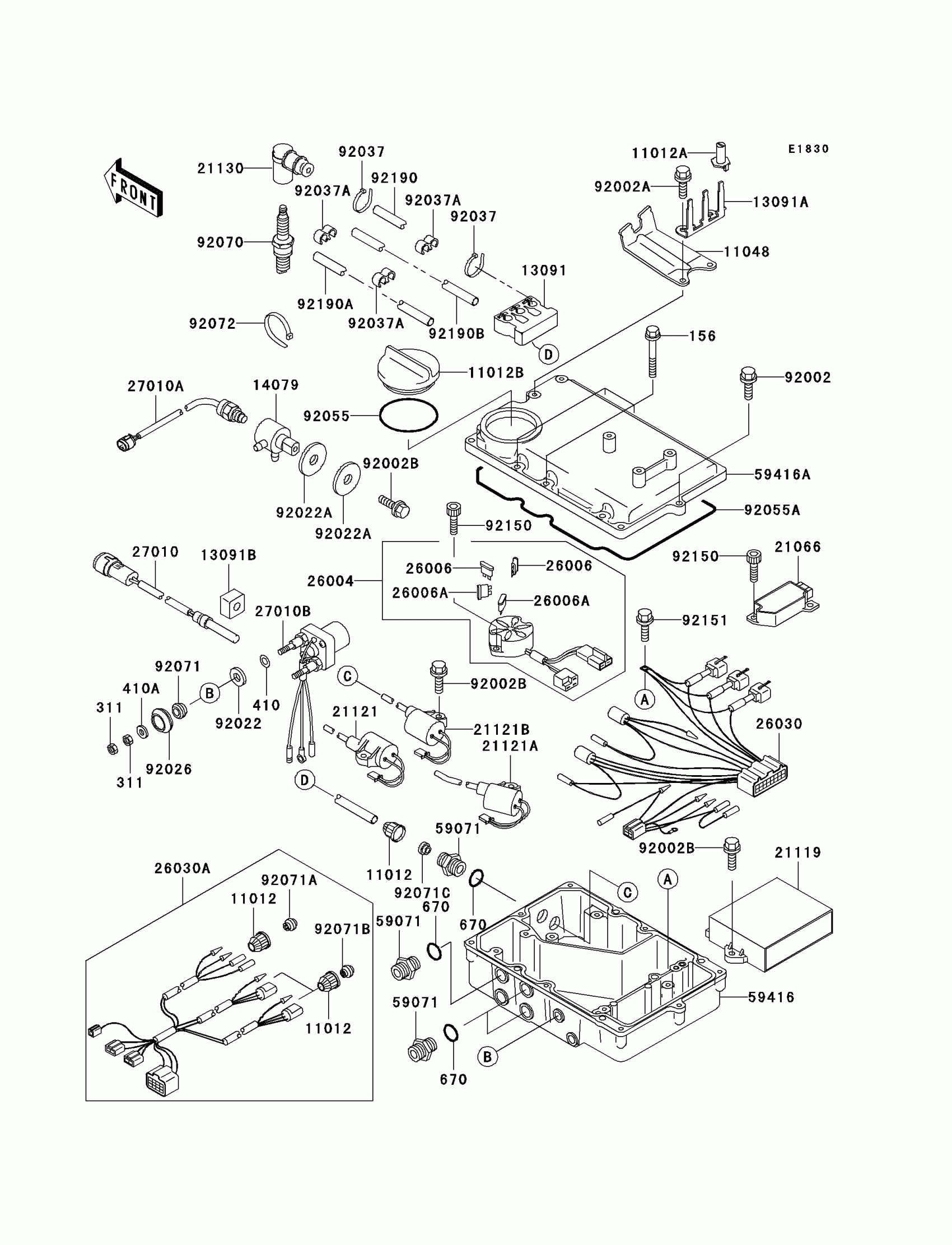

Kawasaki 900 STS Ignition System Diagram

#

Description
Price

11012

CAP

11012-3005

$4.18

11012A

CAP,HOLDER

11012-3768

$7.41

11012B

CAP

11012-3791

Unavailable

11048

BRACKET

11048-3770

$37.15

13091

HOLDER

13091-3785

$17.07

13091A

HOLDER

13091-3800

$12.68

13091B

HOLDER

13091-3804

$5.97

14079

HOLDER-ASSY

14079-3710

$112.79

21066

REGULATOR-VOLTAGE

21066-3712

$223.50

21119

IGNITER

21119-3754

$696.21

21121

COIL-IGNITION,#1

21121-3708

Unavailable

21121A

COIL-IGNITION,#2

21121-3709

Unavailable

21121B

COIL-IGNITION,#3

21121-3710

Unavailable

21130

CAP-SPARK PLUG

21130-3706

$46.17

26004

FUSE-ASSY

26004-3719

$60.92

26006

FUSE,BLADE,10A,RED

26006-1007

$3.78

26006A

FUSE,3A-P

26006-1060

Unavailable

26030

HARNESS,IGNITER

26030-3724

$155.01

26030A

HARNESS,SUB

26030-3740

$159.60

27010

SWITCH

27010-3744

Unavailable

27010A

SWITCH

27010-3759

$120.60

27010B

SWITCH,STARTER RELAY

27010-3760

Unavailable

59071

JOINT

59071-3001

$4.72

59416

CASE-ELECTRIC,LWR

59416-3759

Unavailable

59416A

CASE-ELECTRIC,UPP

59416-3760

$96.38

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X16

92002-3728

$3.24

92002B

BOLT,6X20

92002-3755

$3.57

92022

WASHER

92022-3035

$2.69

92022A

WASHER,6.2X20X2

92022-3714

$3.19

92026

SPACER

92026-3703

$3.57

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,HOSE

92037-1603

$4.42

92055

RING-O

92055-1292

$8.24

92055A

RING-O,ELECTRIC

92055-3738

Unavailable

92070

PLUG-SPARK,BR9ES(NGK),SOLID

92070-1157

$2.80

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-3786

$7.71

92071B

GROMMET

92071-3804

$3.51

92071C

GROMMET

92071-527

$5.13

156

BOLT-WP,6X90

156R0690

$9.08

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

670

O RING,16MM

670B2016

$1.04

92072

BAND,L=201

92072-3778

$1.61

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,6X14

92151-3788

$1.95

92190

TUBE,HIGH TENSION,L=330

92190-3707

Unavailable

92190A

TUBE,8X10X565

92190-3942

$7.32

92190B

TUBE,8X10X425

92190-3943

$5.32
