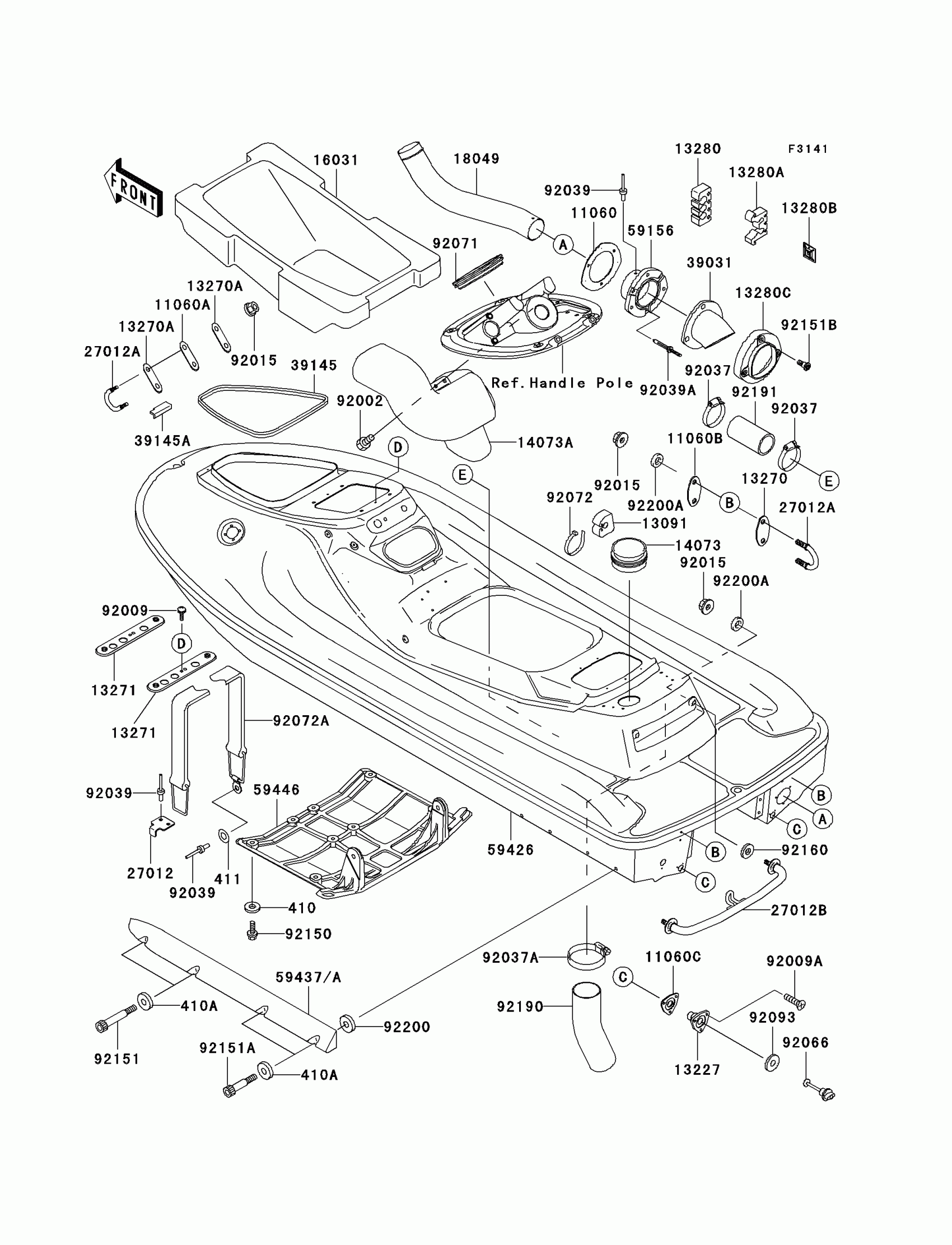

Kawasaki 900 STS Hull Diagram
#
11060
GASKET,TAIL PIPE
11060-3797
$8.53
11060A
GASKET,U HOOK,FR
11060-3799
$6.29
11060B
GASKET,U HOOK,RR
11060-3800
$6.20
11060C
GASKET,DRAIN PLUG
11060-3801
$6.61
13091
HOLDER
13091-3780
$8.76
13227
HOUSING,DRAIN PLUG
13227-3711
Unavailable
13270
PLATE
13270-3860
$8.38
13270A
PLATE
13270-3896
$3.94
13271
PLATE
13271-3794
$13.59
13280
HOLDER
13280-3703
$8.94
13280A
HOLDER,FUEL FILTER
13280-3705
$9.80
13280B
HOLDER
13280-3706
$3.77
13280C
HOLDER,TAIL PIPE CAP
13280-3715
$16.42
14073
DUCT,AIR INTAKE
14073-3762
$16.68
14073A
DUCT,AIR INTAKE
14073-3773
Unavailable
16031
FLOAT
16031-3902
$47.90
18049
PIPE-EXHAUST
18049-3757
Unavailable
27012
HOOK
27012-3787
$6.15
27012A
HOOK
27012-3797
$32.29
27012B
HOOK,TOWING,RR
27012-3800
Unavailable
39031
CAP-END,TAIL PIPE
39031-3703
$31.75
39145
TRIM-SEAL,L=1412
39145-3748
$91.27
39145A
TRIM-SEAL,L=76
39145-3770
$1.83
59156
PIPE-TAIL
59156-3719
$36.64
59426
HULL-COMP,J.WHITE
59426-3893-22
$2,676.47
59437
STABILIZER,LH,F.BLACK
59437-3711-6Z
$72.96
59437A
STABILIZER,RH,F.BLACK
59437-3712-6Z
$72.96
59446
COVER-JET PUMP
59446-3746
Unavailable
92002
BOLT,6X20
92002-3755
$4.69
92009
SCREW,5X16
92009-3789
$2.97
92009A
SCREW,TAPPING,4X16
92009-3849
$1.59
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92037
CLAMP
92037-509
$5.58
92037A
CLAMP
92037-541
$10.24
92039
RIVET,4.8MM
92039-3719
$6.22
92039A
RIVET
92039-3741
$1.63
92066
PLUG,RR,DRAIN
92066-3744
$20.70
92071
GROMMET
92071-3812
$18.18
92072
BAND,L=201
92072-3778
$1.84
92072A
BAND,314X18
92072-3814
$17.91
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
410A
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
411
WASHER-PLAIN,5MM
411S0500
$0.94
92093
SEAL
92093-3720
$3.62
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92151
BOLT,SOCKET,6X40
92151-3719
$6.41
92151A
BOLT,SOCKET,6X52
92151-3720
$6.61
92151B
BOLT,SOCKET,M6,SHOULDER
92151-3746
$12.05
92160
DAMPER
92160-3912
$3.98
92190
TUBE
92190-3963
Unavailable
92191
TUBE,39X51X90
92191-3744
Unavailable
92200
WASHER,6X16X3
92200-3754
$4.67
92200A
WASHER
92200-3779
$5.30
