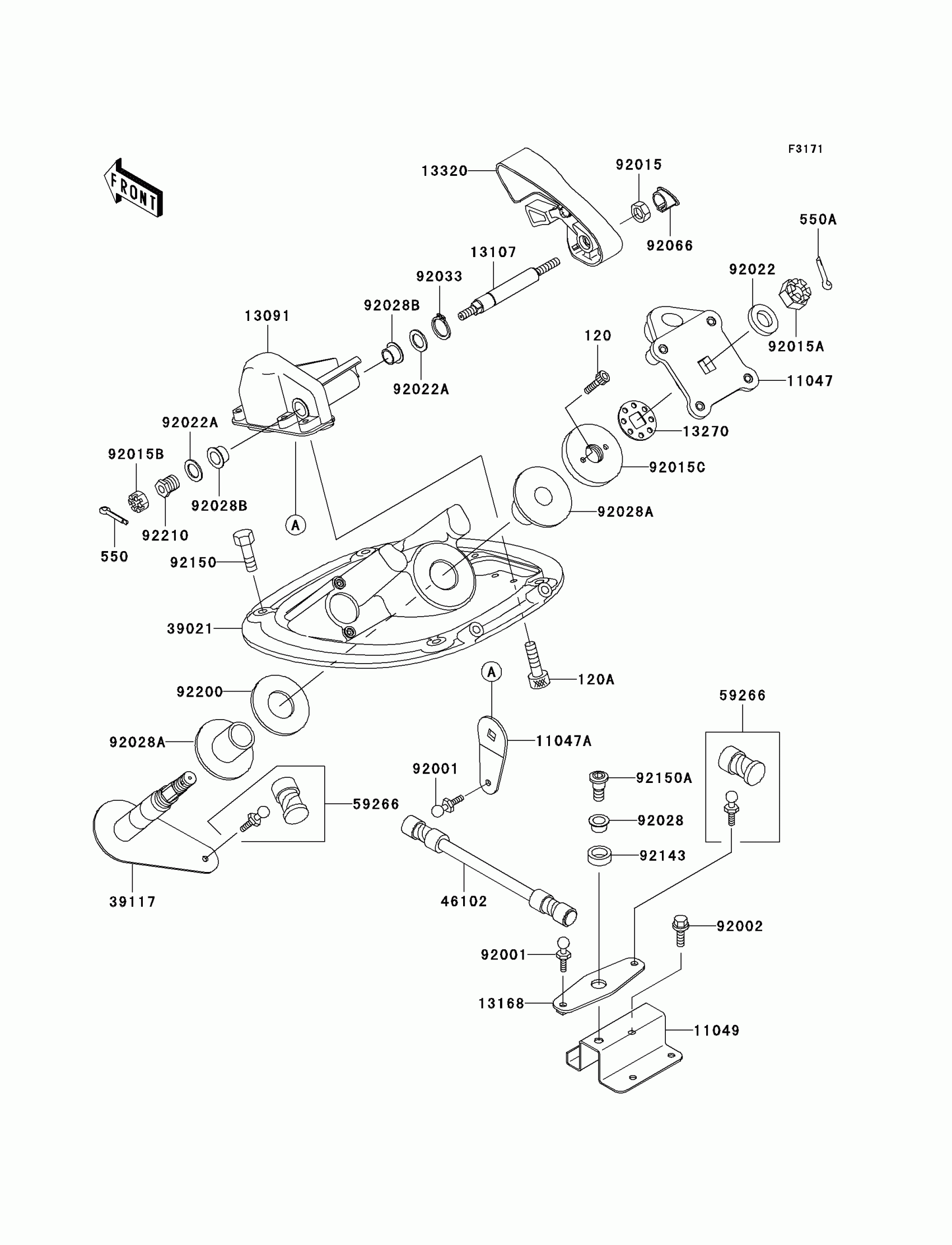

Kawasaki 900 STS Handle Pole Diagram
#
Description
Price
120
BOLT-SOCKET,5X10
120R0510
$3.94
120A
BOLT-SOCKET,6X16
120S0616
$1.23
550
PIN-COTTER
550S2020
$2.76
550A
PIN-COTTER,3X35
550S3035
$4.22
11047
BRACKET,HANDLE HOLDER
11047-3759
$107.88
11047A
BRACKET,STEERING LEVER
11047-3790
$28.64
11049
BRACKET,REVERSE
11049-3762
$40.70
13091
HOLDER
13091-3809
$75.76
13107
SHAFT
13107-3751
$74.99
13168
LEVER,REVERSE
13168-3739
$20.56
13270
PLATE,STEERING NUT
13270-3808
$7.71
13320
LEVER-ASSY,REVERSE
13320-3716
$226.26
39021
BRACKET-HANDLE POLE
39021-3710
$269.01
39117
SHAFT-STRG
39117-3710
$304.06
46102
ROD
46102-3723
$132.79
59266
JOINT-BALL
59266-3707
$66.16
92001
BOLT,BALL,6MM
92001-3703
Unavailable
92002
BOLT,6X20
92002-3755
$4.69
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92015A
NUT,CASTLE,14MM
92015-3805
$35.50
92015B
NUT,CASTLE,8MM
92015-3813
$6.63
92015C
NUT,STEERING,20MM
92015-3854
Unavailable
92022
WASHER,15X34X2.0
92022-3738
$6.57
92022A
WASHER,15.5X24X1.5
92022-3739
$2.69
92028
BUSHING
92028-3740
$8.14
92028A
BUSHING,STEERING
92028-3748
$25.59
92028B
BUSHING
92028-3755
$3.91
92033
RING-SNAP,15MM
92033-3710
$4.65
92066
PLUG,REVERSE LEVER
92066-3761
$18.28
92143
COLLAR,16X24X8
92143-3768
$7.24
92150
BOLT,FLANGED,8X30
92150-3803
$7.34
92150A
BOLT
92150-3827
$18.04
92200
WASHER,32.5X70X2
92200-3718
$16.69
92210
NUT,8MM
92210-3703
$9.59
