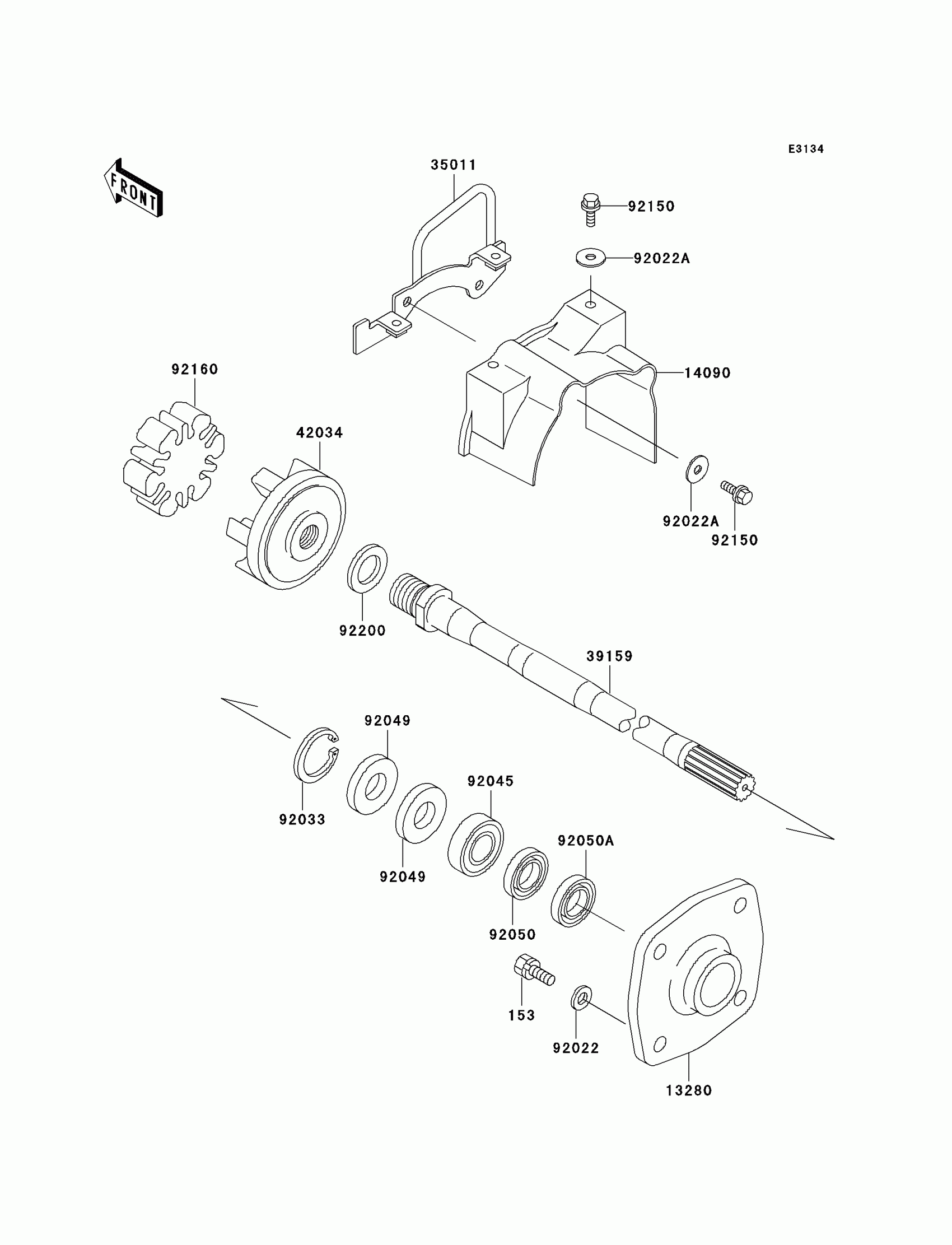

Kawasaki 900 STS Drive Shaft Diagram

Description

Price

153

BOLT-WS-SMALL,8X30

153R0830

$5.93

13280

HOLDER

13280-3730

Unavailable

14090

COVER,COUPLING

14090-3789

$54.40

35011

STAY

35011-3715

$55.04

39159

SHAFT-DRIVE

39159-3732

$553.73

42034

COUPLING

42034-3709

$56.36

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,6.5X20X1.5

92022-3710

$3.65

92033

RING-SNAP,42MM

92033-3713

$17.74

92045

BEARING-BALL,60042RD

92045-3705

$31.76

92049

SEAL-OIL,S620426

92049-3707

$7.91

92050

SEAL-OIL,SCY20368

92050-502

$27.73

92050A

SEAL-OIL,SC20367

92050-503

$24.91

92150

BOLT,6X18

92150-3729

$4.69

92160

DAMPER,COUPLING

92160-3883

$95.37

92200

WASHER,24X32X2.0

92200-3739

$3.92
